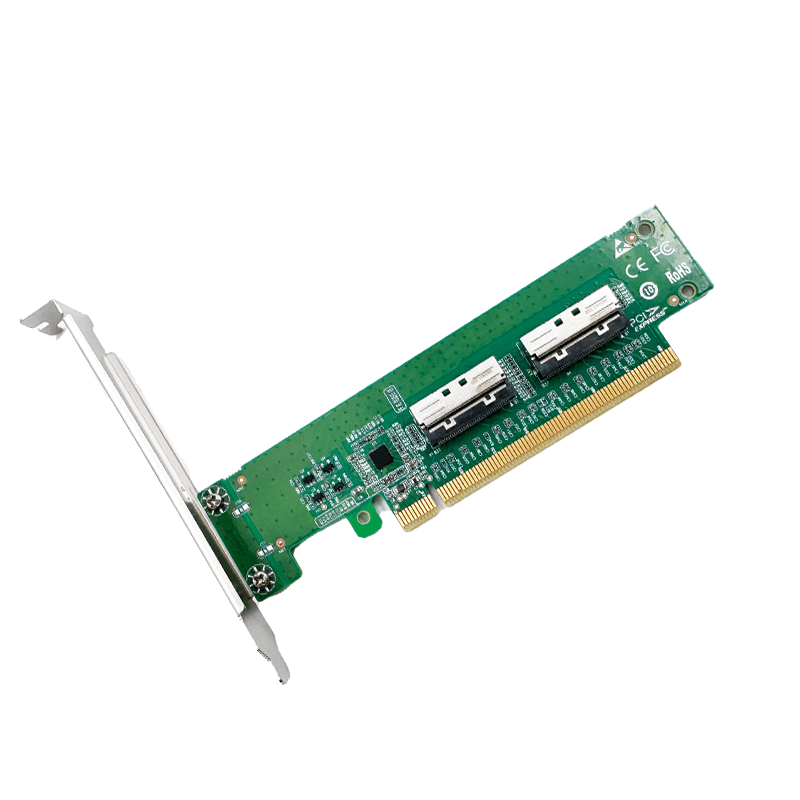

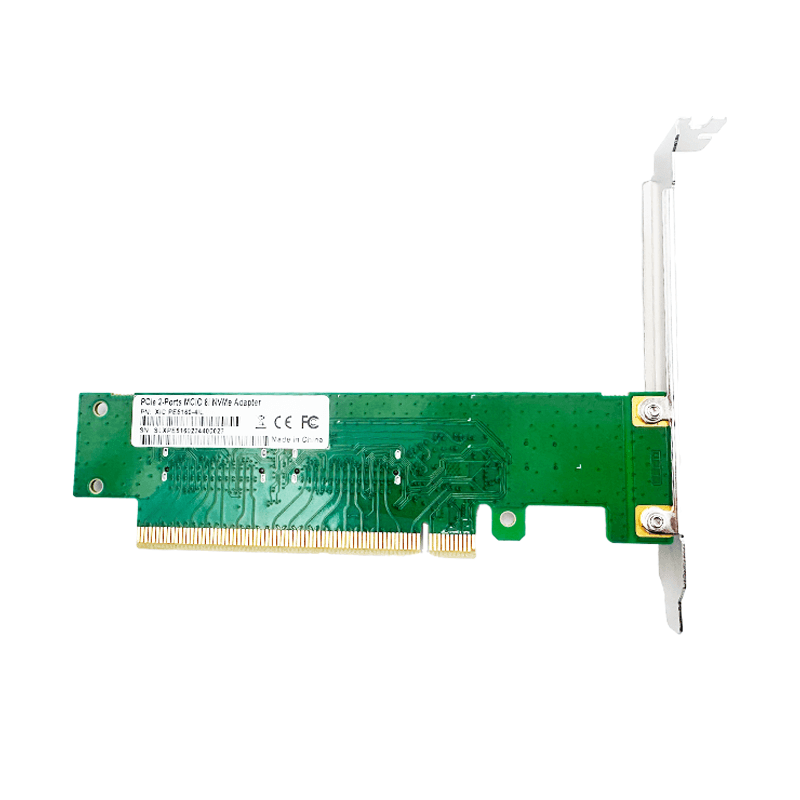

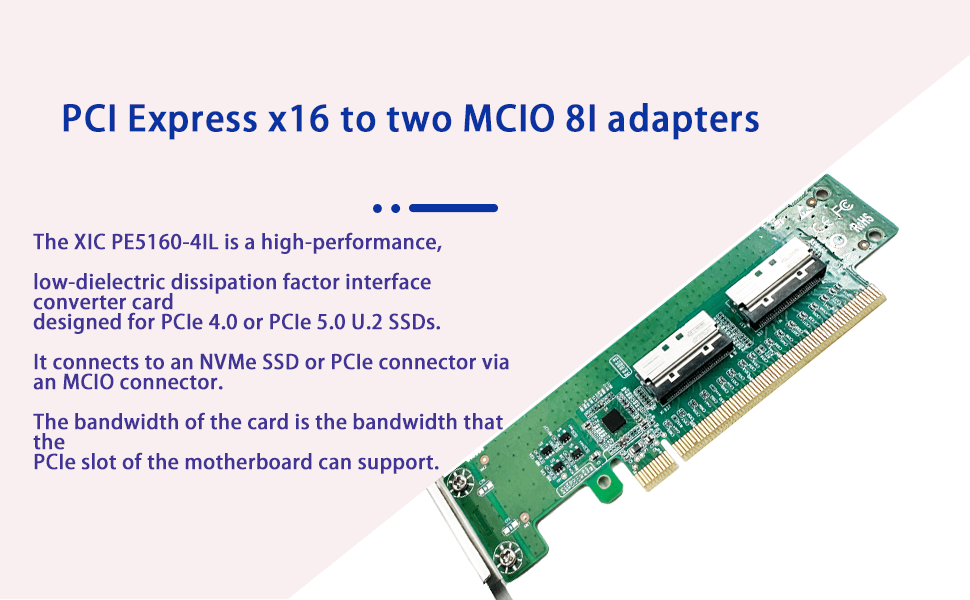

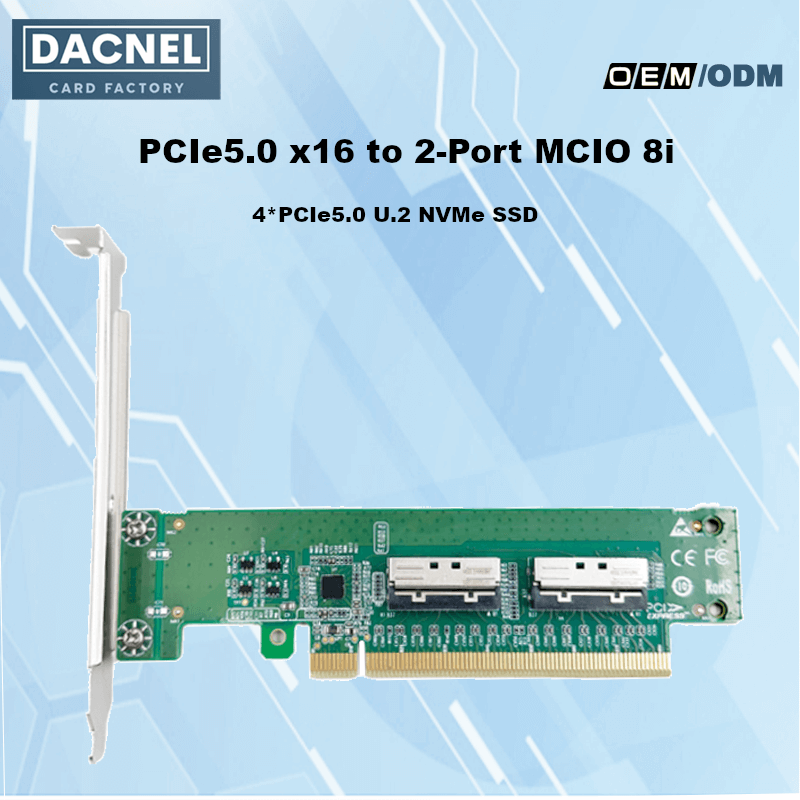

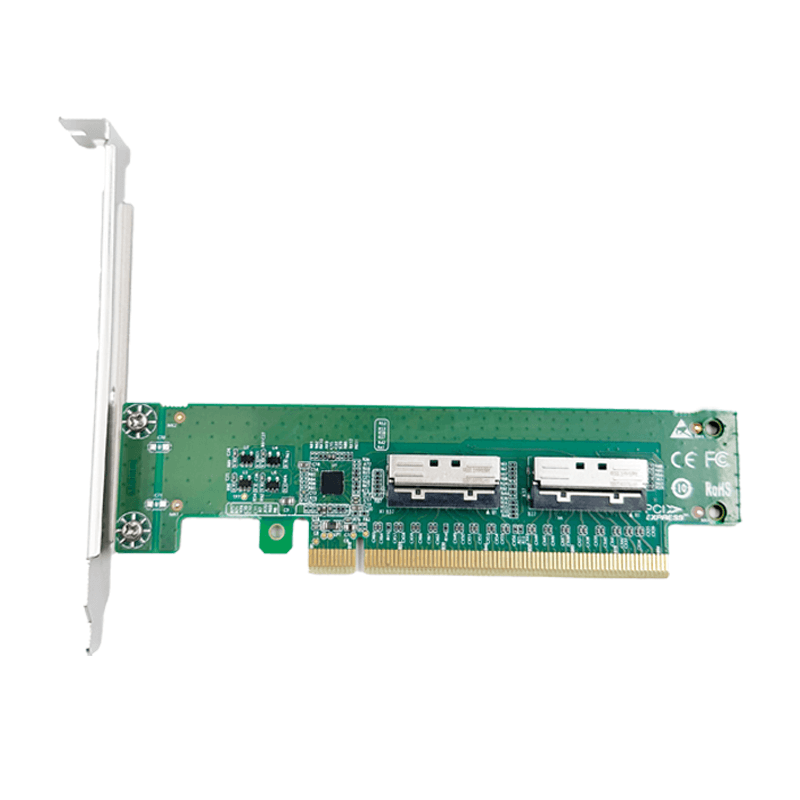

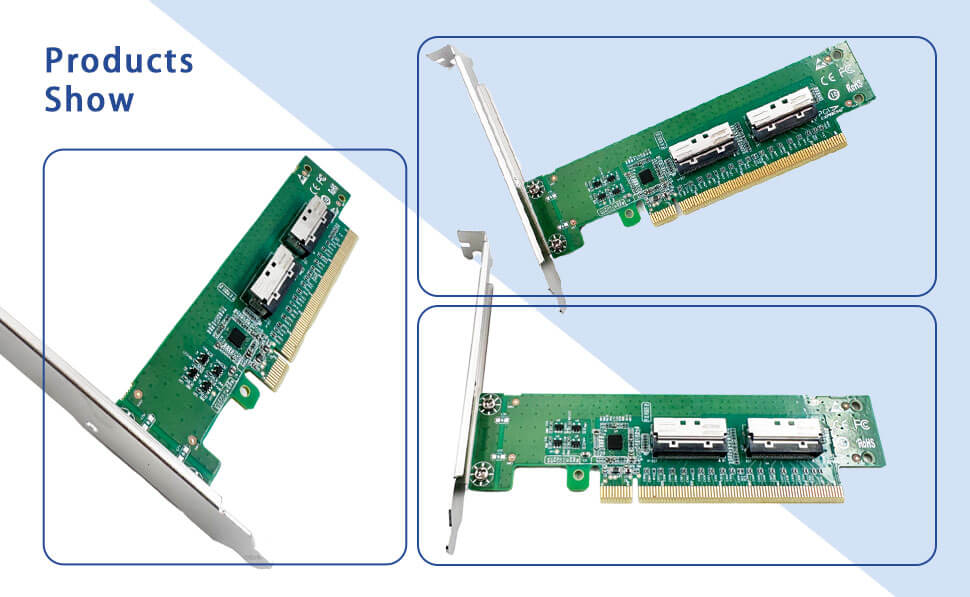

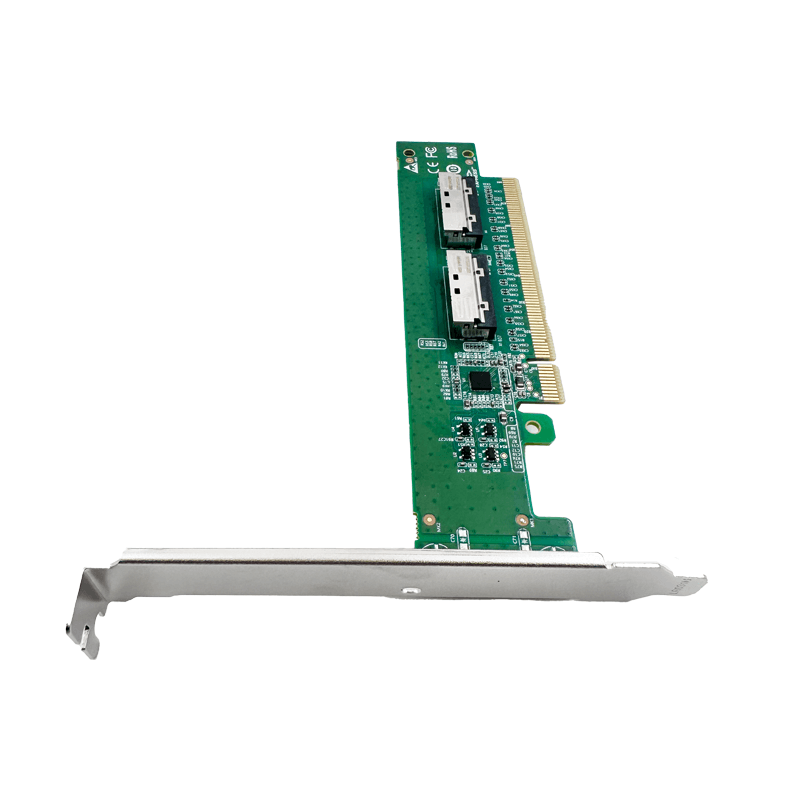

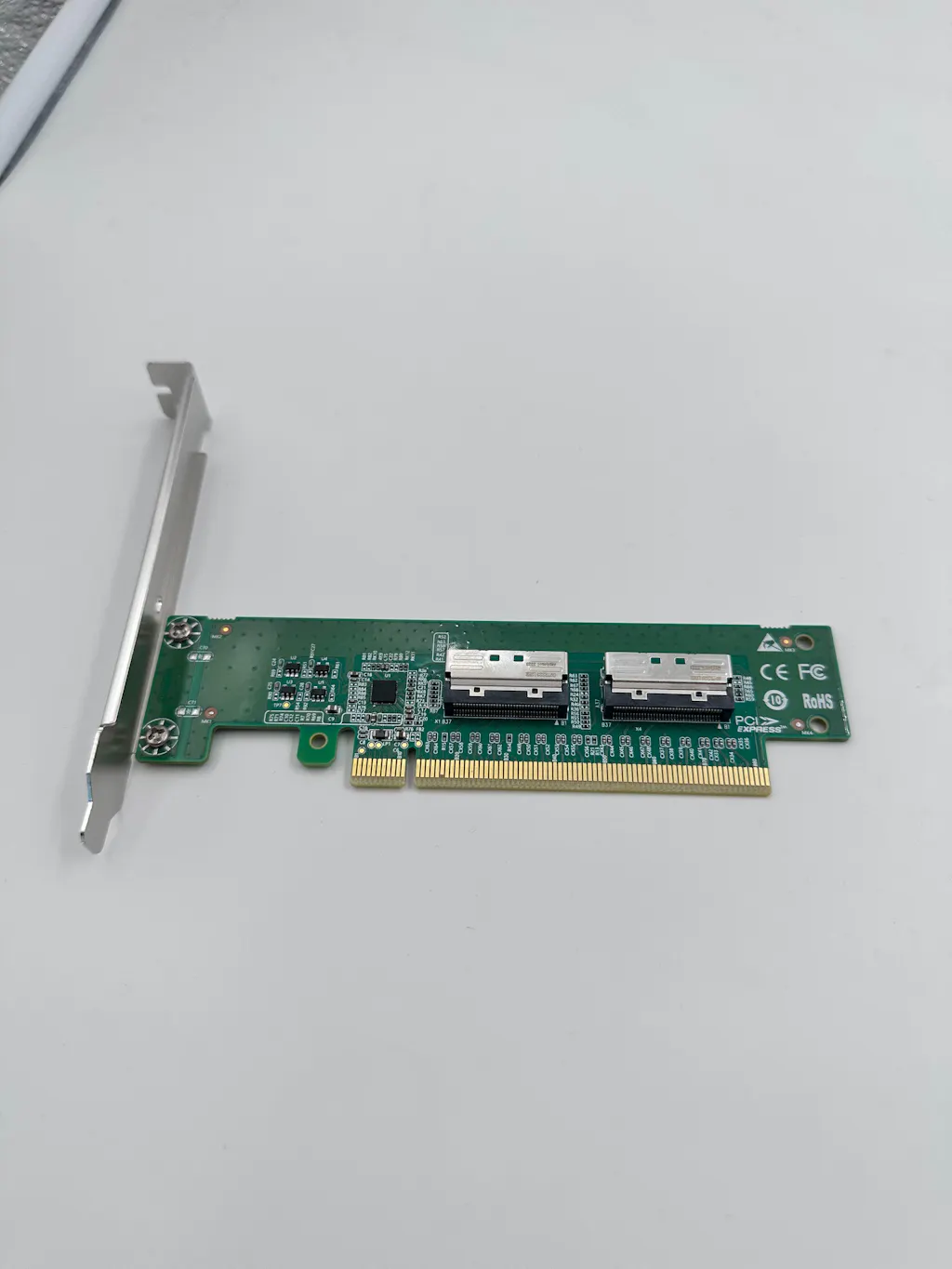

PCIe 5.0 x16 to 2-Port MCIO 8i Slim Adapter- XIC PE5160-4IL
PCIe 5.0 x16 to 2-Port MCIO 8i Slim Adapter- XIC PE5160-4IL
No se pudo cargar la disponibilidad de retiro
XIC PE5160-4IL

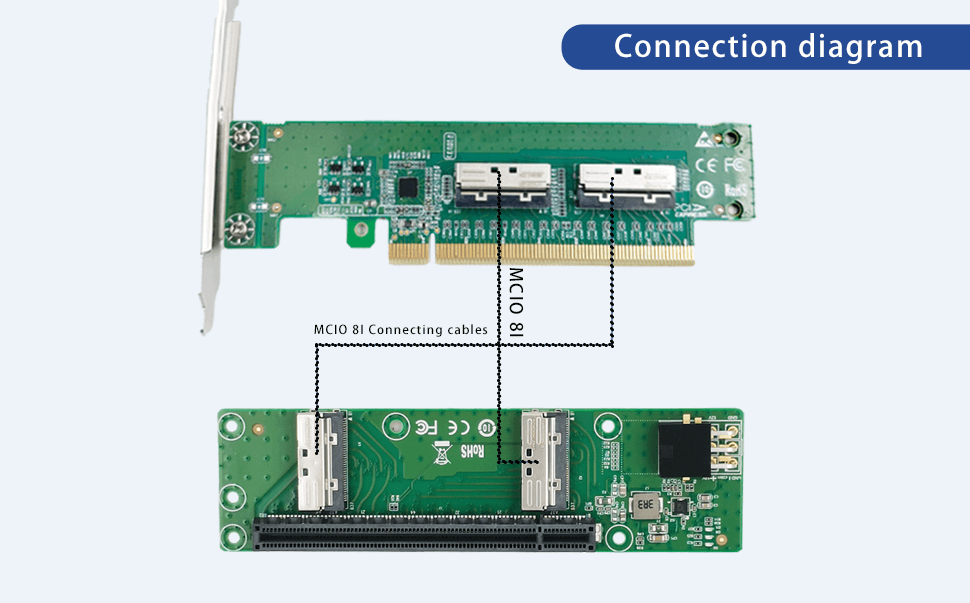

● Interface Type: 2× MCIO 8i
● Support: Up to 4× PCIe 5.0 U.2 NVMe SSD
● Host Bus Type: PCIe 5.0 x16
● Bracket Height: Full height and low profile
● Form Factor: PCIe NVMe adapter card
Download:
Features
● Supports up to 4× PCIe 5.0 U.2 NVMe SSDs
● Uses dual MCIO 8i (SFF-9402) high-speed interfaces
● PCIe 5.0 x16 host bandwidth
● Requires motherboard and CPU PCIe bifurcation support
● Supports x16 to 2× x8 or 4× x4 lane splitting
● Direct PCIe pass-through architecture (no RAID)
● Designed for high-performance NVMe storage expansion
● Backward compatible with PCIe Gen4 / Gen3 platforms
Technical Parameters
| Item | Specification |
|---|---|
| Product Model | XIC PE5160-4IL |
| Product Type | PCIe NVMe Adapter Card |
| Host Interface | PCIe 5.0 x16 |

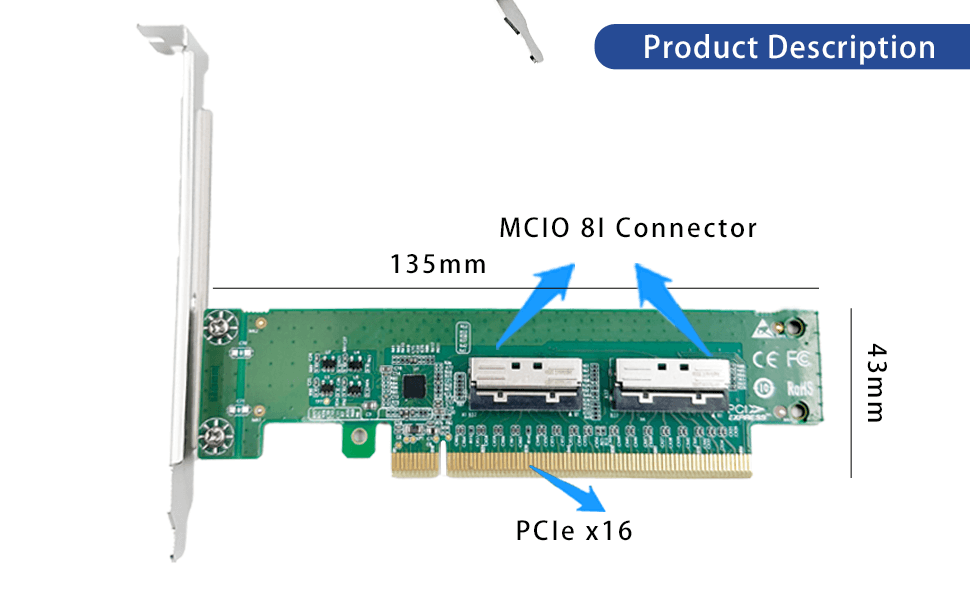

| Storage Interface | 2× MCIO 8i (SFF-9402) |
| Supported Drives | Up to 4× U.2 NVMe SSD |
| Protocol | NVMe |
| RAID Support | Not supported |
| Architecture | PCIe lane bifurcation, direct pass-through |
| Bracket Height | Full height and low profile |
| UEFI Support | Yes |
| OS Compatibility | Windows / Linux / VMware / BSD / NAS systems |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
