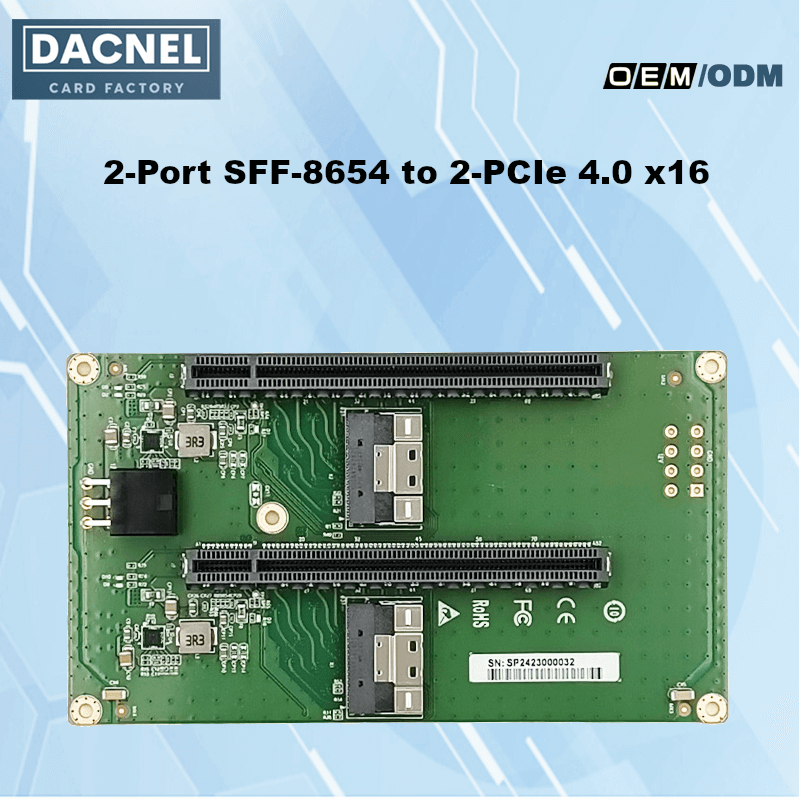

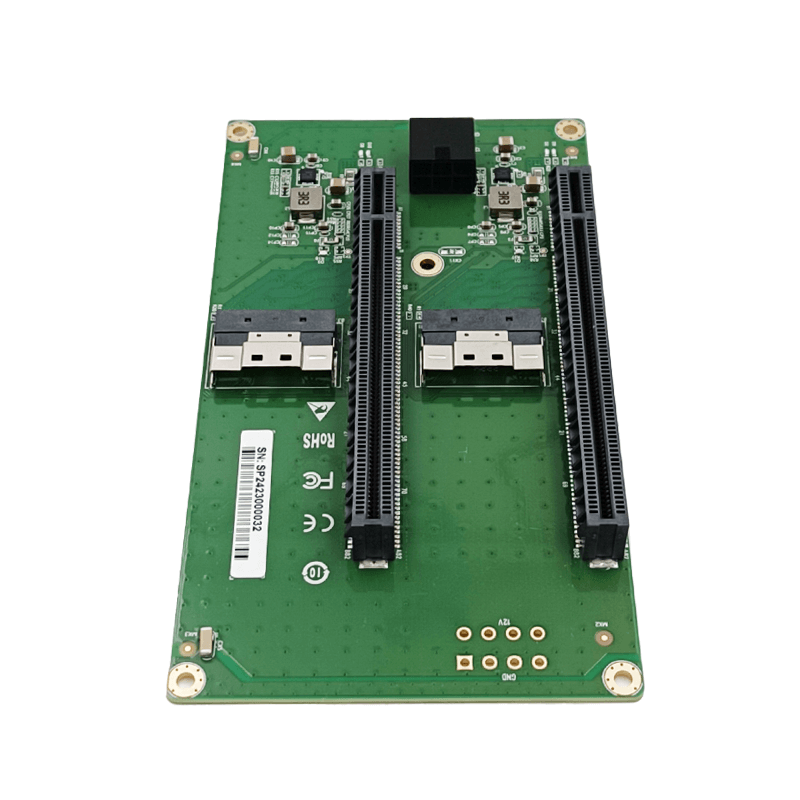

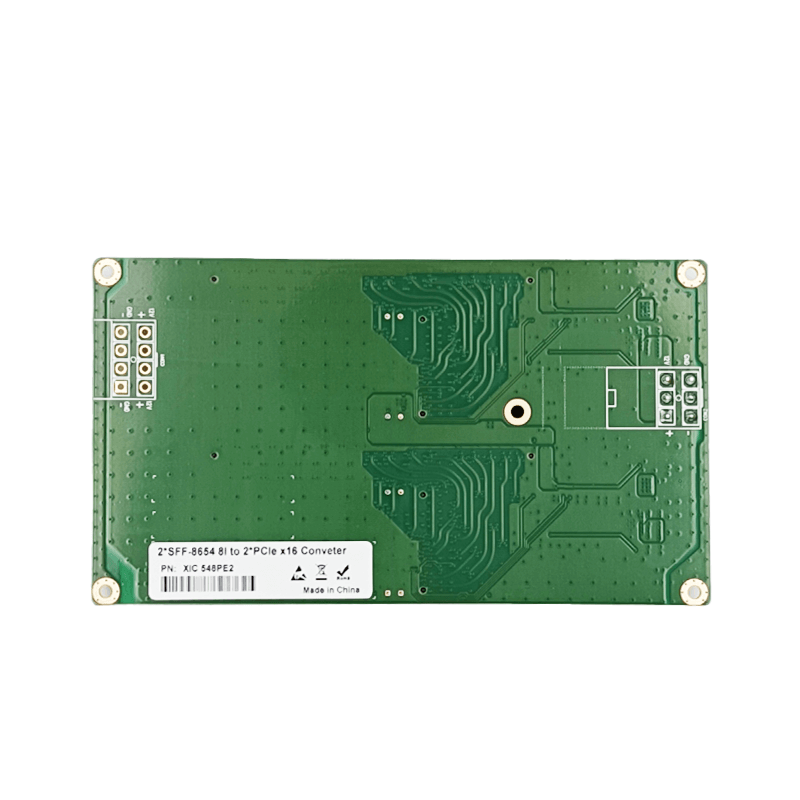

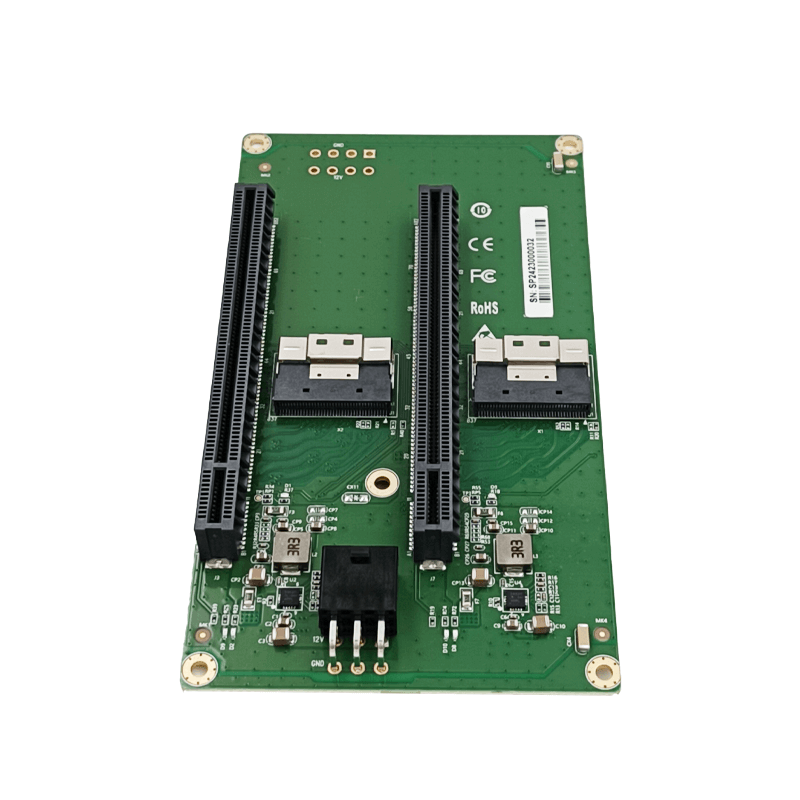

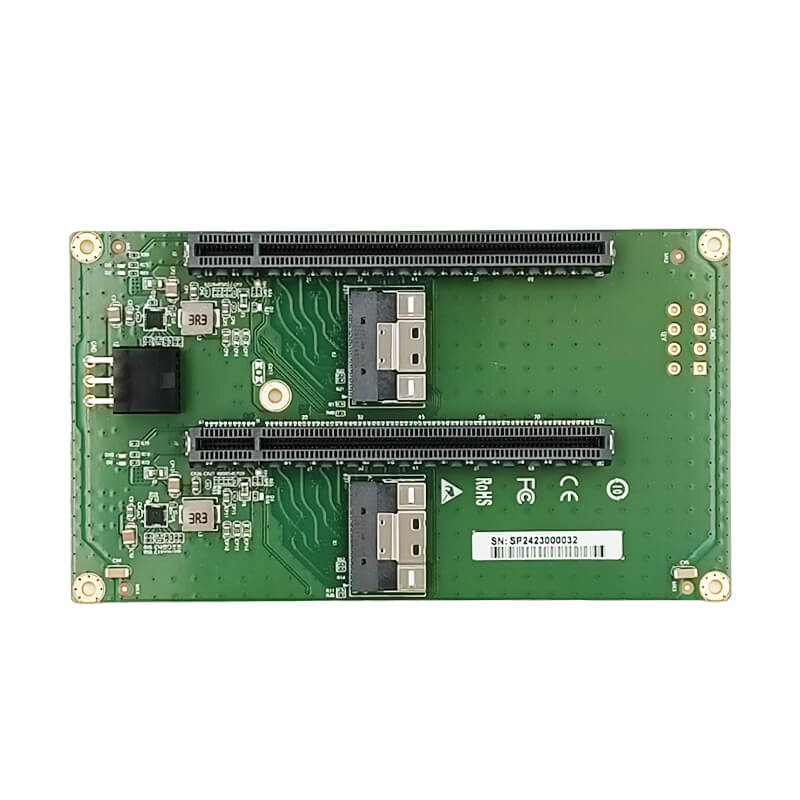

2 Port SFF-8654 to 2 PCIe 4.0 x16 Slot Adapter - XIC 548PE2
2 Port SFF-8654 to 2 PCIe 4.0 x16 Slot Adapter - XIC 548PE2
No se pudo cargar la disponibilidad de retiro

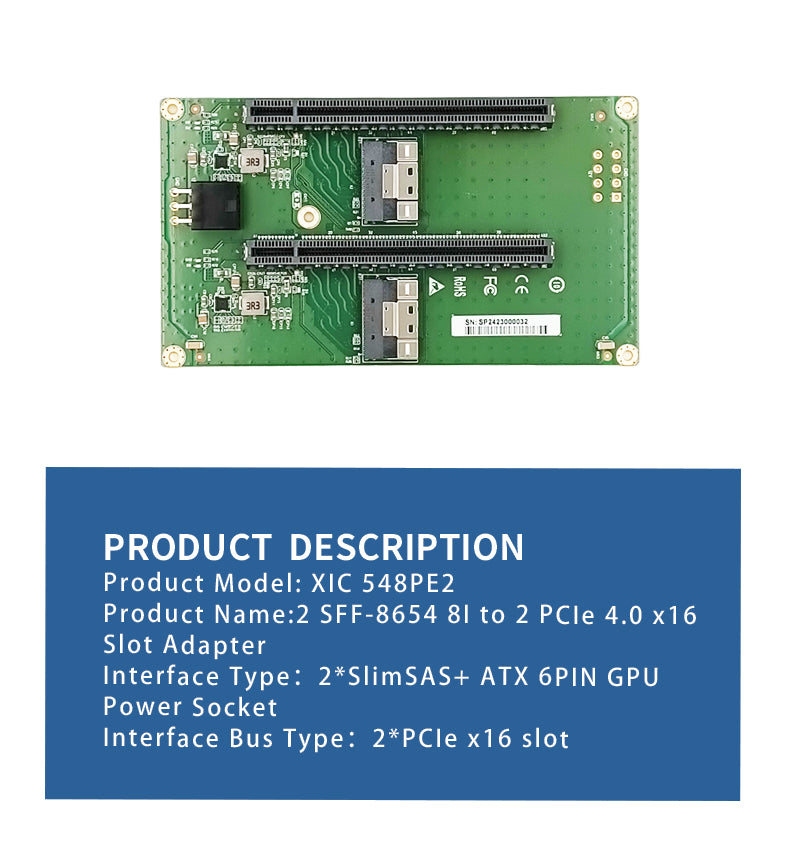

XIC 548PE2
● Interface Type: 2× SFF-8654 + 6PIN Power Socket
● Output Interface: 2× PCIe x16 Slot
● Slot Electrical Bandwidth: PCIe x16 slot (x8 electrical per slot)
● Host Bus Type: PCIe 5.0 / PCIe switch dependent
● Form Factor: Dual PCIe slot expansion adapter card
Download:
Features
● Supports dual SFF-8654 high-speed input connections
● Provides two PCIe x16 mechanical slots
● Each PCIe slot operates at PCIe x8 electrical bandwidth
● Requires PCIe switch / host lane bifurcation support (platform dependent)
● Integrated 6PIN auxiliary power socket for stable power delivery
● Designed for high-speed PCIe expansion and multi-device deployment
● Uses direct PCIe signal routing architecture
● Supports high-bandwidth GPU / accelerator expansion environments
● Built for server and workstation multi-GPU or multi-device systems
● No onboard RAID or processing function (pass-through architecture)

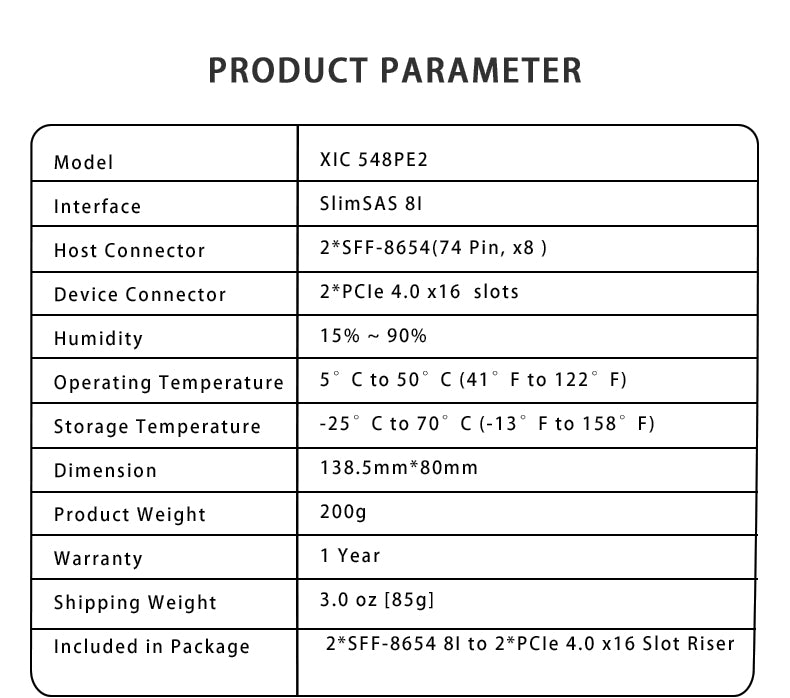

Technical Parameters
| Item | Specification |
|---|---|
| Product Model | XIC 548PE2 |
| Product Type | Dual PCIe Slot Expansion Adapter |
| Input Interface | 2× SFF-8654 |
| Power Interface | 6PIN Power Socket |
| Output Interface | 2× PCIe x16 mechanical slots |
| Electrical Bandwidth | PCIe x8 per slot |
| Slot Architecture | Dual-slot PCIe expansion |
| Signal Architecture | PCIe pass-through / platform dependent |
| Protocol Support | PCIe (platform dependent) |
| Operating Temperature | 5°C to 50°C |
| Storage Temperature | -25°C to 70°C |
Product Highlights
Dual PCIe Slot Expansion Architecture
XIC 548PE2 provides:
2× SFF-8654 → 2× PCIe x16 Slots (x8 electrical each)enabling multi-device PCIe expansion from a single system platform.
