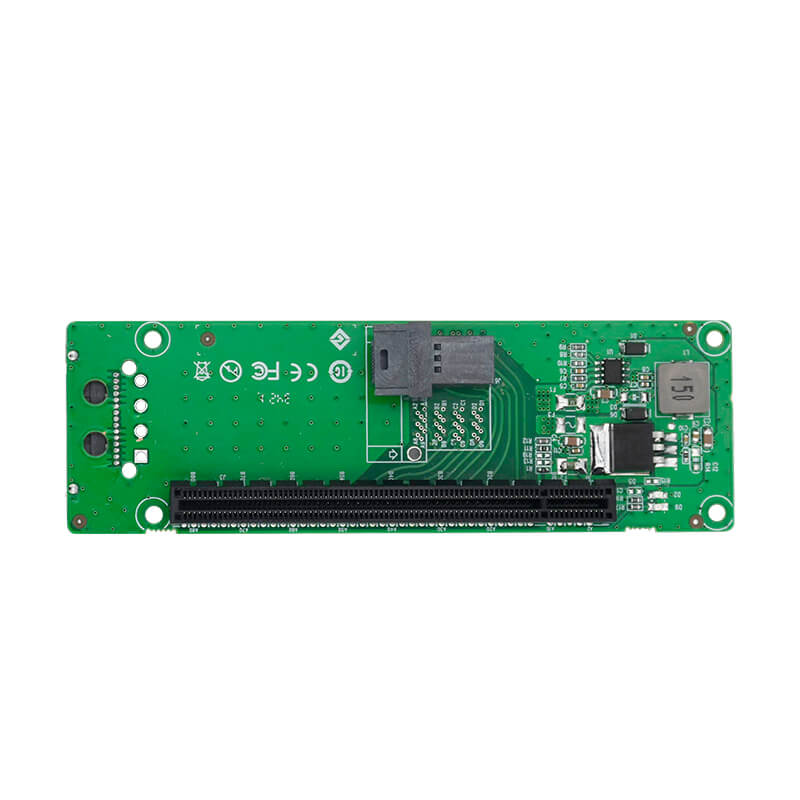

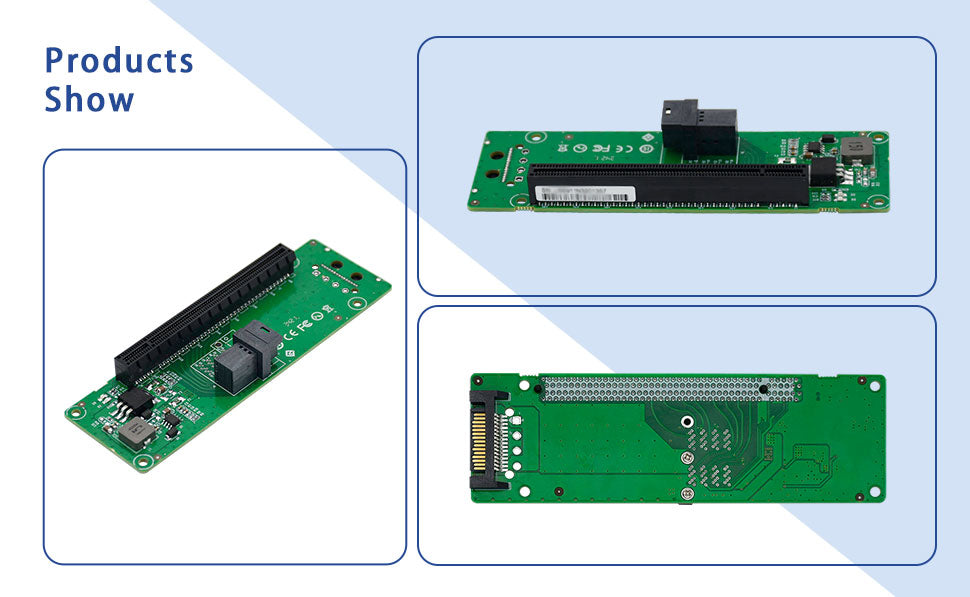

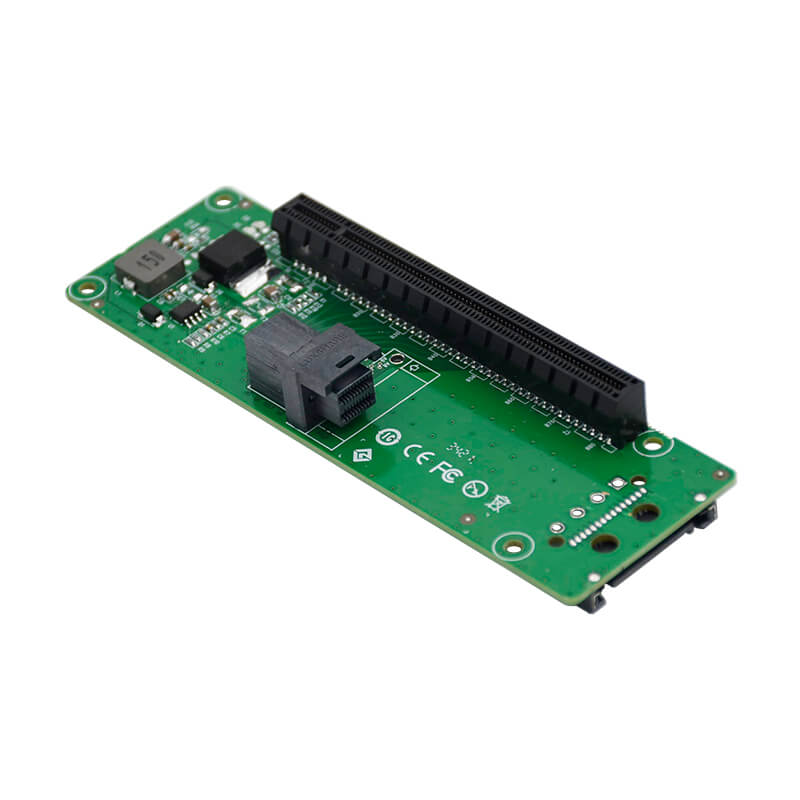

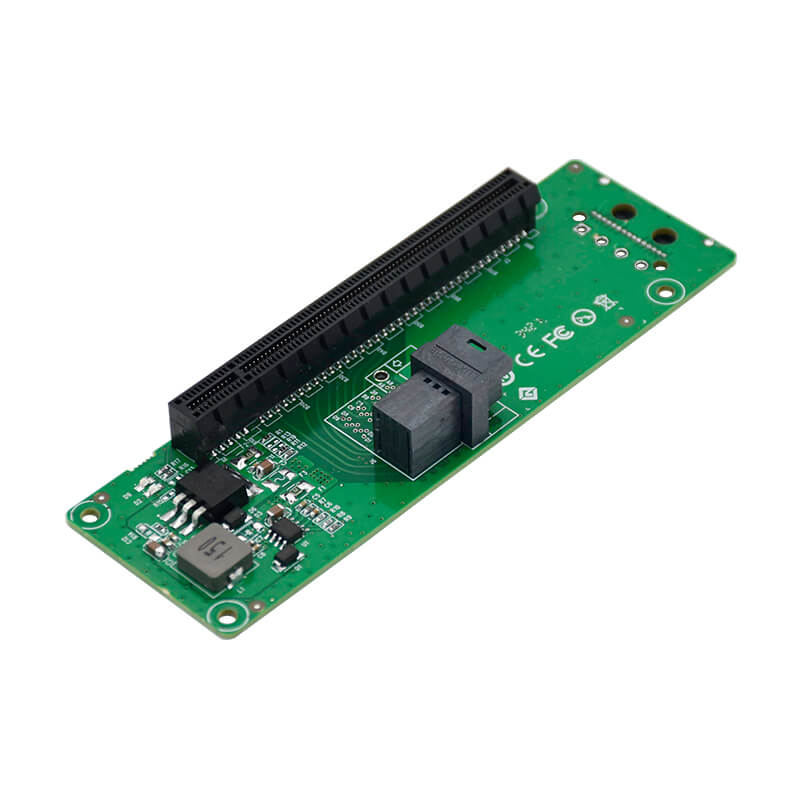

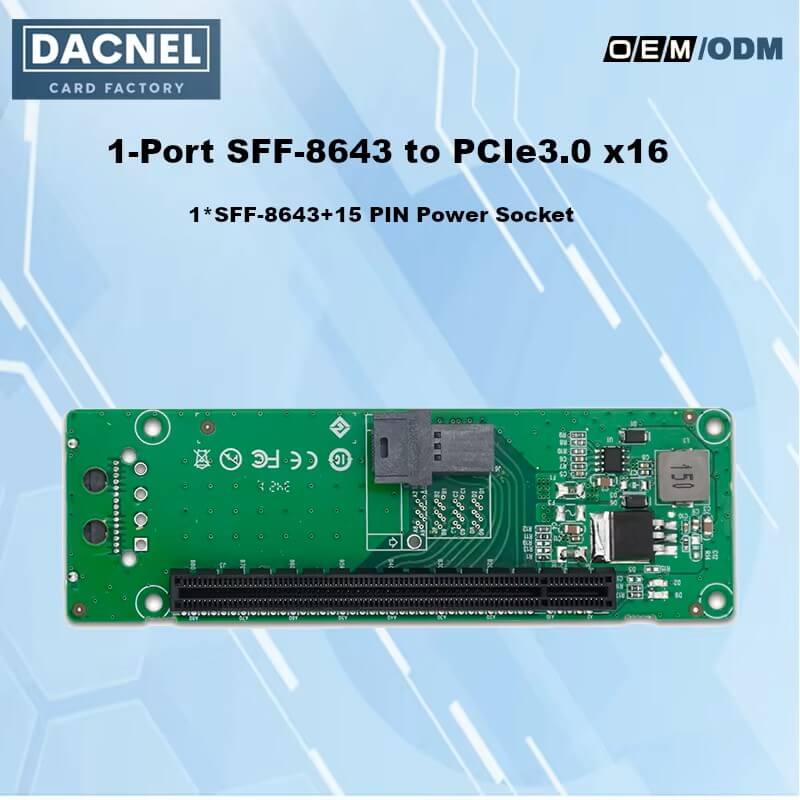

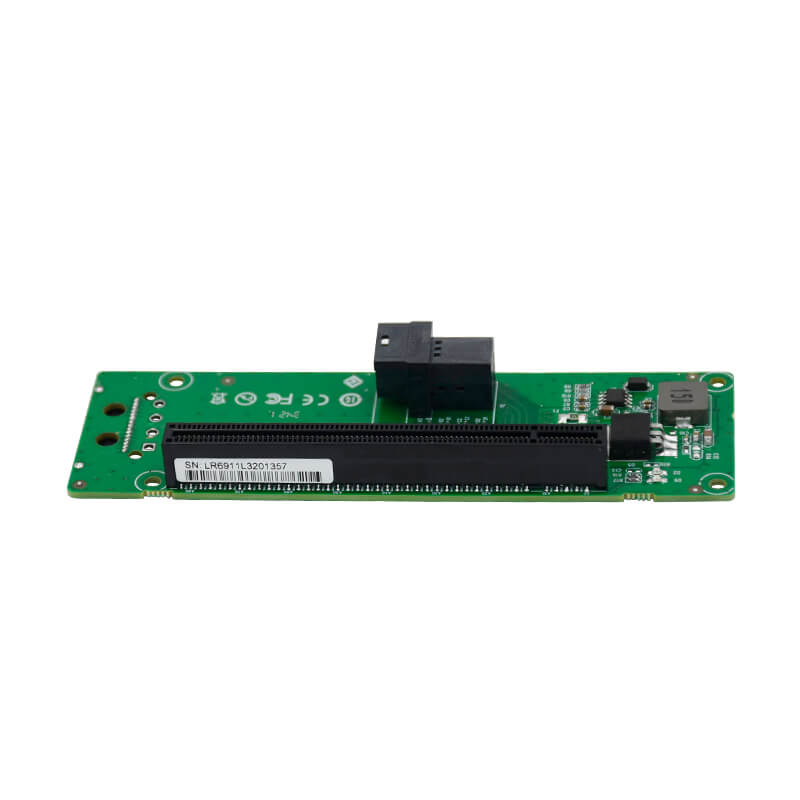

1 Port SFF-8643 to PCIe3.0 x16 Slot Adapter-XIC 334PE
1 Port SFF-8643 to PCIe3.0 x16 Slot Adapter-XIC 334PE
No se pudo cargar la disponibilidad de retiro
XIC 334PE

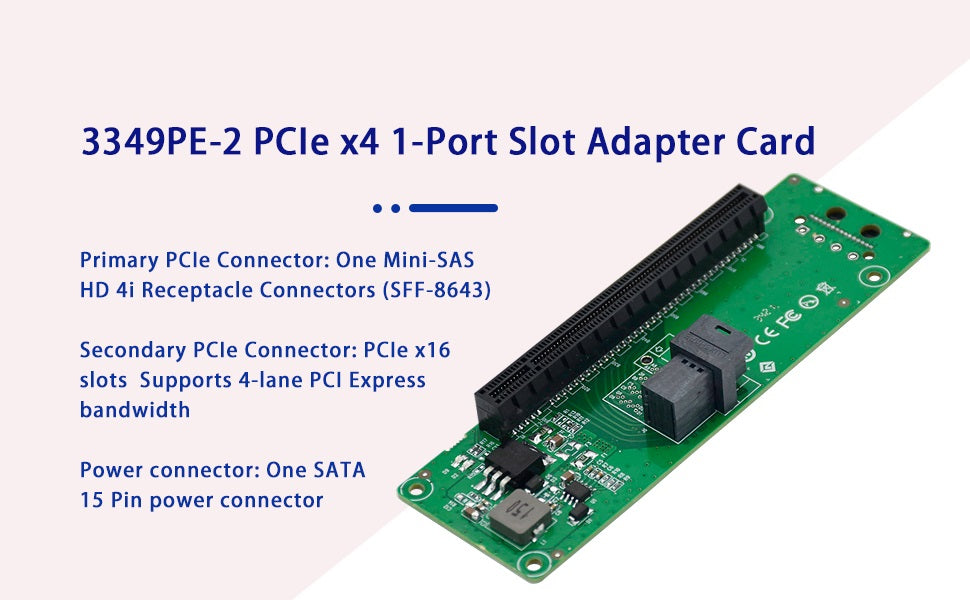

● Interface Type: 1× SFF-8643 + 15PIN SATA Power Socket
● Interface Bus Type: PCIe x16 slot (x4 bandwidth)
● Host Bus Type: PCIe 3.0 x4 (SFF-8643 lane dependent)
● Form Factor: SFF-8643 to PCIe x16 expansion adapter card

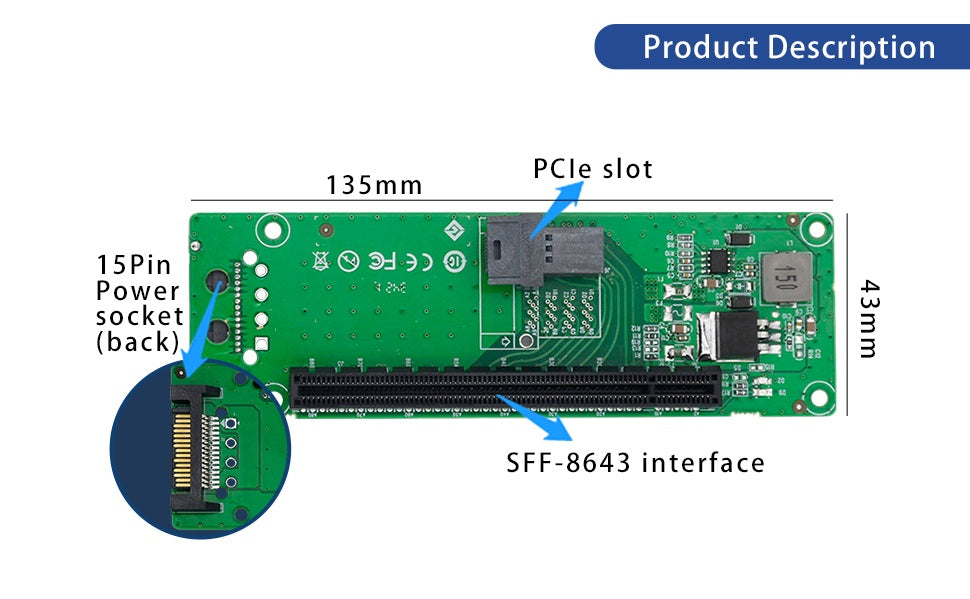

● Dimension: 120mm × 42mm
Download:
Features
● Supports single SFF-8643 high-speed input interface
● Provides one PCIe x16 mechanical slot
● Electrical bandwidth operates at PCIe x4 via host lane allocation

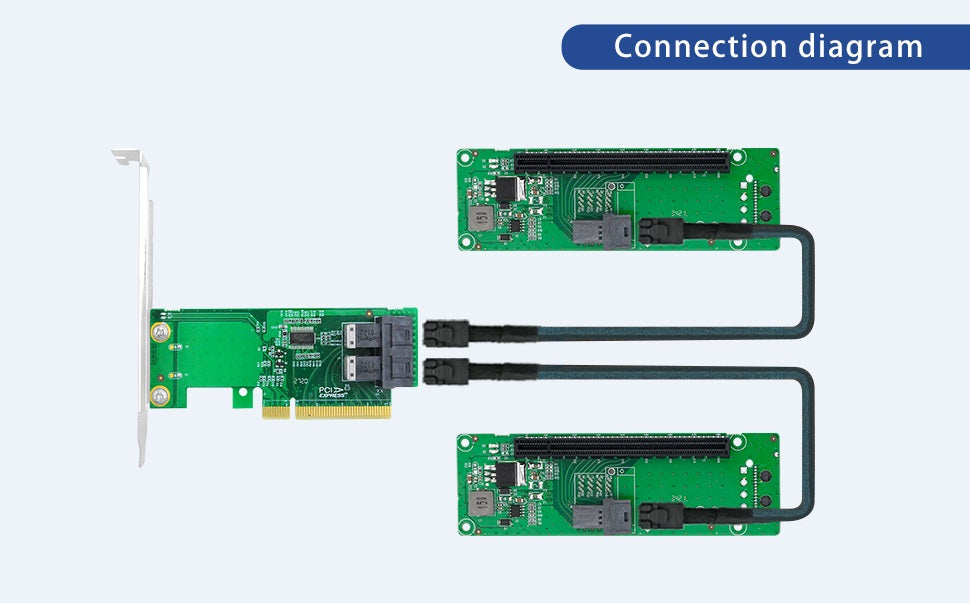

● Uses direct PCIe pass-through architecture

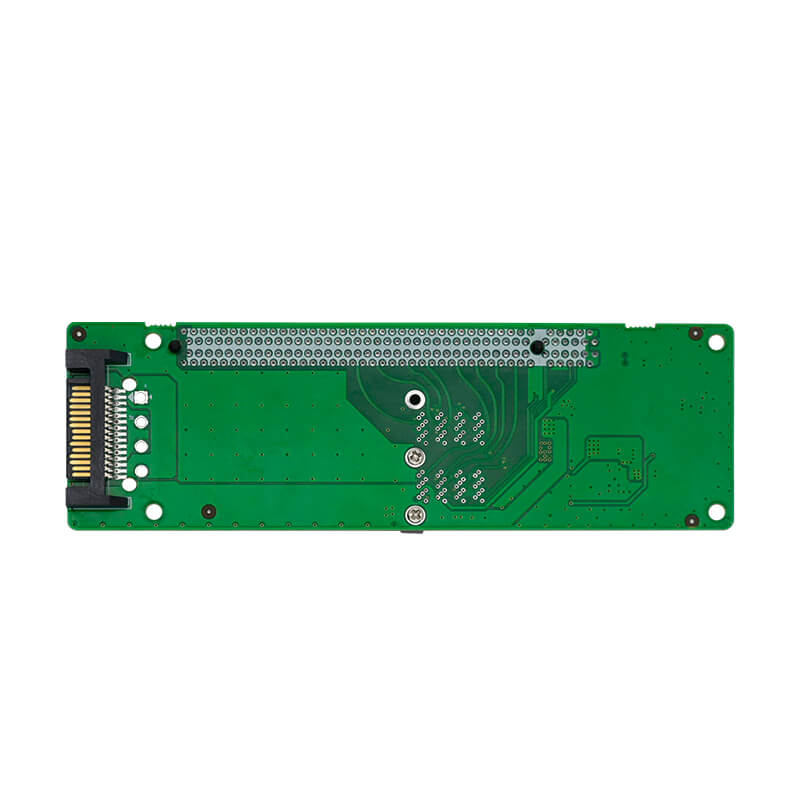

● Requires 15PIN SATA power input for stable operation
● Designed for GPU / NIC / PCIe expansion devices
● No onboard controller or switching logic
● Compact 120×42mm PCB design for space-limited systems
● Compatible with PCIe 3.0 platform environments
Technical Parameters
| Item | Specification |
|---|---|
| Product Model | XIC 334PE |
| Product Type | SFF-8643 to PCIe x16 Adapter |
| Host Interface | SFF-8643 |
| Device Interface | 1× PCIe x16 mechanical slot |
| PCIe Generation | PCIe 3.0 |
| Electrical Bandwidth | PCIe x4 |
| Power Interface | 15PIN SATA power socket |
| Slot Architecture | PCIe x16 mechanical / x4 electrical |
| Signal Architecture | Direct PCIe pass-through |
| Operating Temperature | 5°C to 50°C |
| Storage Temperature | -25°C to 70°C |
