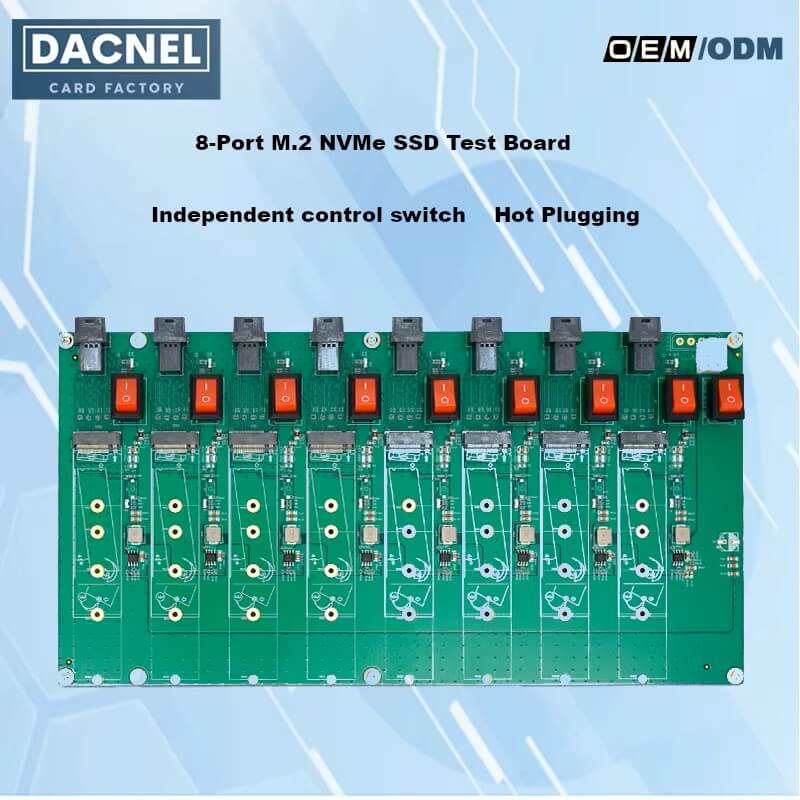

8 Port M.2 SSD Testing Board-XIC 3342-8I
8 Port M.2 SSD Testing Board-XIC 3342-8I
No se pudo cargar la disponibilidad de retiro
XIC 3342-8I
● Interface Type: 8× M.2 M-Key Connectors
● Support Equipment: 8× M.2 NVMe SSD
● Host Bus Type: PCIe (platform dependent, lane split required)
● Form Factor: 8-port M.2 NVMe SSD test / expansion board
Download:
Features
● Supports up to 8× M.2 NVMe SSD simultaneously
● Each M.2 slot is independently controllable via individual switch design
● Designed for multi-drive SSD testing and validation scenarios
● Supports hot-plug operation (platform dependent)
● Requires motherboard or host system with sufficient PCIe lane allocation
● No onboard RAID or storage controller
● Direct PCIe pass-through architecture for NVMe SSD testing environments
● Optimized for high-density SSD deployment and test automation use cases
Technical Parameters
| Item | Specification |
|---|---|
| Product Model | XIC 3342-8I |
| Product Type | 8-Port M.2 NVMe SSD Test Board |
| Device Interface | 8× M.2 M-Key |
| Supported Drives | 8× M.2 NVMe SSD |
| PCIe Architecture | Lane dependent (platform controlled) |
| Control Method | Individual port switch control |
| Signal Architecture | Direct PCIe pass-through |
| Hot Plug Support | Supported (system dependent) |
| Operating Temperature | 5°C to 50°C |
| Storage Temperature | -25°C to 70°C |
