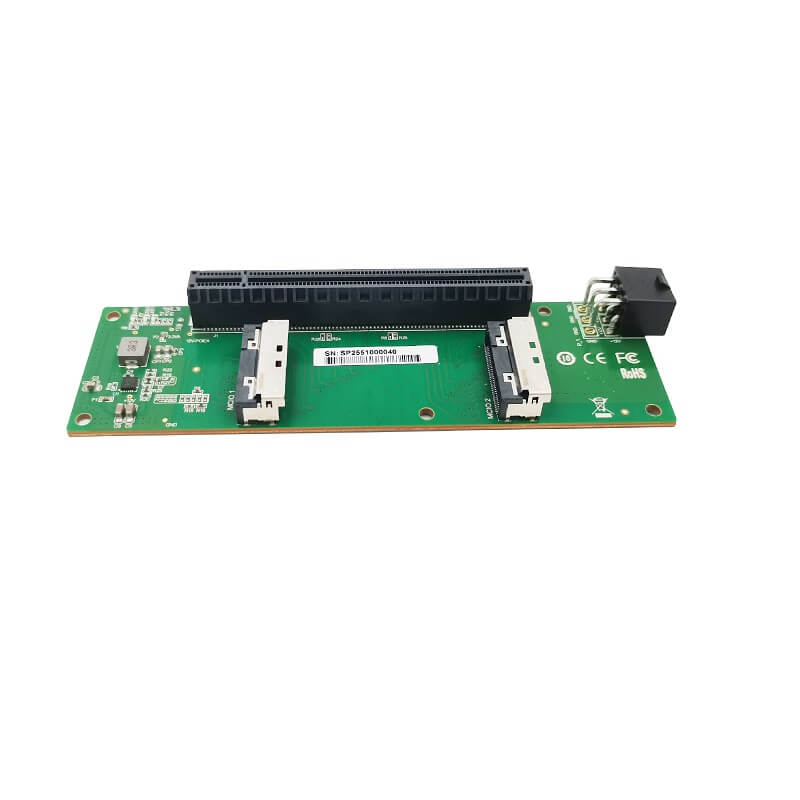

MCIO 8i to PCIe 5.0 x16 Slot Expansion Card – High-Speed PCIe Gen5 Expansion Adapter XIC 0516PEV3
MCIO 8i to PCIe 5.0 x16 Slot Expansion Card – High-Speed PCIe Gen5 Expansion Adapter XIC 0516PEV3
No se pudo cargar la disponibilidad de retiro
XIC 0516PEV3
● Interface Type: 2× MCIO 8i (56G PCIe 5.0 x8 wide port)
● Output Interface: 1× PCIe x16 Mechanical and Electrical Slot
● Support: PCIe Gen5 x16 electrical bandwidth
● Host Bus Type: PCIe 5.0
● Form Factor: PCIe Gen5 MCIO to PCIe slot adapter card
Download:
Features
● Supports dual PCIe 5.0 MCIO 8i input connections
● Provides one PCIe x16 mechanical and electrical slot output
● Supports PCIe Gen5 x8 mode using a single MCIO cable
● Supports PCIe Gen5 x16 mode using dual MCIO inputs
● x8 mode uses input near the power connector
● x16 mode requires both MCIO inputs connected
● x16 mode requires both inputs from the same CPU host port
● Lane ordering must be 0–7 → 8–15
● Reversed lane mapping (8–15 → 0–7) is not supported
● Built with high-quality PCIe Gen5 SMT slot
● Uses 85Ω ultra low-loss PCB for high-speed signal integrity
● Integrated GPU power connector for external 12V supply
● Built-in 12V → 3.3V buck voltage regulator (6A design)
● Designed for PCIe Gen5 GPU and accelerator expansion applications
Technical Parameters
| Item | Specification |
|---|---|
| Product Model | XIC 0516PEV3 |
| Product Type | PCIe Gen5 MCIO to PCIe Slot Adapter |
| Input Interface | 2× MCIO 8i (56G PCIe 5.0 x8) |
| Output Interface | 1× PCIe x16 mechanical and electrical slot |
| PCIe Generation | PCIe 5.0 |
| Electrical Bandwidth | PCIe Gen5 x16 |
| Operating Modes | x8 mode / x16 mode |
| PCB Design | 85Ω ultra low-loss PCB |
| Power Input | External GPU 12V power connector |
| Voltage Regulation | 12V → 3.3V buck regulator (6A) |
| Lane Requirement | Same CPU host port required for x16 mode |
| Lane Mapping | 0–7 → 8–15 |
| Signal Architecture | Direct PCIe pass-through |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 70°C |
Product Highlights
PCIe Gen5 MCIO to PCIe x16 Expansion
XIC 0516PEV3 converts dual MCIO 8i (PCIe Gen5) inputs into a standard PCIe x16 slot for high-bandwidth expansion devices.
Typical use cases:
● GPU
● AI accelerator
● FPGA
● High-speed PCIe add-in cards
