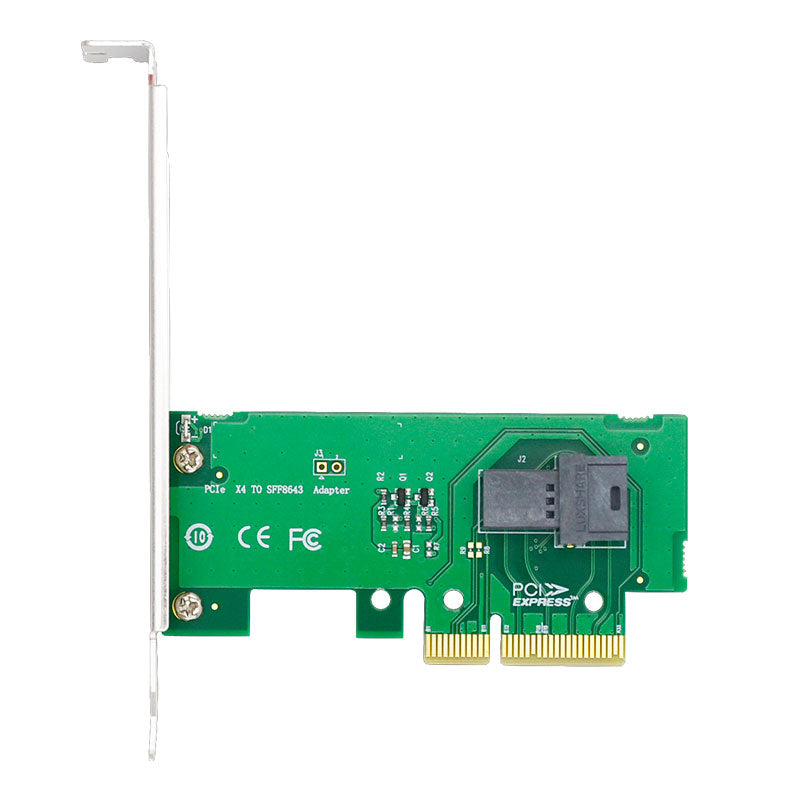

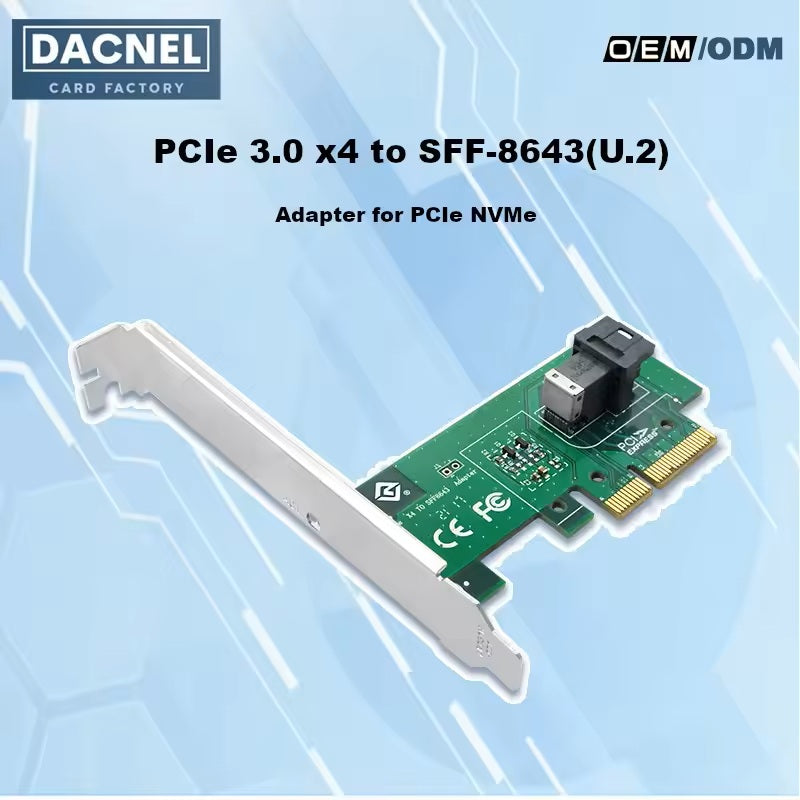

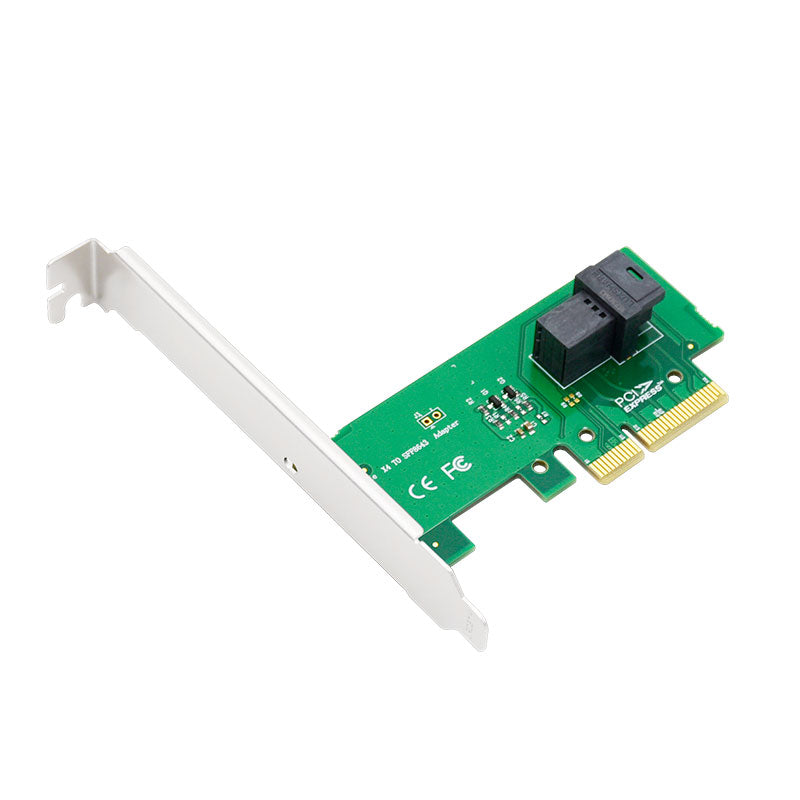

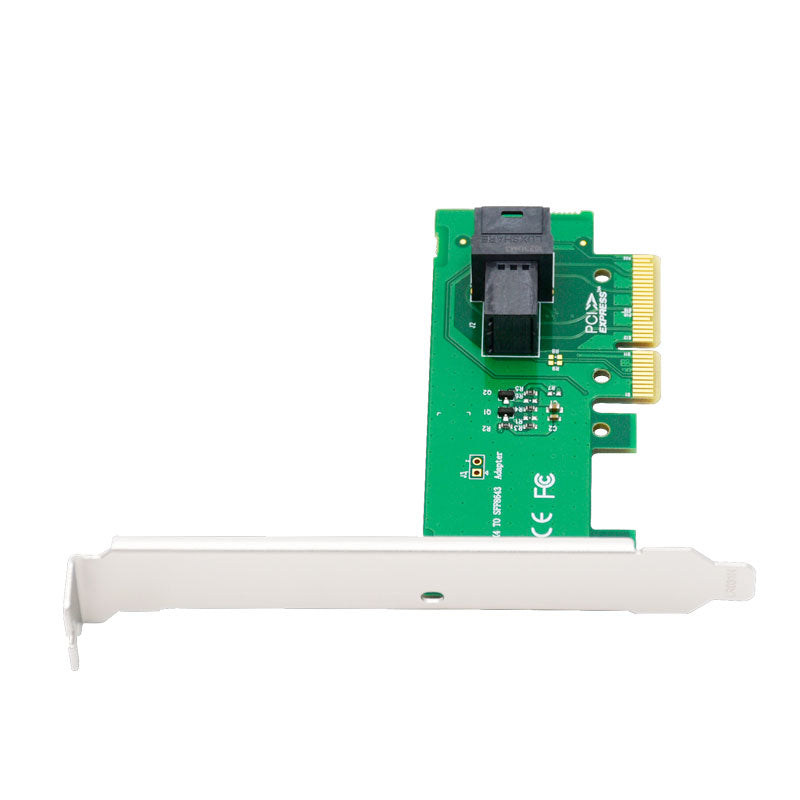

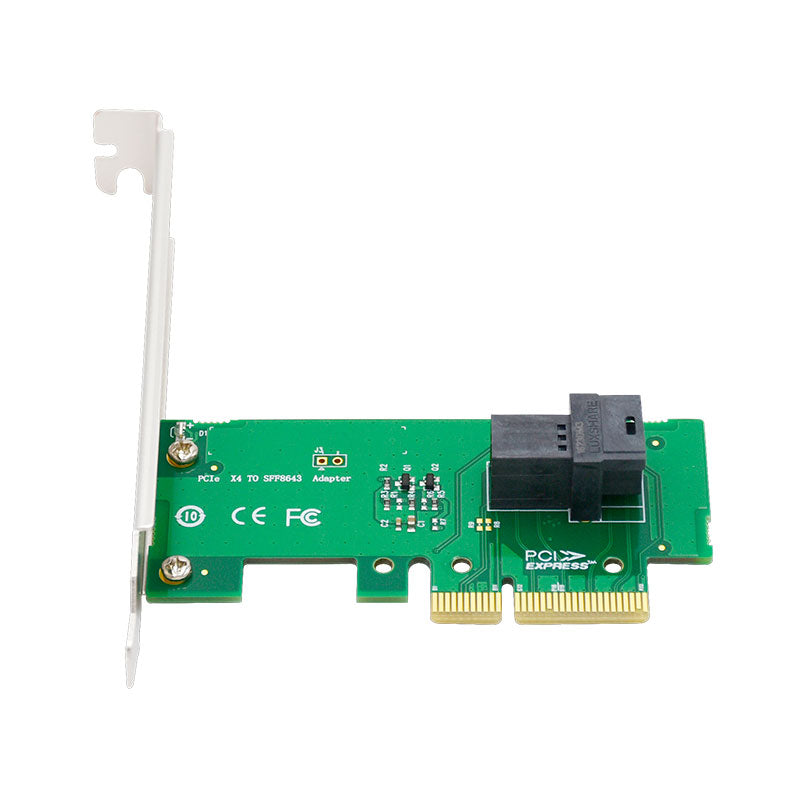

PCIe 3.0 x4 to U.2 NVMe Adapter Card - XIC PE343
PCIe 3.0 x4 to U.2 NVMe Adapter Card - XIC PE343
No se pudo cargar la disponibilidad de retiro
XIC PE343
● Interface Type: 1× SFF-8643 Connector (PCIe Input)
● Support: 1× U.2 NVMe SSD (SFF-8639)
● Host Bus Type: PCIe 3.0 x4
● Bracket Height: Full-height and Low-profile
● Form Factor: Passive NVMe Adapter Card
Features
- Supports 1× U.2 NVMe SSD (SFF-8639 Interface)
- PCIe 3.0 x4 high-speed direct-attached NVMe interface
- Uses 1× SFF-8643 connector for PCIe signal input
- Pure passive design with no controller or bridge chip required
- Direct PCIe lane routing from host to NVMe SSD
- No RAID, cache, or switching logic
- Low latency with full NVMe bandwidth performance
- Compatible with enterprise-grade U.2 NVMe SSDs (platform dependent)
- Includes both full-height and low-profile brackets

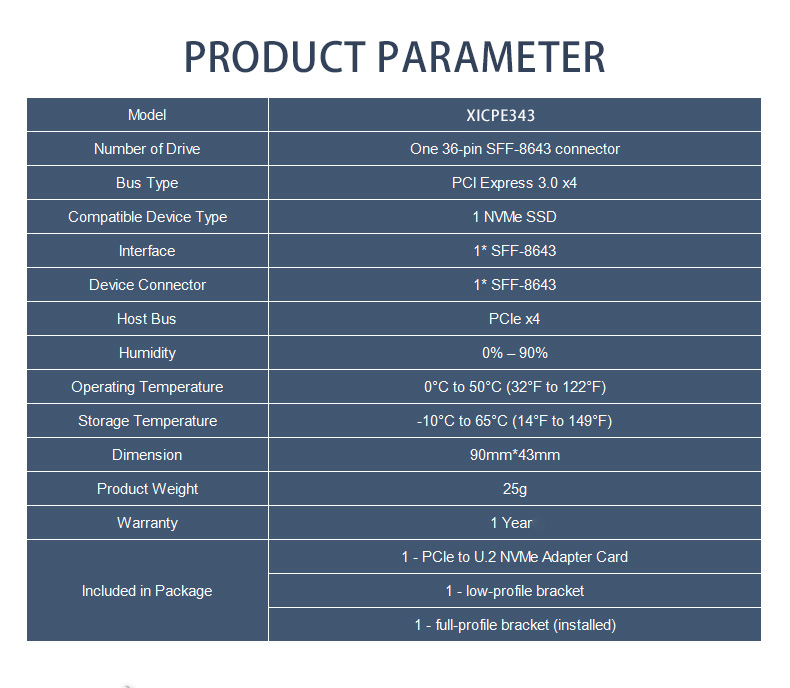

Technical Parameters
| Item | Specification |
|---|---|
| Product Model | XIC PE343 |
| Product Type | U.2 NVMe Passive Adapter Card |
| Interface Type | 1× SFF-8643 Connector (PCIe Input) |
| Support | 1× U.2 NVMe SSD (SFF-8639) |
| Host Bus Type | PCI Express 3.0 x4 |
| Storage Interface | 1× U.2 (SFF-8639) NVMe |

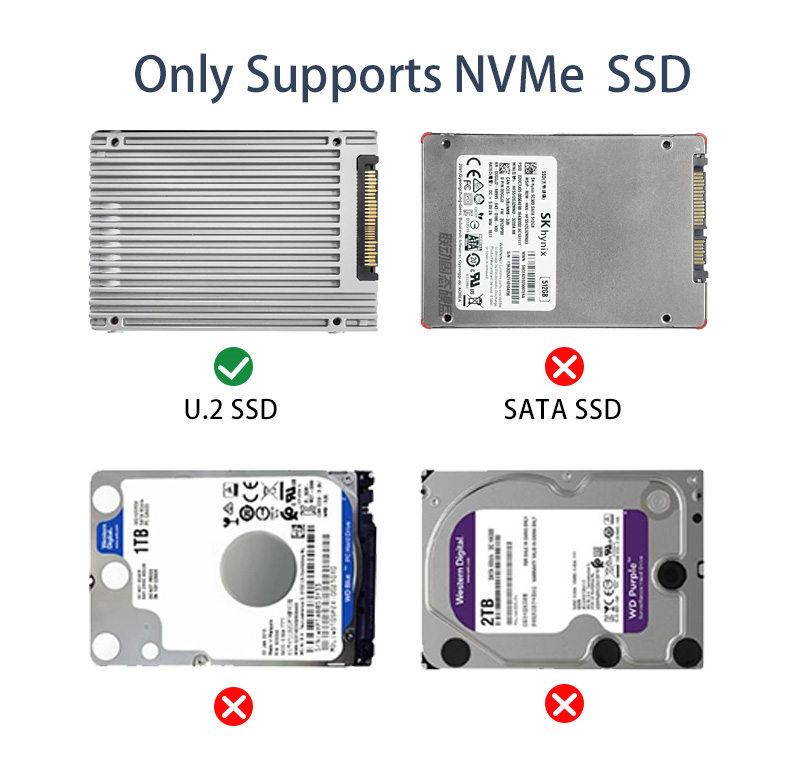

| Protocol Support | NVMe Only |
| Controller | None (Passive Design) |
| RAID Support | None |
| Cable Support | SFF-8643 PCIe Cable |
| Bracket Height | Full-height and Low-profile |
| Cooling | Passive Heatsink |
| UEFI Support | Yes |
| Supported OS | Windows / Linux / VMware / FreeBSD / TrueNAS |
| Driver Support | Native NVMe Driver (Built into OS) |
| Operating Temperature | 5°C to 50°C |
| Storage Temperature | -25°C to 70°C |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
