8 Port PCIe 3.0 x16 to Internal SFF-8643 NVMe Switch Card-STC PE3163-8I
8 Port PCIe 3.0 x16 to Internal SFF-8643 NVMe Switch Card-STC PE3163-8I
No se pudo cargar la disponibilidad de retiro
STC PE3163-8I

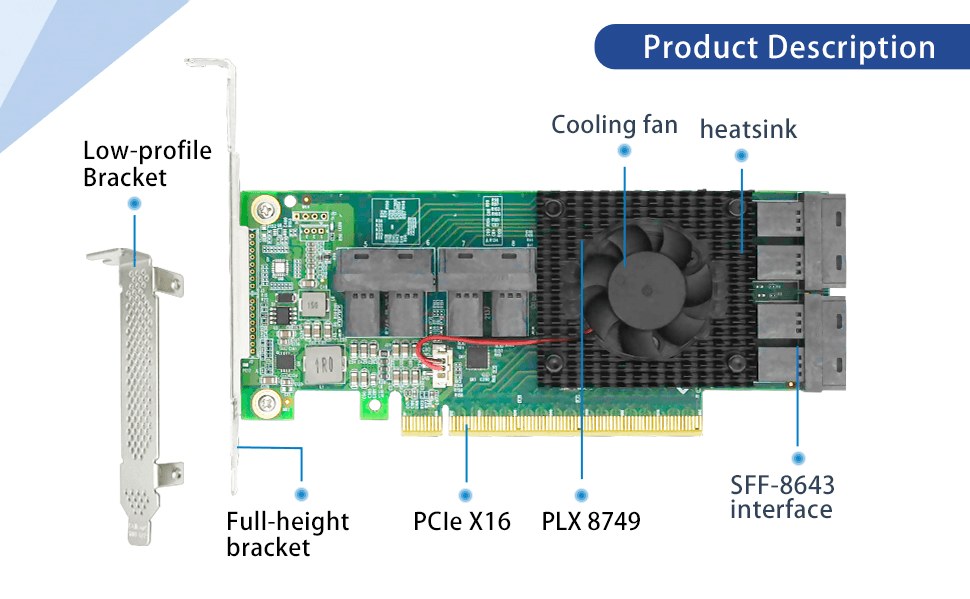

● Main Chipset: PLX PEX8749 PCIe Switch
● Interface Type: 8× SFF-8643 Connectors
● Support: 8× U.2 NVMe SSD
● Host Bus Type: PCIe 3.0 x16
● Bracket Height: Full height and low profile
● Form Factor: NVMe switch adapter card
Features

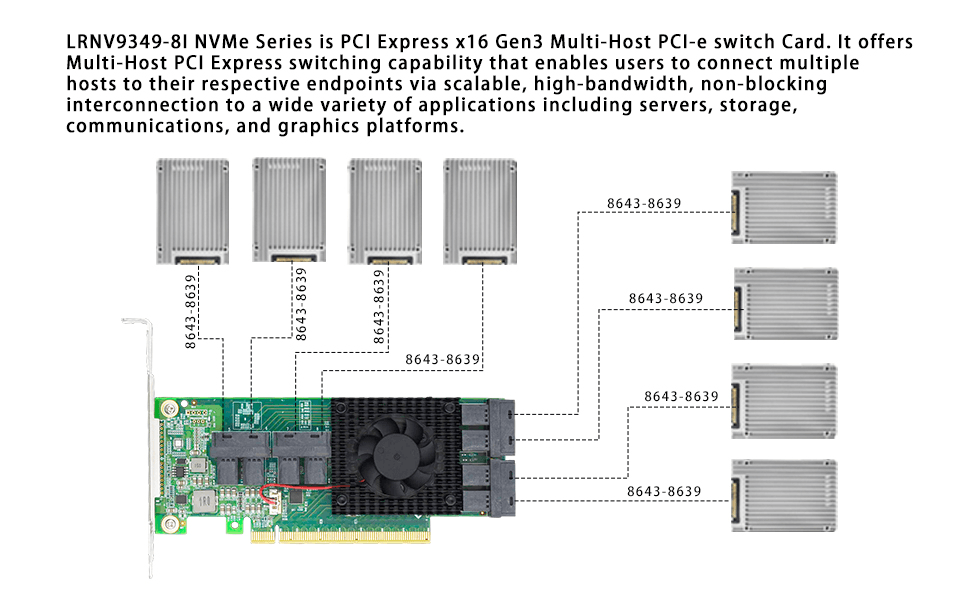

- High-density 8× U.2 NVMe SSD expansion design
- PCIe switch architecture for multi-drive NVMe aggregation
- Independent lane allocation per SSD via PLX switch
- No motherboard PCIe bifurcation required
- Designed for enterprise storage and high IOPS workloads
- Supports full parallel NVMe performance scaling
- Includes full-height and low-profile brackets
Technical Parameters
| Item | Specifications |
|---|---|
| Product Model | STC PE3163-8I-49 |
| Product Type | PCIe NVMe Switch Adapter Card |
| Main Chipset | PLX PEX8749 |
| Interface Type | 8× SFF-8643 Connectors |
| Support | 8× U.2 NVMe SSD |
| Host Bus Type | PCI Express 3.0 x16 |
| Per-Drive Bandwidth | PCIe 3.0 x2 per SSD |

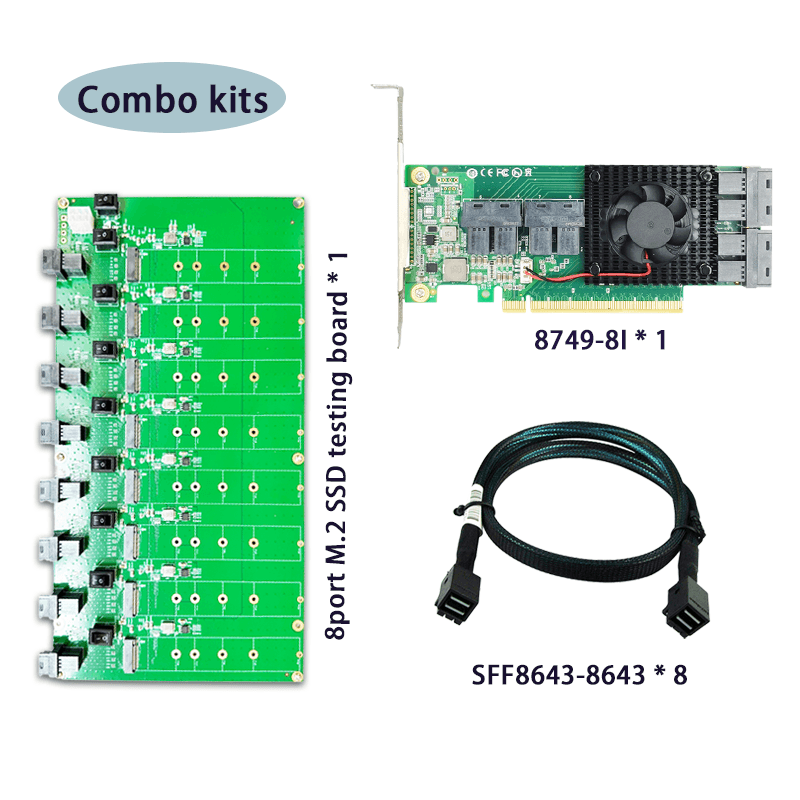

| Storage Interface | U.2 NVMe (via SFF-8643 cable) |
| Protocol Support | NVMe |
| RAID Support | None |
| Bifurcation Requirement | Not required |
| Card Architecture | PCIe Switch |

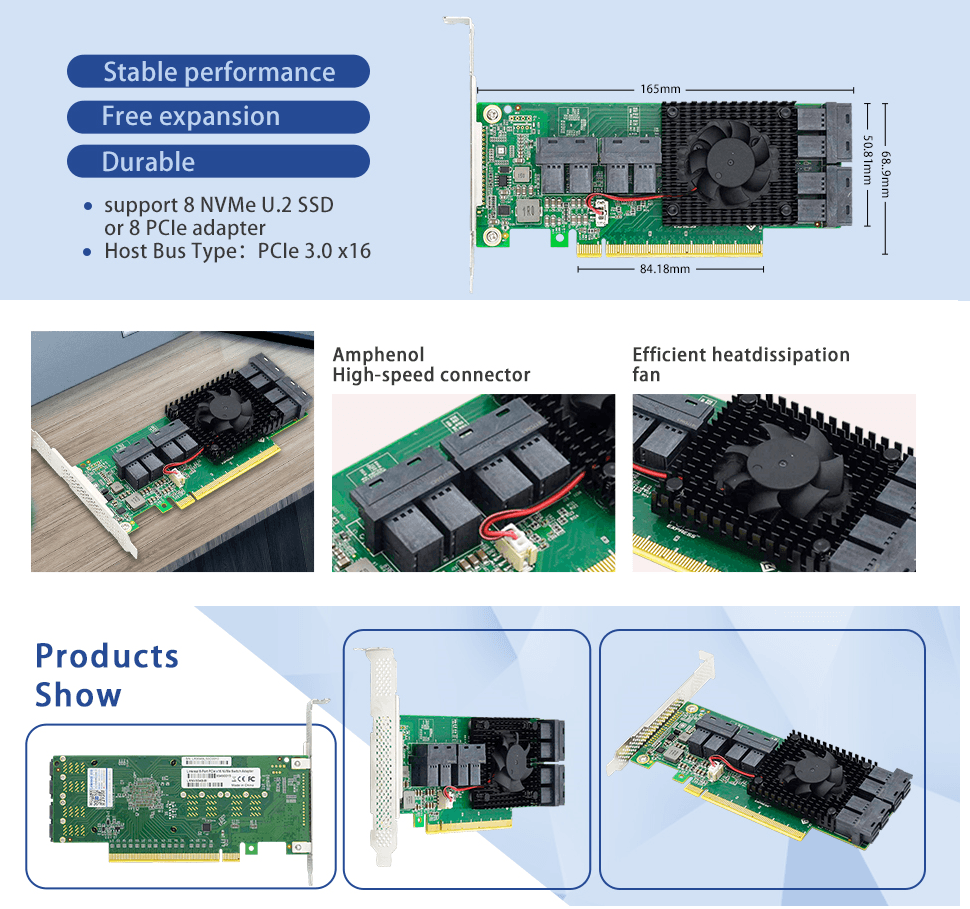

| Cooling | Active cooling fan + heatsink |
| Bracket Height | Full height and low profile |
| UEFI Support | Yes |
| Supported Operating Systems | Windows / Linux / VMware |
| Driver Support | Native NVMe driver (OS built-in) |
