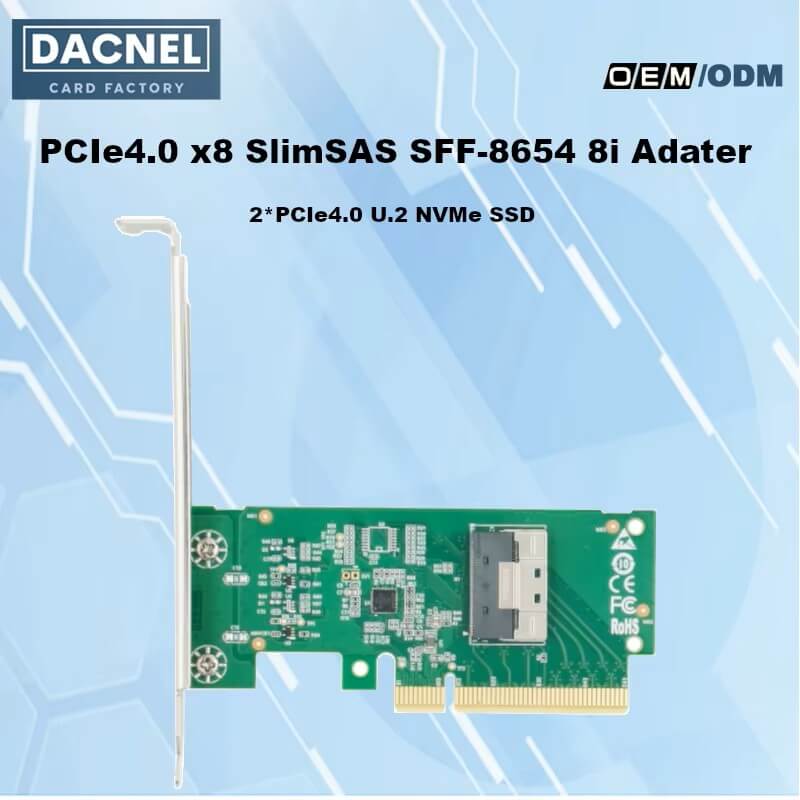

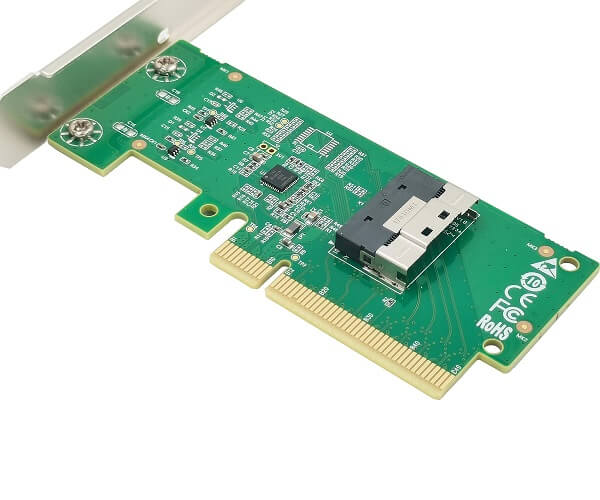

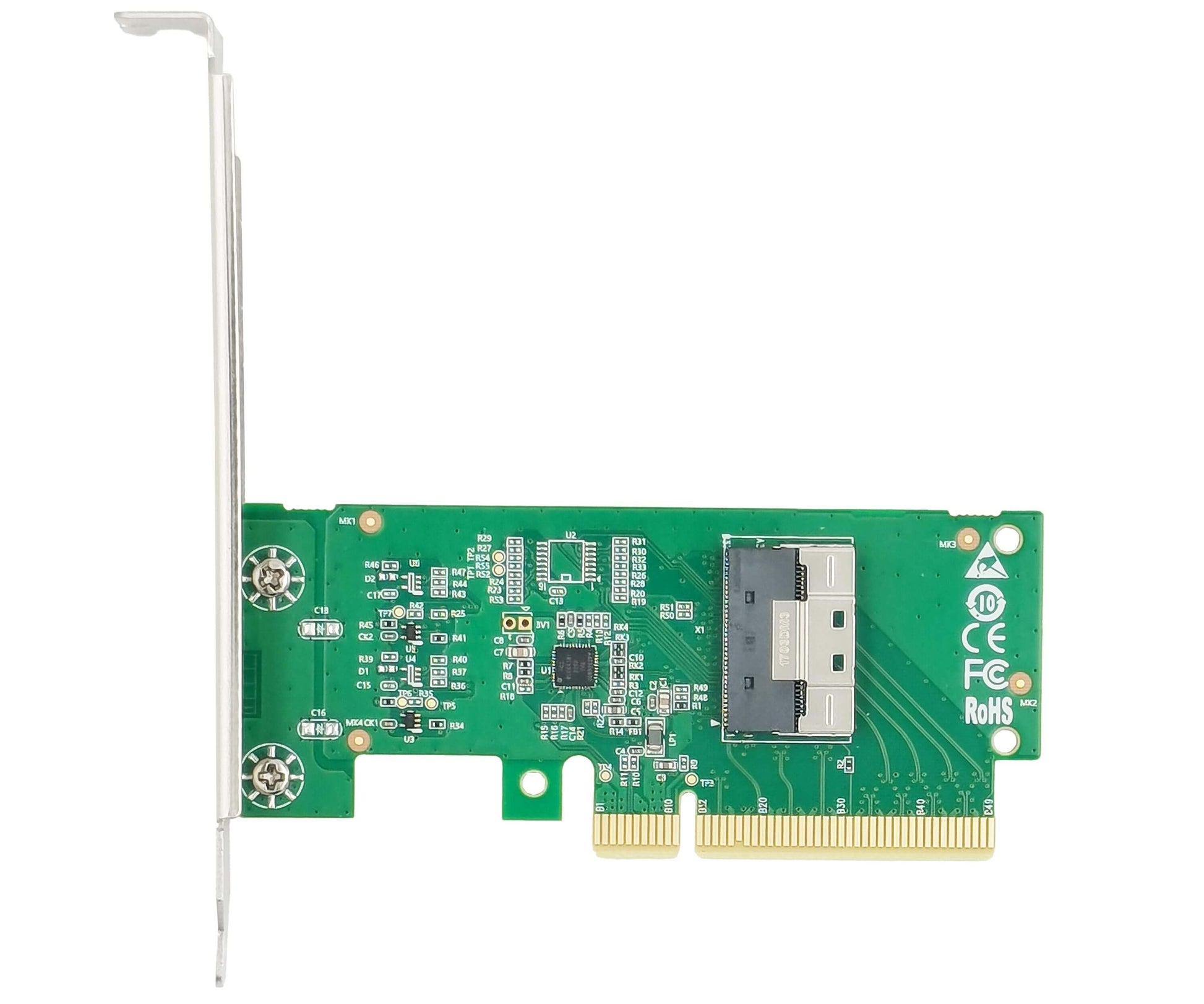

PCI Express 4.0 x8 to SlimSAS SFF-8654 8i Adapter-XIC PE485
PCI Express 4.0 x8 to SlimSAS SFF-8654 8i Adapter-XIC PE485
No se pudo cargar la disponibilidad de retiro
XIC PE485

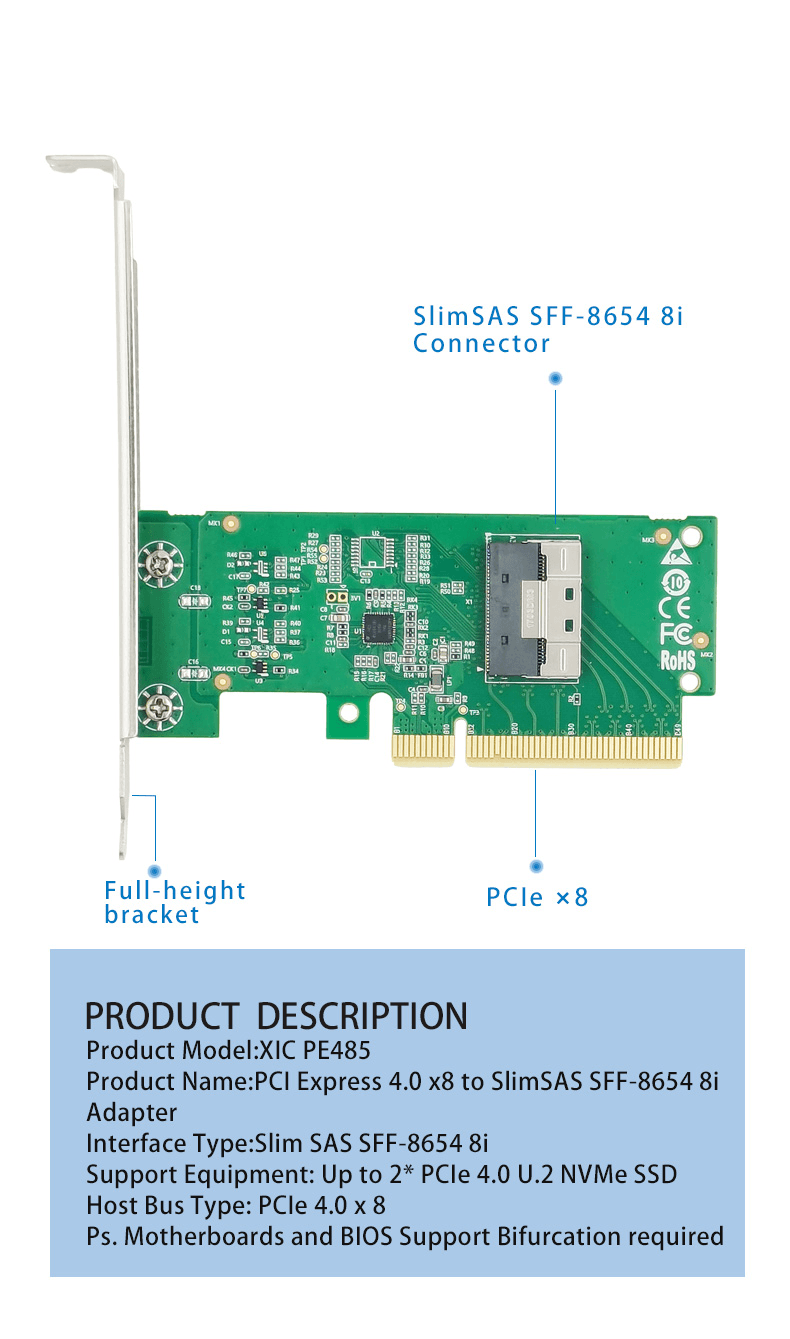

● Interface Type: 1× Slim SAS SFF-8654 8i Connector

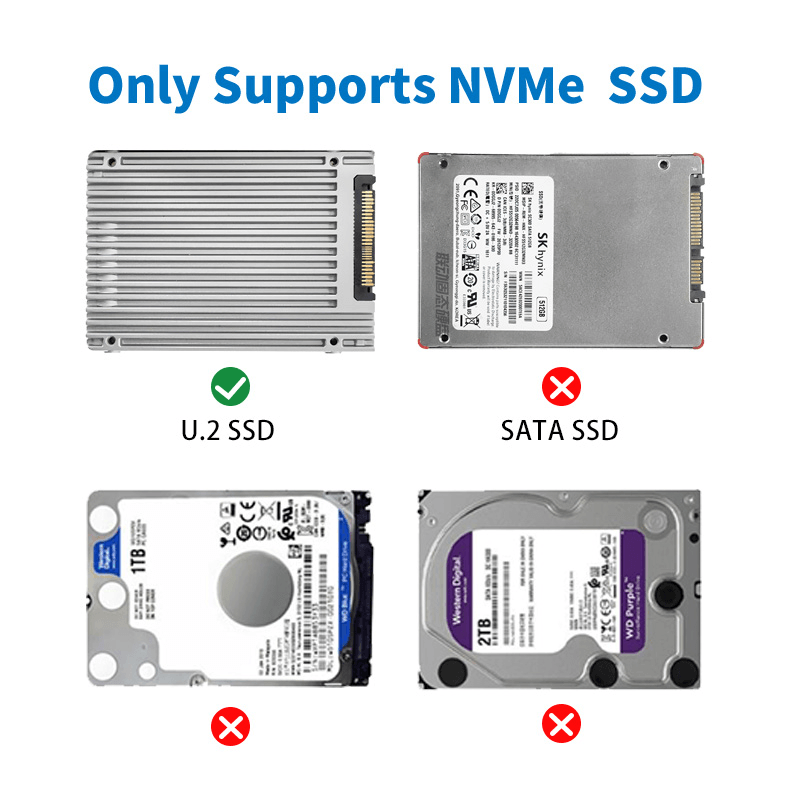

● Support: Up to 2× PCIe 4.0 U.2 NVMe SSD
● Host Bus Type: PCIe 4.0 x8
● Bracket Height: Full height and low profile
● Form Factor: NVMe adapter card
Download:
Features
● Supports up to 2× PCIe 4.0 U.2 NVMe SSDs
● Uses single Slim SAS SFF-8654 8i interface
● Requires motherboard and BIOS PCIe bifurcation support
● Direct PCIe lane allocation from host to each SSD
● Designed for high-speed PCIe 4.0 NVMe storage expansion
● Includes full-height and low-profile brackets

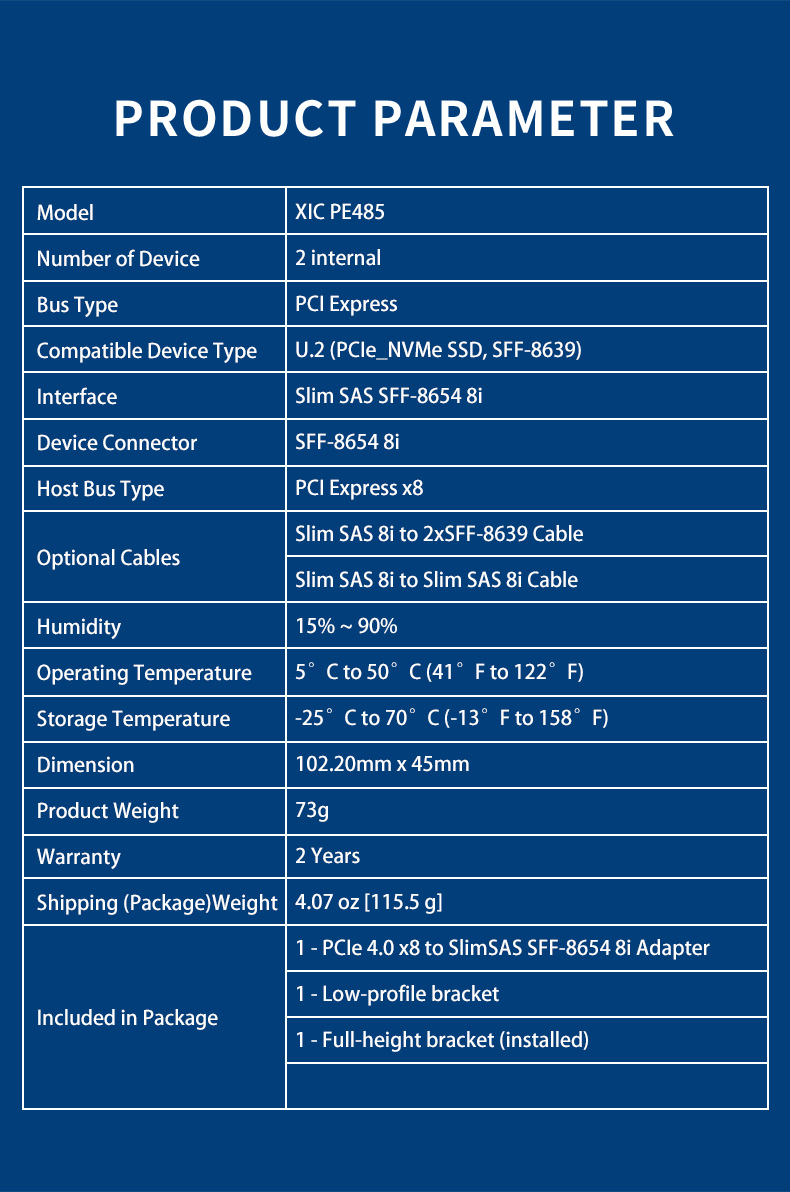

Technical Parameters
| Item | Specification |
|---|---|
| Product Model | XIC PE485 |
| Product Type | PCIe NVMe Adapter Card |
| Host Interface | 1× Slim SAS SFF-8654 8i |
| Storage Support | Up to 2× U.2 NVMe SSD |
| Host Bus Interface | PCIe 4.0 x8 |
| Storage Interface | U.2 NVMe (via SFF-8654 to SFF-8639 cable) |
| Protocol | NVMe |
| RAID Support | Not supported |
| Architecture | Direct PCIe lane breakout |
| Bifurcation Requirement | Required (BIOS support needed) |
| Bracket Options | Full-height & low-profile |
| UEFI Support | Yes |
| OS Compatibility | Windows 10/11, Windows Server 2016/2019/2022, Linux (Ubuntu, Debian, CentOS, RHEL, Rocky Linux, SUSE), VMware ESXi 6.x/7.x/8.x, TrueNAS CORE/SCALE, Proxmox VE, Unraid, FreeBSD |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
