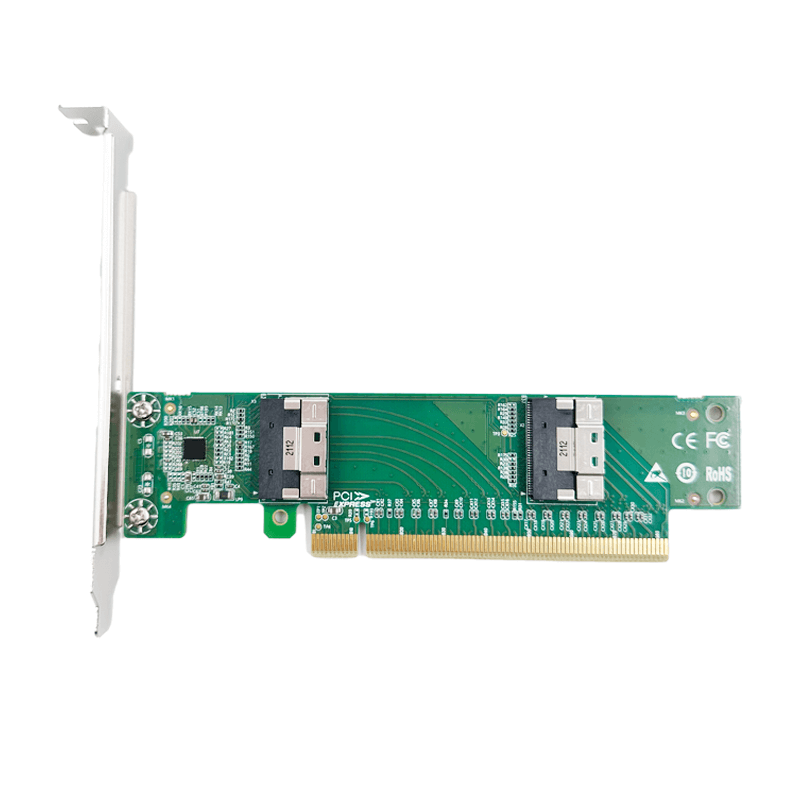

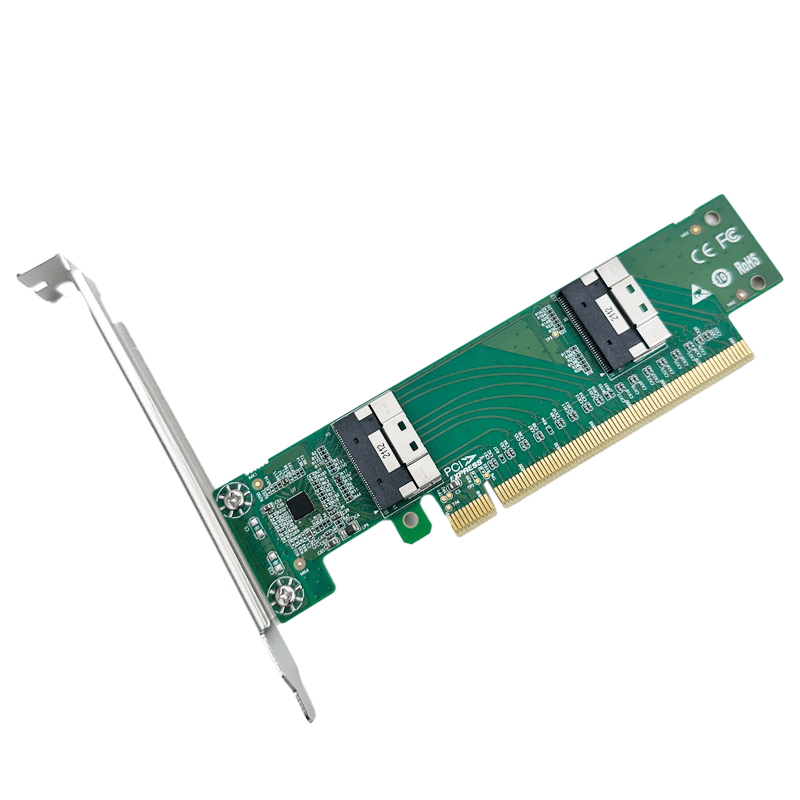

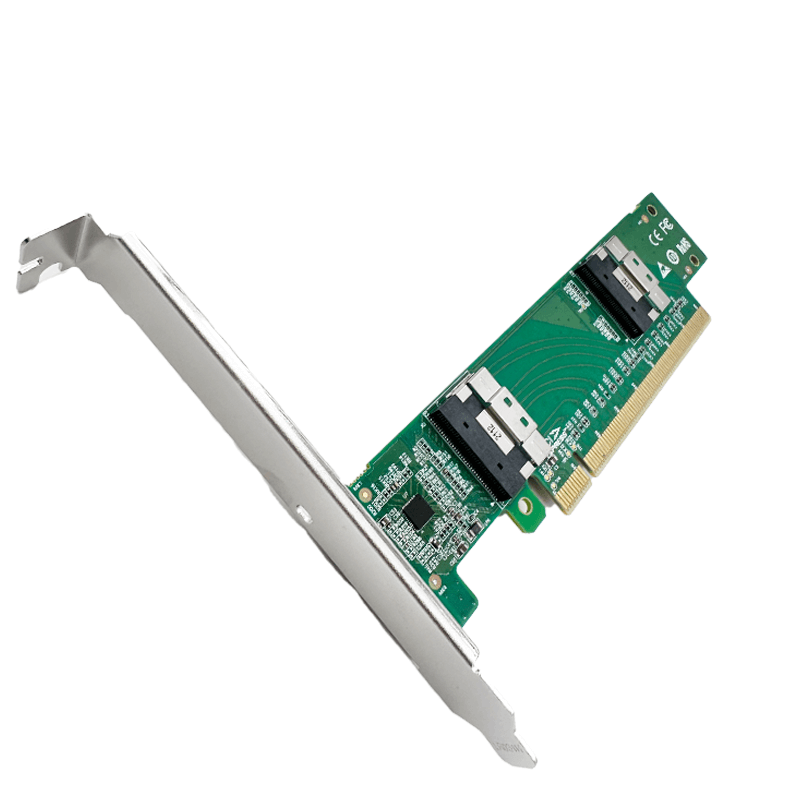

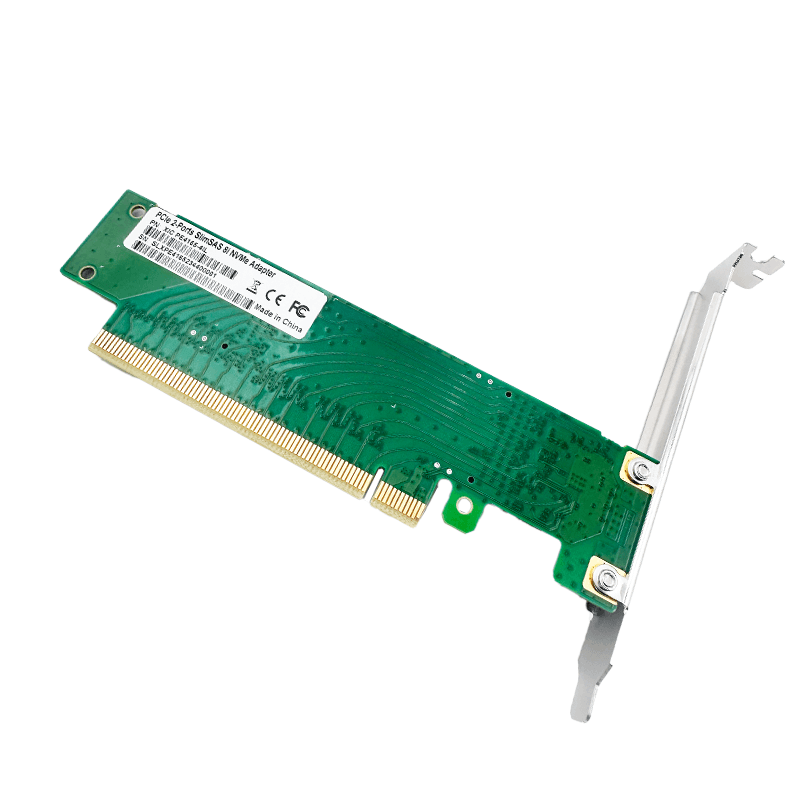

PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Slim Adapter-XIC PE4165-4IL
PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Slim Adapter-XIC PE4165-4IL
No se pudo cargar la disponibilidad de retiro
XIC PE4165-4IL

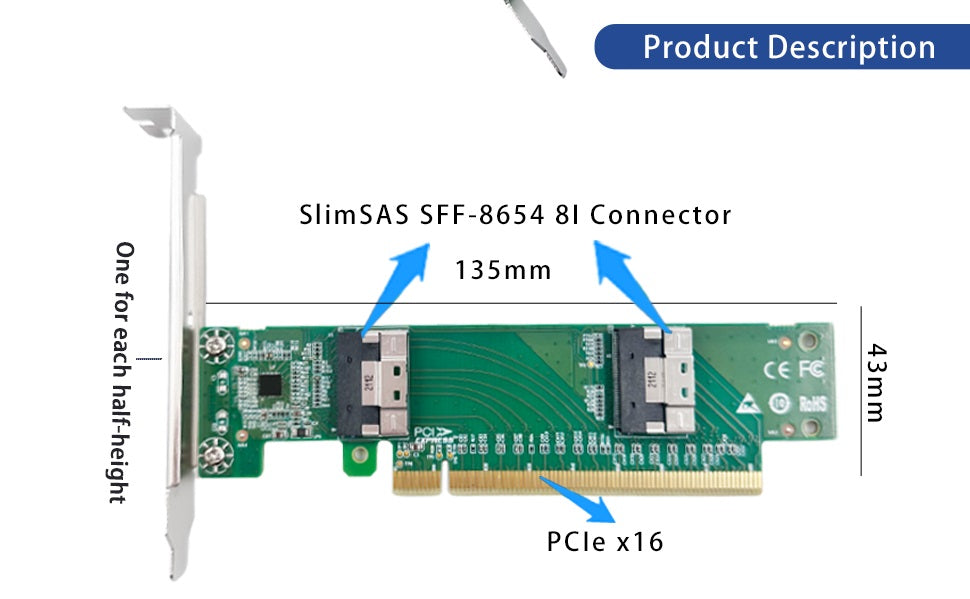

● Interface Type: 2× Slim SAS SFF-8654 8i Connectors
● Support: Up to 4× PCIe 4.0 U.2 NVMe SSD
● Host Bus Type: PCIe 4.0 x16
● Bracket Height: Full height and low profile
● Form Factor: NVMe adapter card
Download:
Features
- Supports up to 4× PCIe 4.0 U.2 NVMe SSDs
- Uses dual Slim SAS SFF-8654 8i interfaces

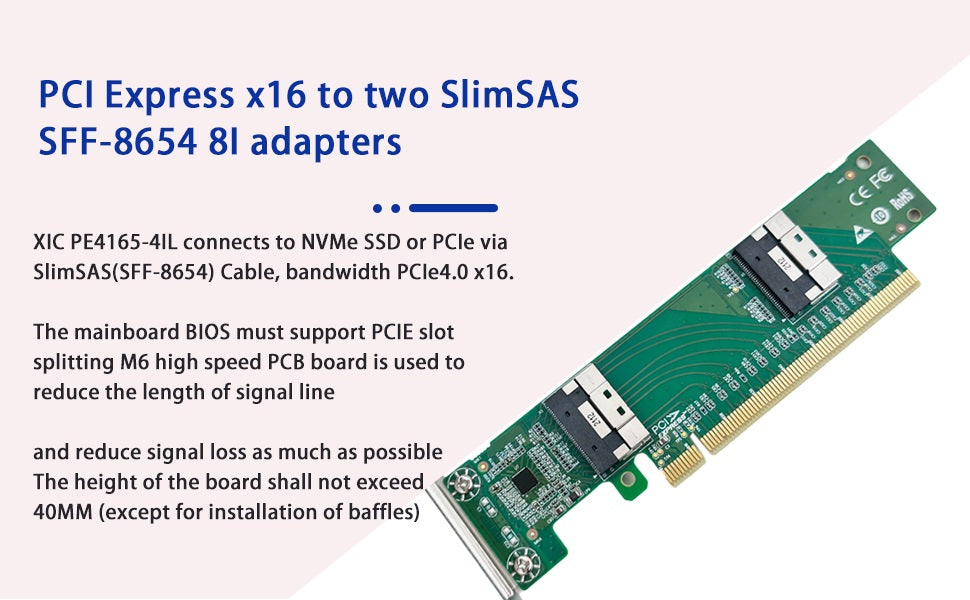

- Requires motherboard and BIOS bifurcation support
- Direct PCIe lane allocation to each NVMe SSD
- Designed for high-speed PCIe 4.0 NVMe storage expansion
- Includes full-height and low-profile brackets
Technical Parameters
| Item | Specifications |
|---|---|
| Product Model | PE4165-4IL |
| Product Type | PCIe NVMe Adapter Card |
| Interface Type | 2× Slim SAS SFF-8654 8i Connectors |
| Support | Up to 4× PCIe 4.0 U.2 NVMe SSD |
| Host Bus Type | PCI Express 4.0 x16 |

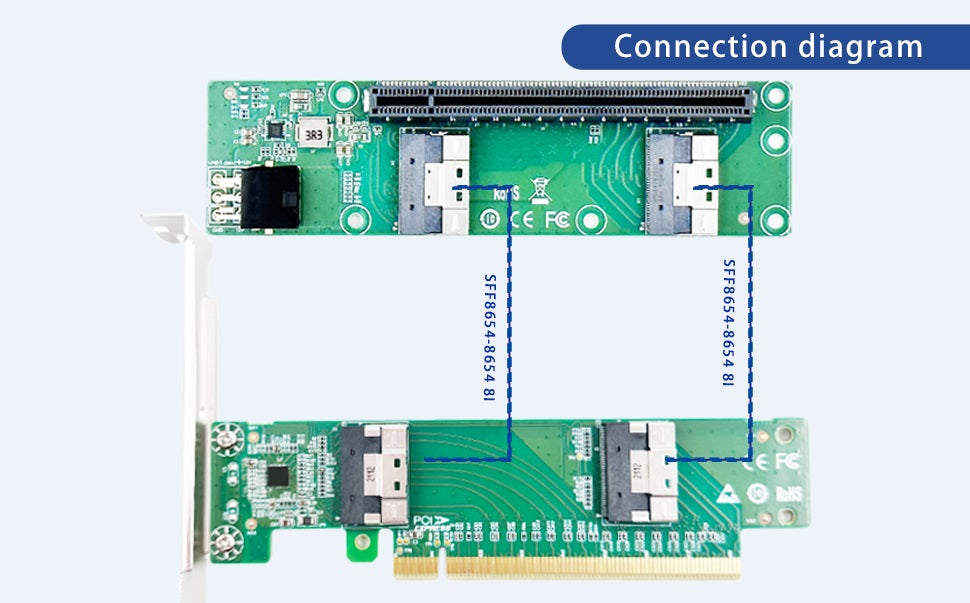

| Storage Interface | U.2 NVMe (via SFF-8654 to SFF-8639 cable) |
| Protocol Support | NVMe |
| RAID Support | None |
| Bifurcation Requirement | Required |
| Card Architecture | Direct PCIe lane breakout |
| Bracket Height | Full height and low profile |
| UEFI Support | Yes |
| Supported Operating Systems | Windows / Linux / VMware |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
