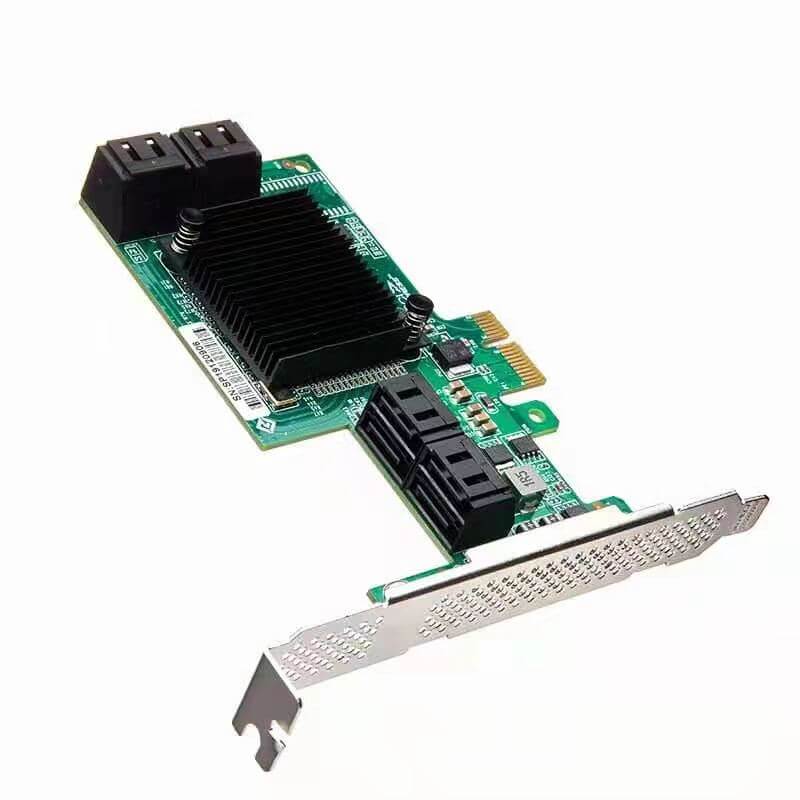

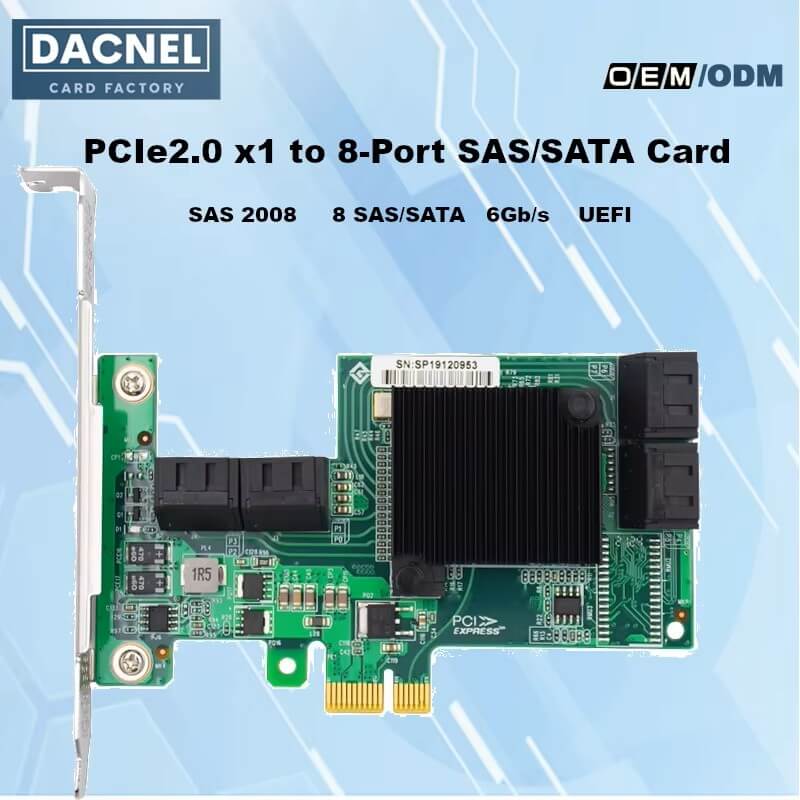

PCIe x1 to 8 Port SATA 6Gb/s SAS/SATA Expansion Card-HBA 2008-8S X1
PCIe x1 to 8 Port SATA 6Gb/s SAS/SATA Expansion Card-HBA 2008-8S X1
No se pudo cargar la disponibilidad de retiro
HBA 2008-8S X1
● Controller: LSI SAS 2008-8S (SATA mode / HBA variant)
● Ports: 8x SATA 6Gb/s Ports (direct breakout)
● Interface: PCIe 2.0 x1
● Bracket Height: Low profile
● Cabling: Direct SATA connectors
Features
- Supports up to 8 SATA 6Gb/s HDDs or SSDs
- PCIe 2.0 x1 low-bandwidth host interface
- Direct 8-port SATA breakout design (no SFF-8087)
- SATA III 6Gb/s per port for basic storage expansion
- Entry-level storage expansion solution for desktop or small NAS systems
- Compact low-profile design for small form factor builds
- Compatible with Windows, Linux, VMware systems
Technical Parameters
| Item | Specifications |
|---|---|
| Product Model | HBA 2008-8S X1 |
| Product Type | SATA Host Bus Adapter (Entry-level) |
| Vertical Segment | Desktop / Entry NAS / Storage |
| Controller | LSI SAS 2008-8S |
| Host Interface | PCI Express 2.0 x1 |
| SATA Interface Speed | 6Gb/s SATA |
| Ports | 8x SATA direct ports |
| Supported Devices | Up to 8 SATA HDDs or SSDs |
| SAS Support | Not supported |
| Card Mode | HBA (SATA pass-through mode) |
| RAID Support | None (software RAID only) |
| Cable Type | Direct SATA cables |
| Bracket Height | Low profile |
| Cooling | Passive heatsink |
| UEFI Support | Yes |
| Supported Operating Systems | Windows / Linux / VMware / FreeBSD / TrueNAS / UnRAID |
| Driver Support | LSI / Broadcom SATA driver support |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
