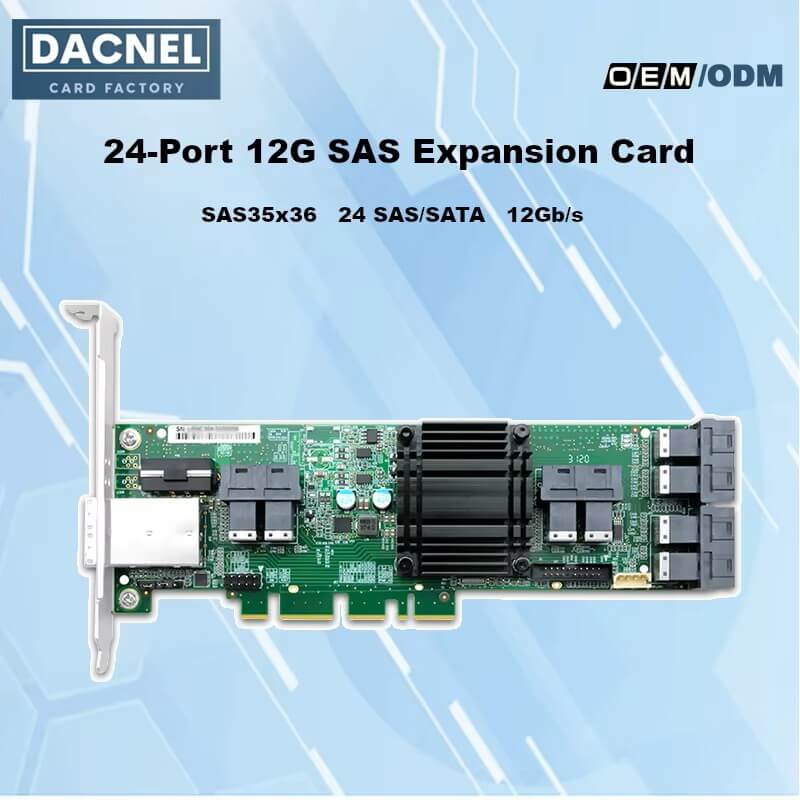

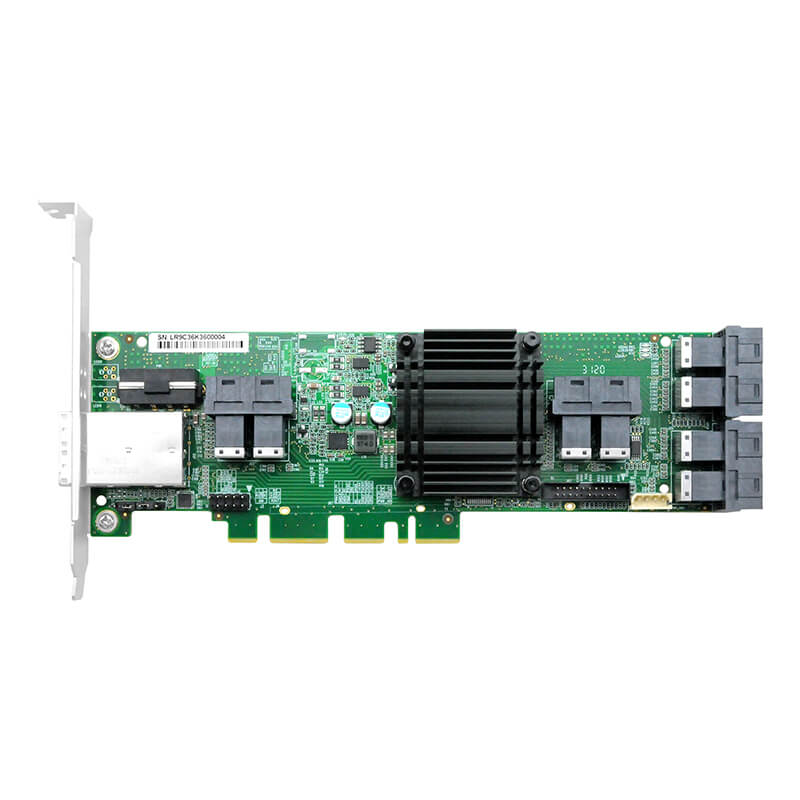

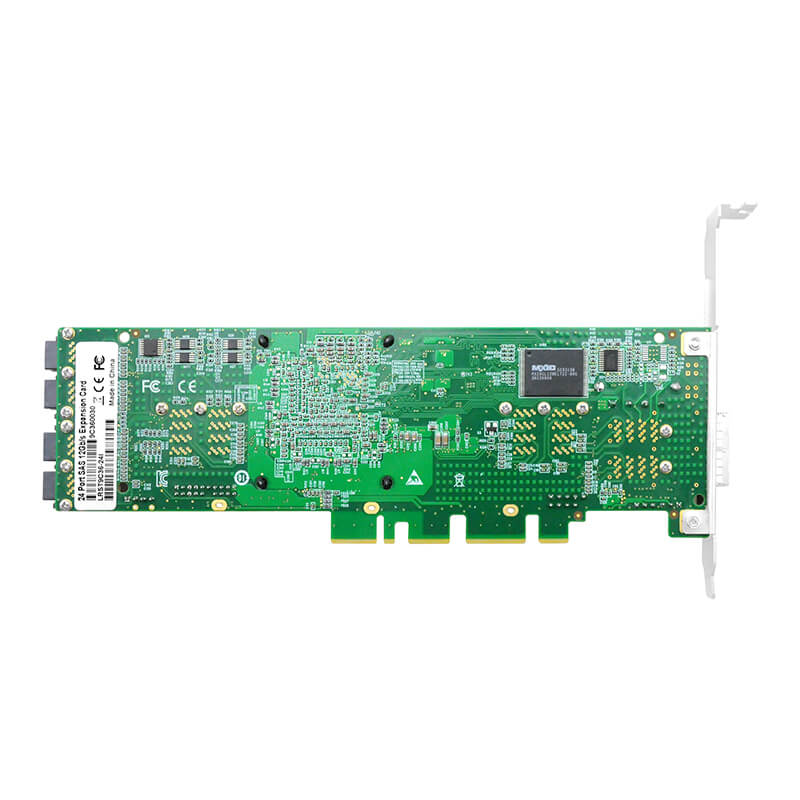

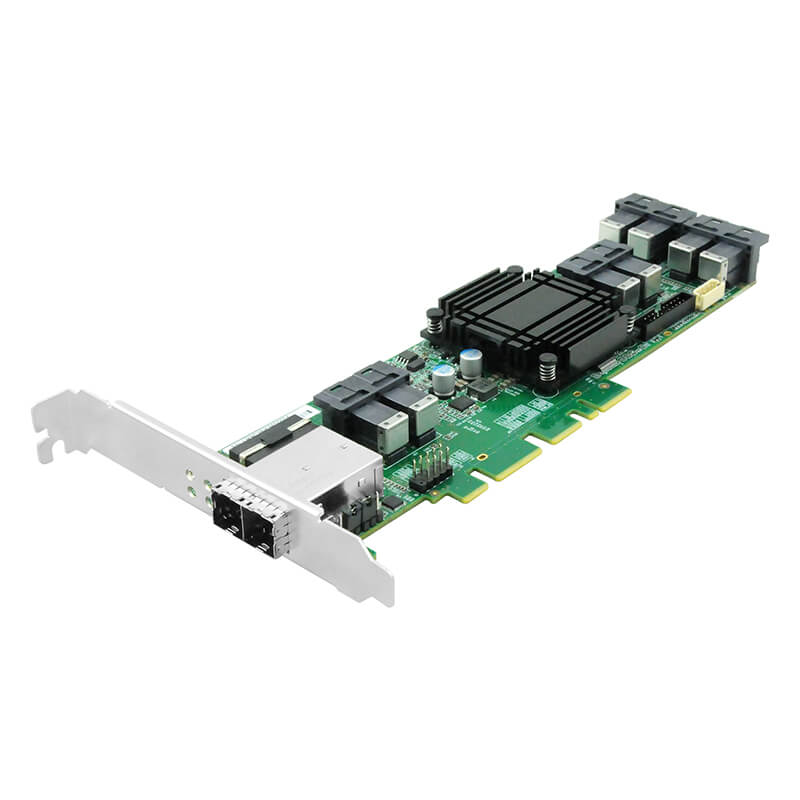

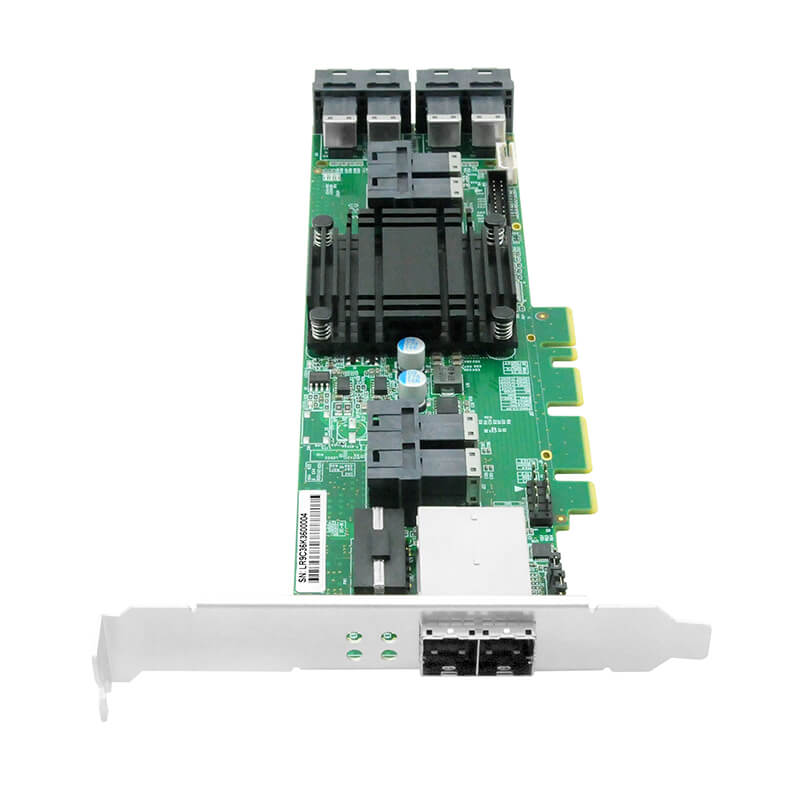

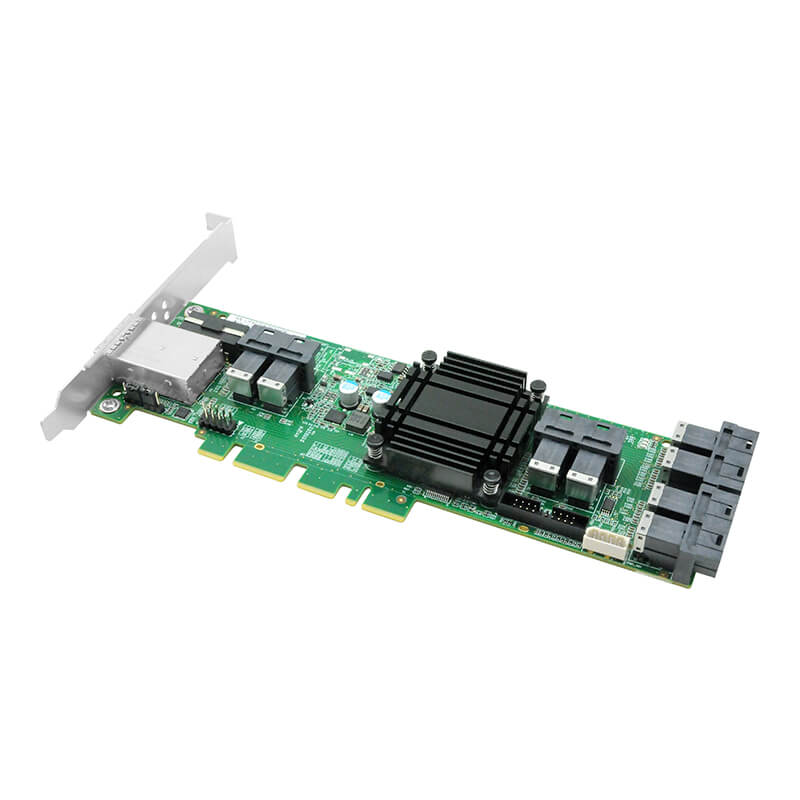

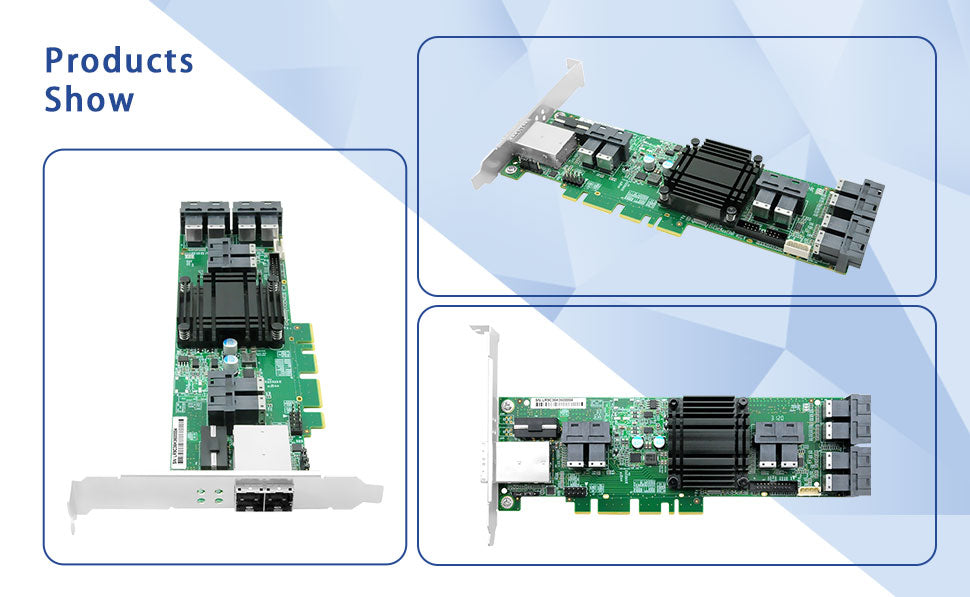

24-Port SFF-8643 SAS Adapter Card SAS35X36 12Gb/s-EXC SAS35X36-24I
24-Port SFF-8643 SAS Adapter Card SAS35X36 12Gb/s-EXC SAS35X36-24I
No se pudo cargar la disponibilidad de retiro
XIC EXC-SAS35X36-24I

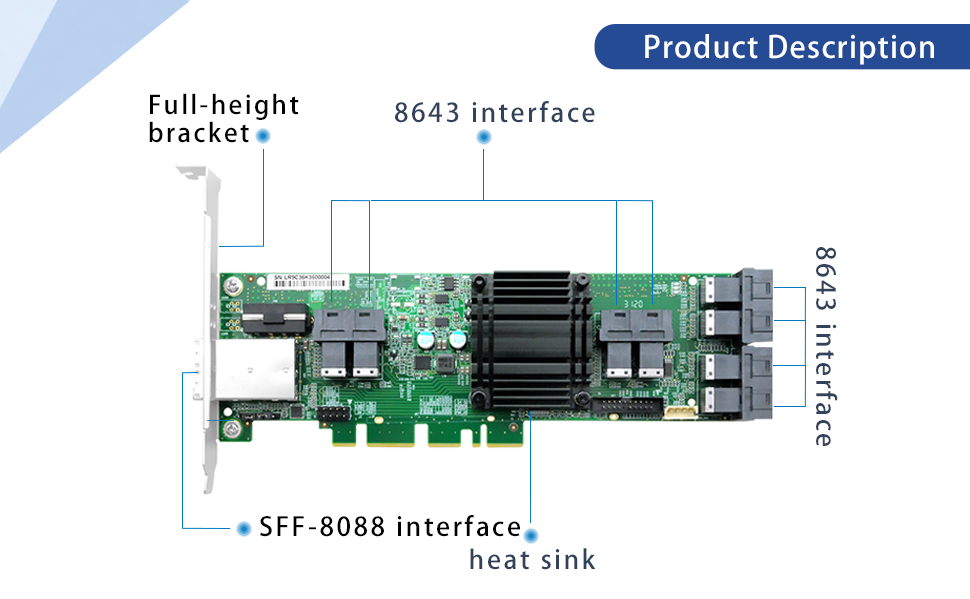

● Main Chipset: LSI SAS35X36
● Internal Interface: 6× SFF-8643 (x4 wide port)
● External Interface: 2× SFF-8644 (x4 wide port)
● Support: Up to 24× SAS / SATA / SSD 12Gb/s
● Host Bus Type: SAS / HBA dependent
● Bracket Height: Full height and low profile
● Form Factor: SAS expander / storage switching controller card

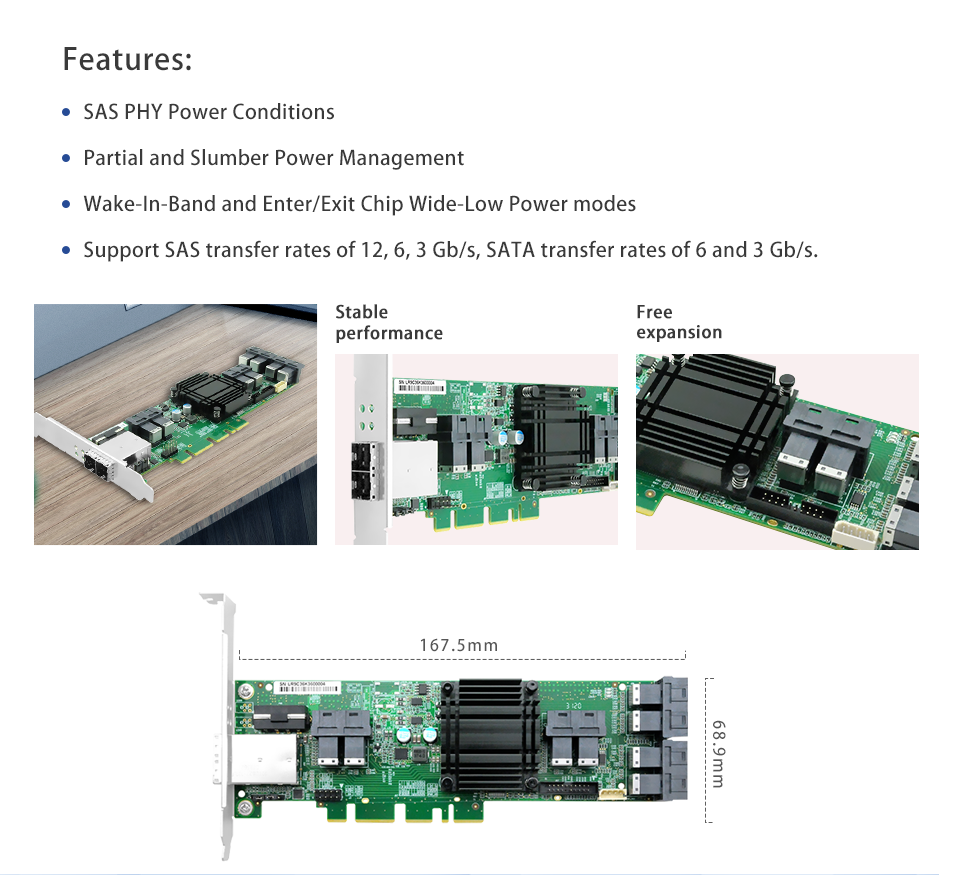

Features
● Based on LSI SAS35X36 12Gb/s SAS expander architecture
● Provides a 36-lane SAS expander switching architecture for high-density storage domain expansion

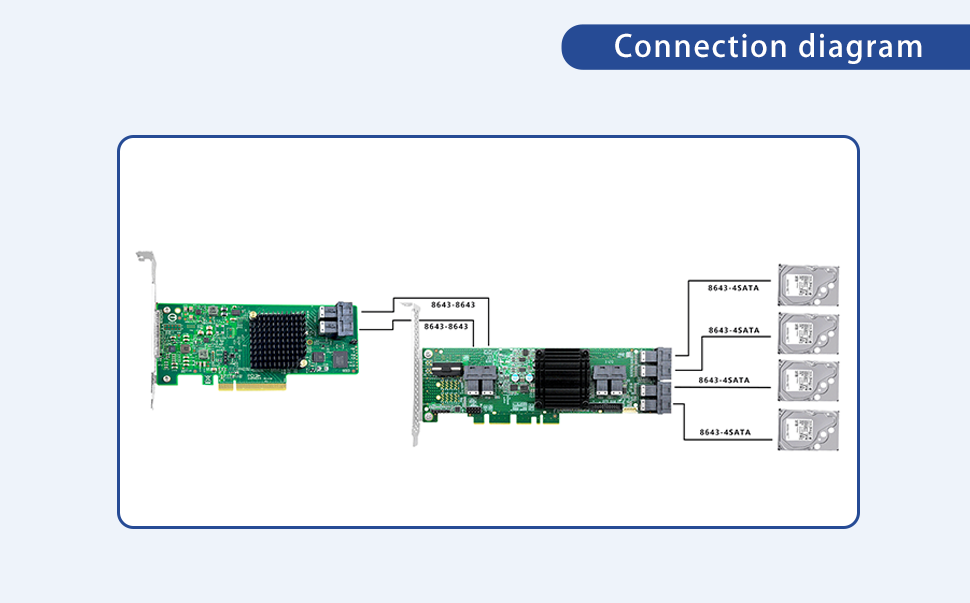

● 6× SFF-8643 (x4 wide port) for internal backplane connectivity
● 2× SFF-8644 (x4 wide port) for external JBOD / SAS enclosure expansion
● Supports SAS 12Gb/s and SATA 6Gb/s drives
● Designed for enterprise-class high-density storage scaling systems
● Enables unified internal and external SAS storage domain architecture
● Operates as SAS expander switching layer (non-RAID, non-processing architecture)
● Compatible with LSI SAS HBA / RAID controller ecosystems
● Includes full-height and low-profile brackets
Technical Parameters
| Item | Specification |
|---|---|
| Product Model | EXC-SAS35X36-24I |
| Chip Architecture | LSI SAS35X36 Expander |
| Internal Interface | 6× SFF-8643 (x4 wide port) |
| External Interface | 2× SFF-8644 (x4 wide port) |
| Supported Drives | Up to 24× SAS / SATA / SSD |
| Protocol | SAS 12Gb/s / SATA 6Gb/s |
| SAS Architecture | 36-lane SAS expander switching architecture |
| Transfer Rate | Up to 12Gb/s per lane |
| Function Type | SAS expander (storage domain switching layer) |
| Controller Dependency | SAS HBA / RAID controller required |
| Bracket Height | Full height and low profile |
| UEFI Support | Yes (host dependent) |
| OS Compatibility | Windows / Linux / VMware / FreeBSD / NAS systems |
| Operating Temperature | 5°C to 50°C |
| Storage Temperature | -25°C to 70°C |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
