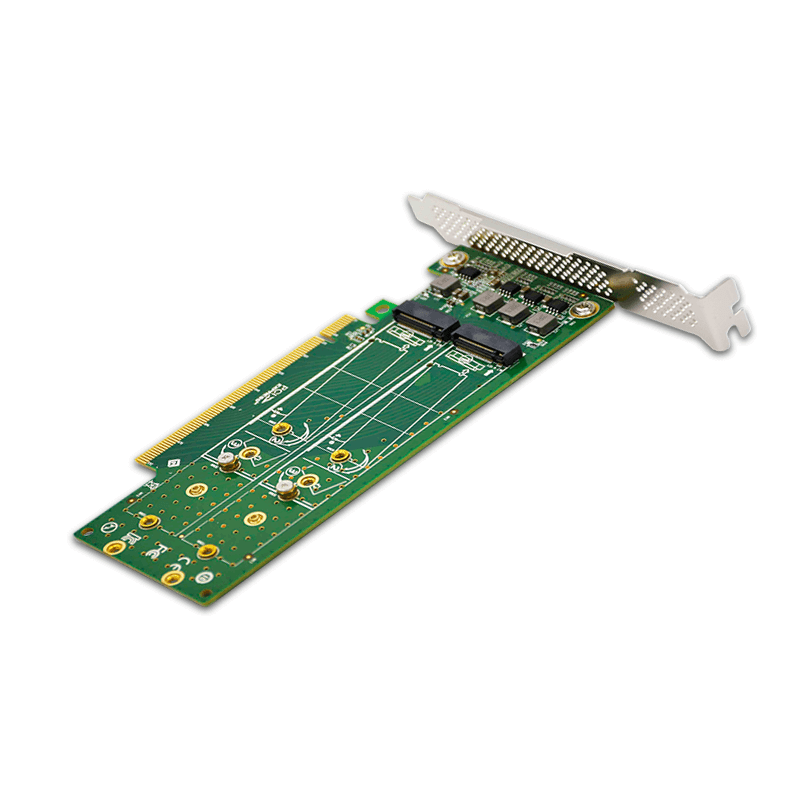

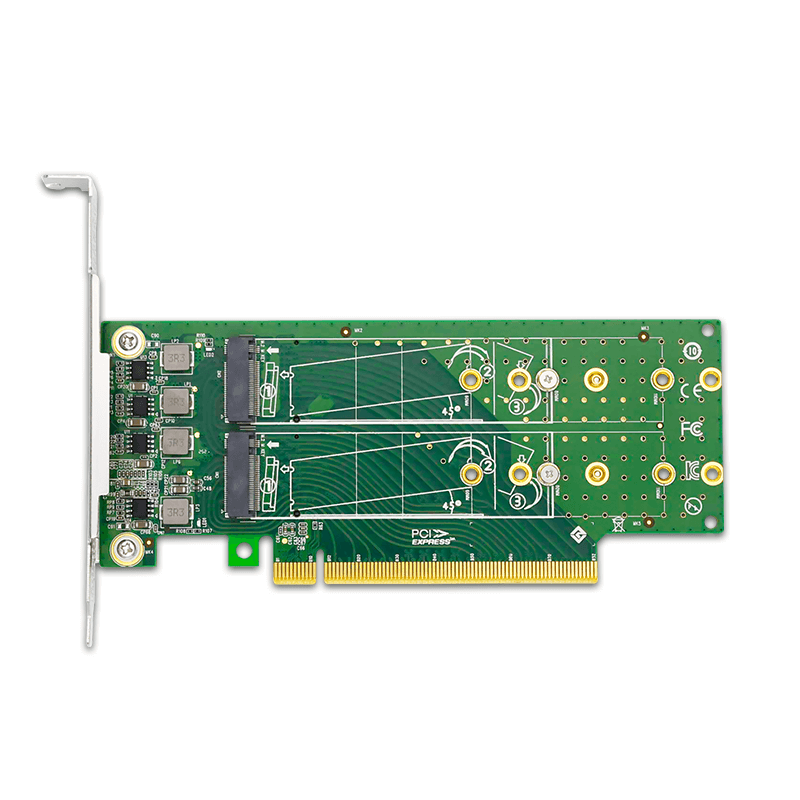

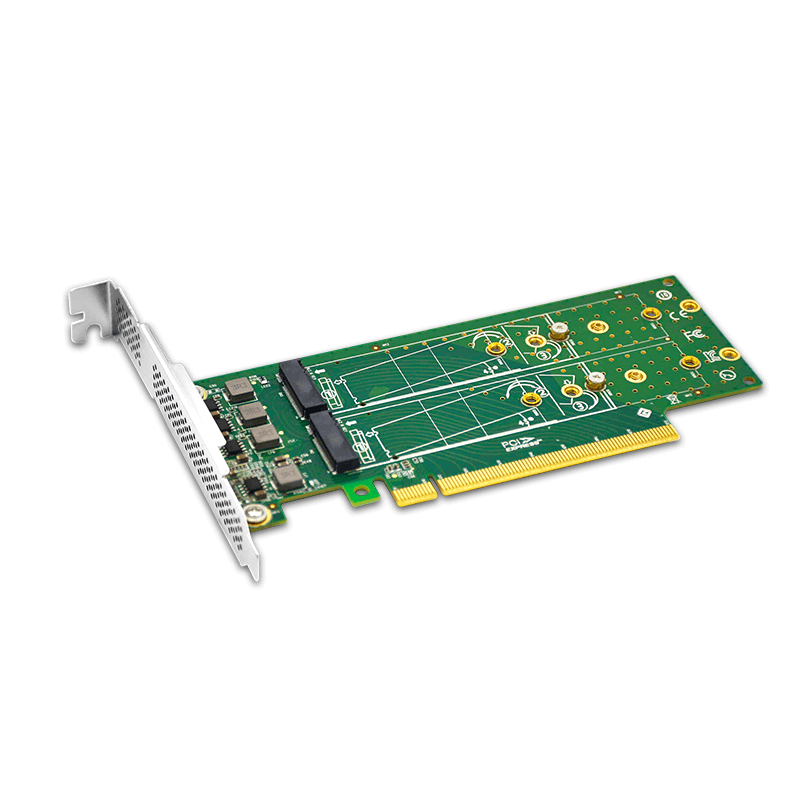

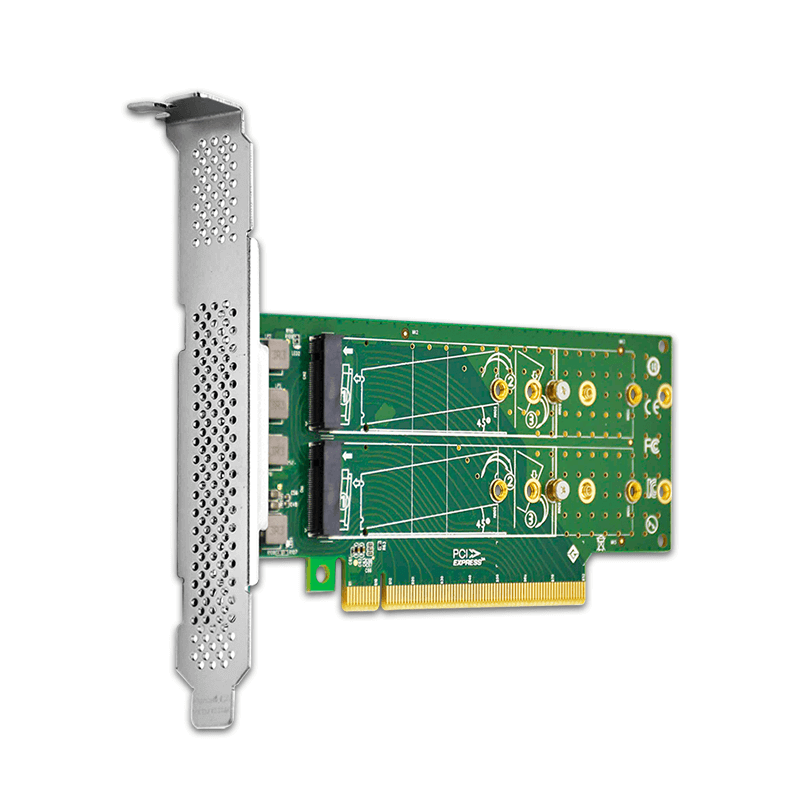

PCIe 4.0 x16 to 4-Port M.2 NVMe SSD Adapter- Low Profile-XIC PE3162-4IL
PCIe 4.0 x16 to 4-Port M.2 NVMe SSD Adapter- Low Profile-XIC PE3162-4IL
No se pudo cargar la disponibilidad de retiro
XIC PE3162-4IL
● Interface Type: 4× M.2 Connectors
● Support: 4× NVMe SSD (2230 / 2242 / 2260 / 2280 / 22110)
● Host Bus Type: PCIe 4.0 x16
● Bracket Height: Full height and low profile
● Form Factor: NVMe switch adapter card
Features
- Supports 4× M.2 NVMe SSDs simultaneously

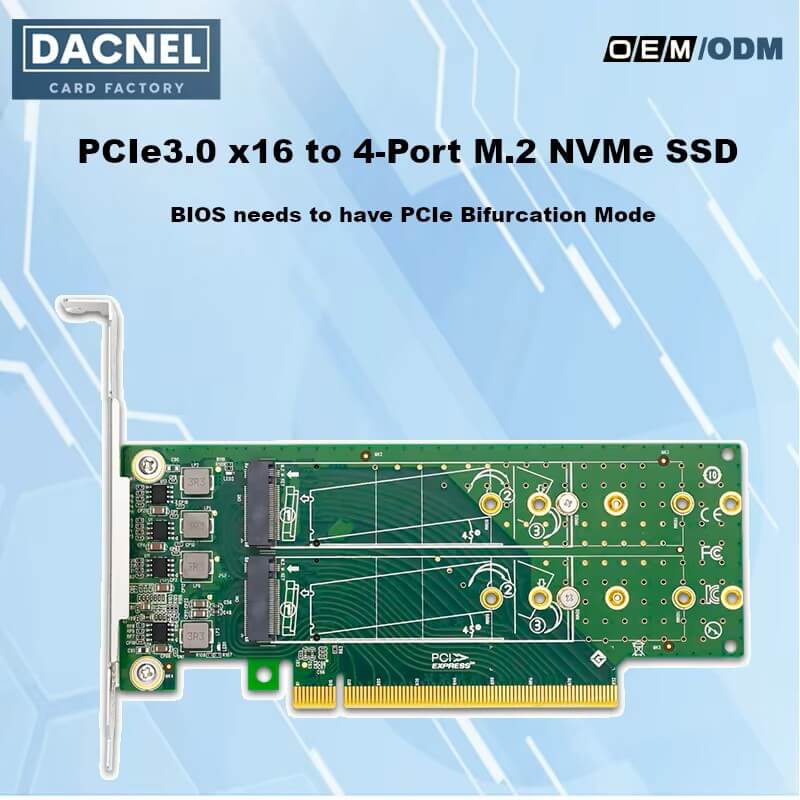

- Requires motherboard PCIe bifurcation support (x4/x4/x4/x4)
- Each SSD operates with independent PCIe lane allocation
- No RAID functionality, pure PCIe pass-through design
- Designed for high-performance NVMe storage expansion systems
- Includes full-height and low-profile brackets
Technical Parameters
| Item | Specifications |
|---|---|
| Product Model | STC PE3162-4IL |
| Product Type | PCIe NVMe Expansion Card |
| Interface Type | 4× M.2 Connectors |
| Support | 4× NVMe SSD (2230 / 2242 / 2260 / 2280/ 22110) |
| Host Bus Type | PCI Express 4.0 x16 |
| Storage Interface | M-Key M.2 NVMe |
| Protocol Support | NVMe |
| RAID Support | None |
| Bifurcation Requirement | Required (x4/x4/x4/x4) |
| Card Architecture | PCIe Switch / Lane Split Design |
| Bracket Height | Full height and low profile |
| UEFI Support | Yes |
| Supported Operating Systems | Windows / Linux / VMware |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
