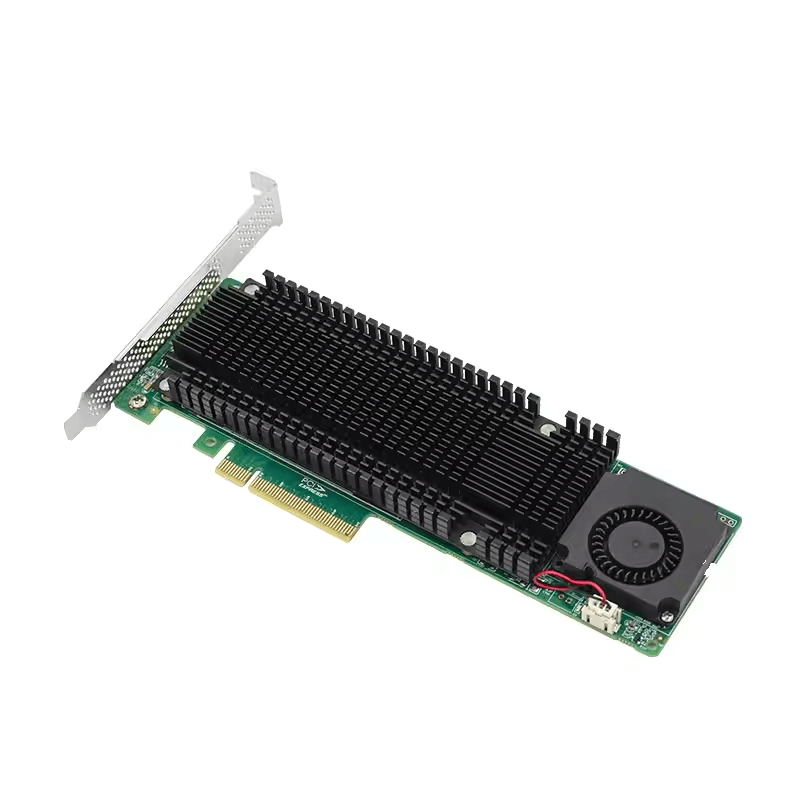

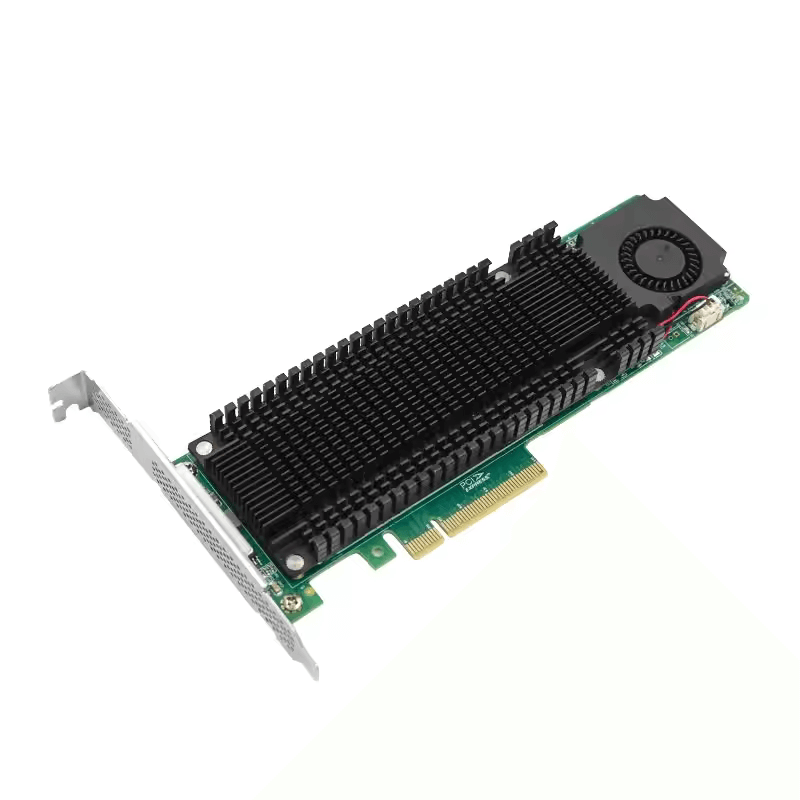

PCIe3.0 x8 to 2-Port M.2 NVMe Raid Adapter Marvell 88NR2241 Controller- 2241-2IR
PCIe3.0 x8 to 2-Port M.2 NVMe Raid Adapter Marvell 88NR2241 Controller- 2241-2IR
No se pudo cargar la disponibilidad de retiro
2241-2IR
● Controller: Marvell 88NR2241 NVMe RAID Controller
● Interface Type: 1× SFF-8643 Connector (PCIe signal input)
● Support: 2× M.2 NVMe SSD (2242/2260/2280)
● Host Bus Type: PCIe 3.0 x8
● Bracket Height: Full height and low profile
● Form Factor: NVMe RAID controller card
Download：
Marvell 2241 RAID Card Supported Motherboards
Features
- Supports 2× M.2 NVMe SSDs (PCIe-based storage only)
- Based on Marvell 88NR2241 NVMe RAID architecture
- PCIe 3.0 x8 high-bandwidth NVMe storage controller design
- Hardware NVMe RAID engine for SSD aggregation
- Supports RAID 0 / RAID 1 / JBOD configurations
- Native NVMe protocol support (no SATA, no SAS)
- High-performance low-latency NVMe data processing
- Suitable for servers, workstations and storage systems
- Includes full-height and low-profile brackets

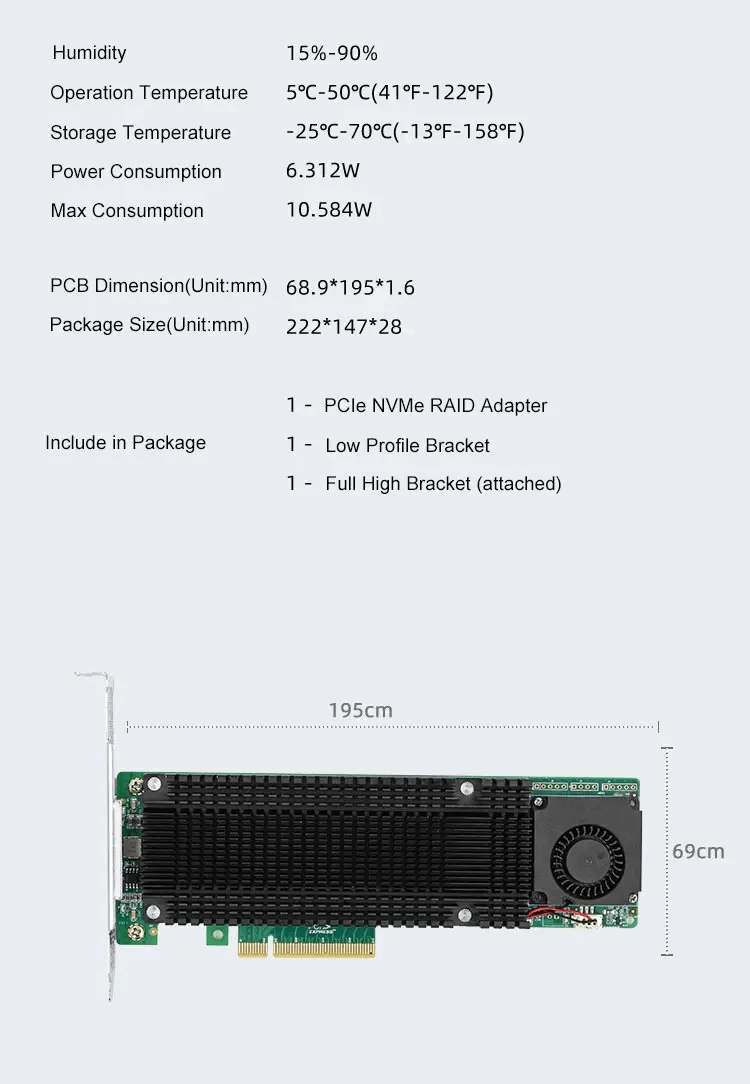

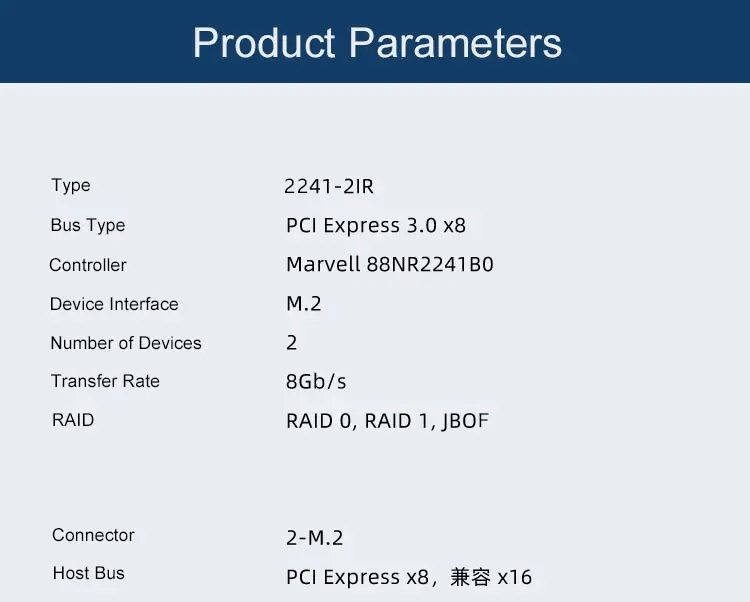

Technical Parameters
| Item | Specifications |
|---|---|
| Product Model | 2241-2IR |
| Product Type | NVMe RAID Controller Card |
| Controller | Marvell 88NR2241 |
| Interface Type | 1× SFF-8643 Connector (PCIe input) |
| Support | 2× M.2 NVMe SSD |
| Host Bus Type | PCI Express 3.0 x8 |
| Storage Interface | 2× M.2 NVMe (PCIe) |
| Protocol Support | NVMe |
| RAID Support | RAID 0 / 1 / JBOD |
| Card Mode | Hardware NVMe RAID |
| Cooling | Passive heatsink |
| Bracket Height | Full height and low profile |
| UEFI Support | Yes |
| Supported Operating Systems | Windows / Linux / VMware / FreeBSD / TrueNAS (limited mode) |
| Driver Support | Marvell NVMe RAID driver |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
