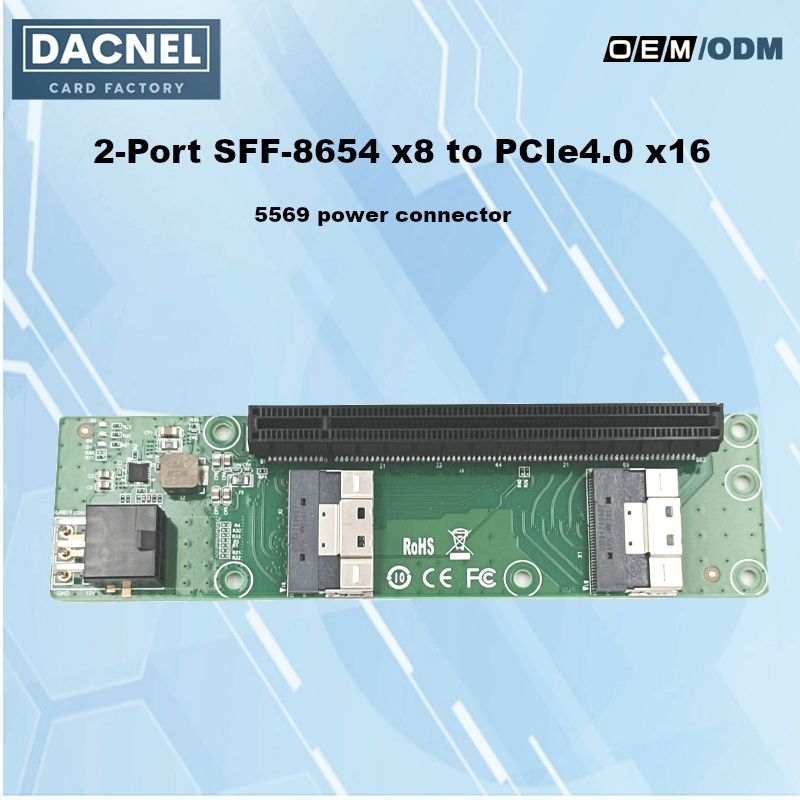

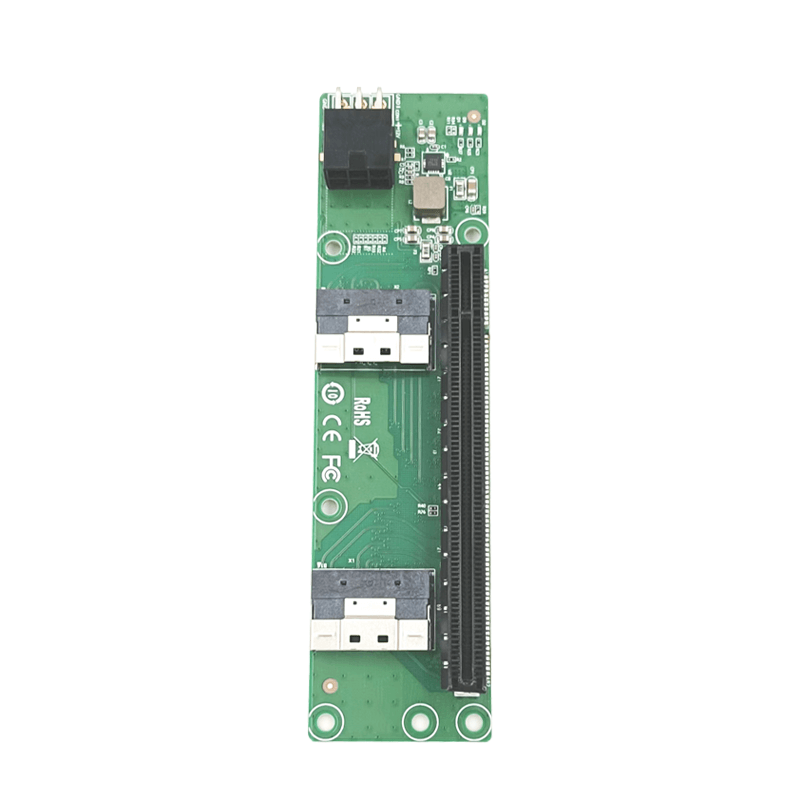

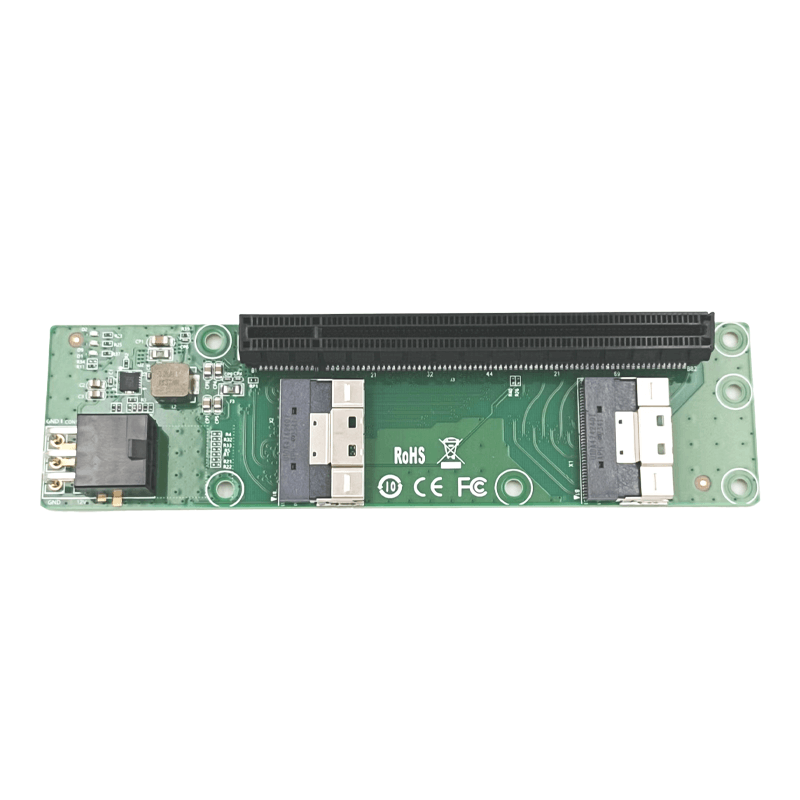

2-Port SlimSAS x8 to PCIe 4.0 x16 Slot Riser- XIC 5416PE
2-Port SlimSAS x8 to PCIe 4.0 x16 Slot Riser- XIC 5416PE
Verfügbarkeit für Abholungen konnte nicht geladen werden
XIC 5416PE

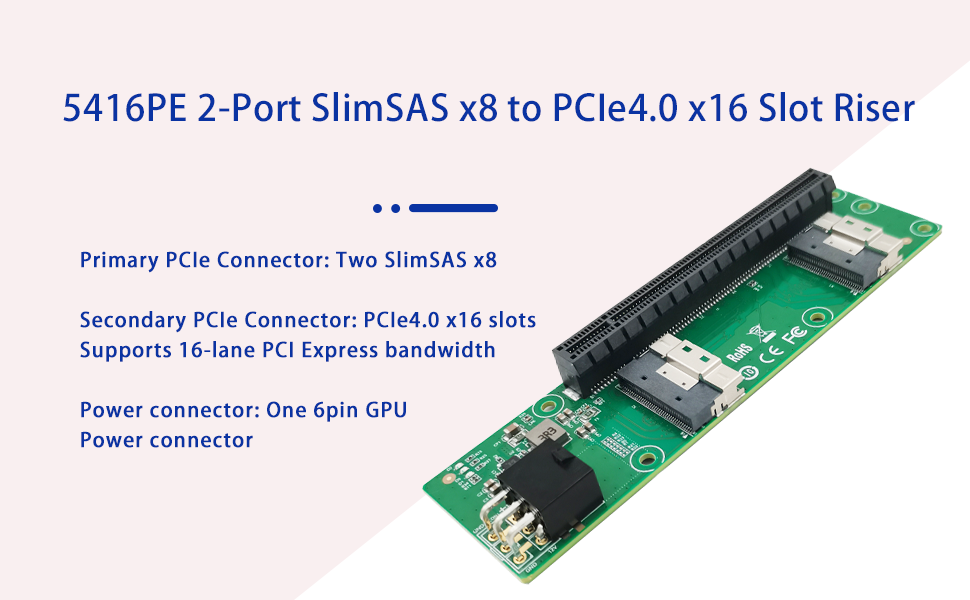

● Interface Type: SFF-8654 (SlimSAS x8) + 5569 Power Connector + PCIe x16 Slot
● Interface Bus Type: PCIe 4.0 (x8 or x8+x8 configuration)
● Host Bus Type: SlimSAS x8 / dual-port architecture
● Form Factor: SlimSAS to PCIe x16 GPU expansion riser card
Download:
Features
● Supports PCIe 4.0 high-speed GPU expansion
● Uses SFF-8654 SlimSAS x8 interface for host connection
● Provides one PCIe x16 mechanical slot
● Supports PCIe x8 single-link operation
● Supports dual-port configuration for x8 + x8 bandwidth aggregation
● Uses SlimSAS to PCIe x16 riser architecture for GPU expansion
● Equipped with 5569 power connector for stable auxiliary power input
● Designed for high-performance PCIe 4.0 computing environments
● Optimized PCB design for high-speed signal integrity
● Suitable for compact multi-GPU or accelerator deployment scenarios

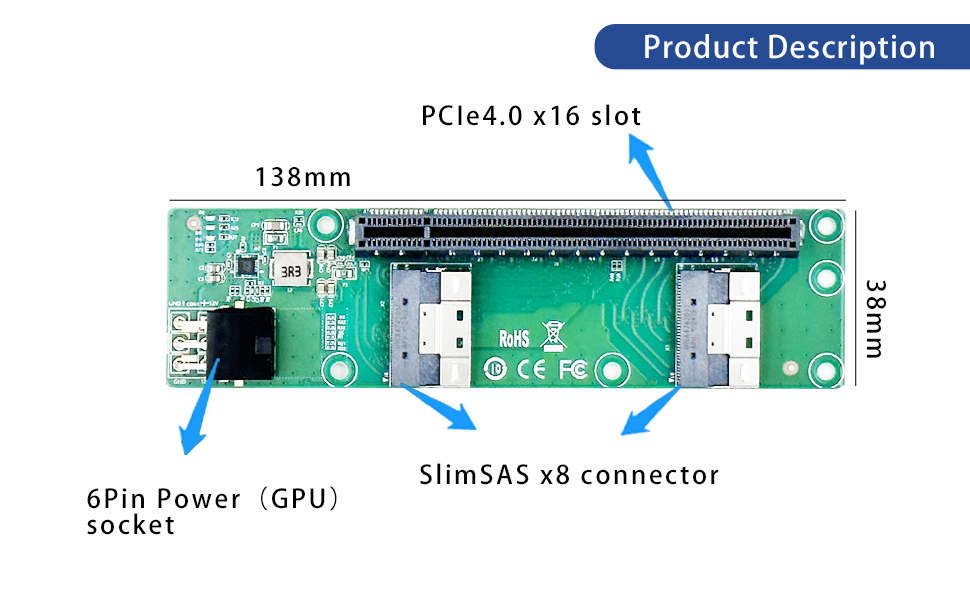

Technical Parameters
| Item | Specification |
|---|---|
| Product Model | XIC 5416PE |
| Product Type | SlimSAS to PCIe x16 GPU Riser Adapter |
| Host Interface | SFF-8654 (SlimSAS x8) |
| Device Interface | 1× PCIe x16 mechanical slot |
| PCIe Generation | PCIe 4.0 |
| Electrical Bandwidth | x8 or x8+x8 (configuration dependent) |
| Power Interface | 5569 power connector |
| Slot Architecture | PCIe x16 mechanical |
| Signal Architecture | Direct PCIe pass-through |
| Operating Temperature | 5°C to 50°C |
| Storage Temperature | -25°C to 70°C |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
