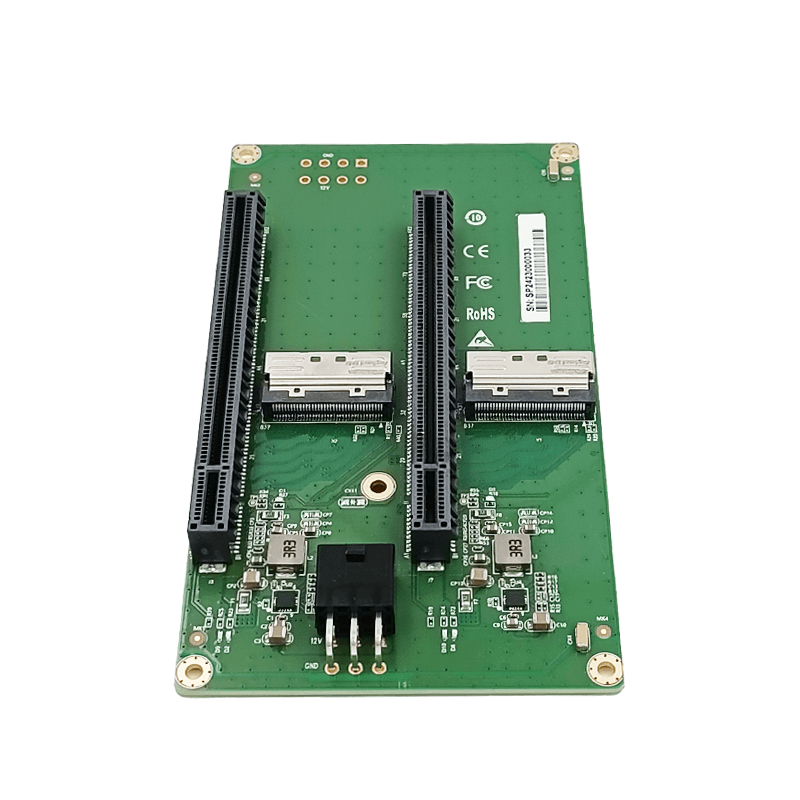

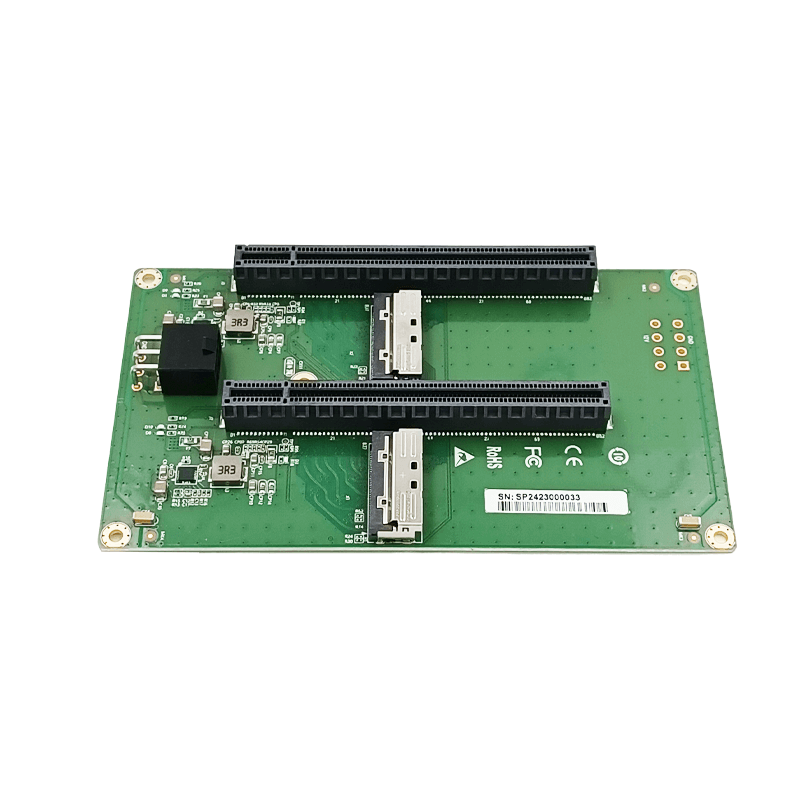

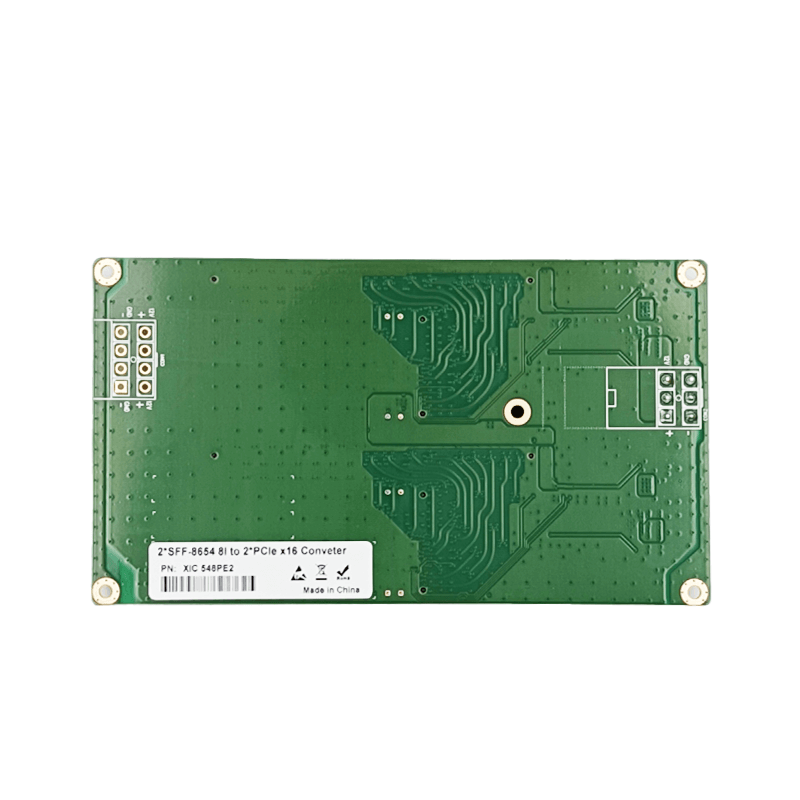

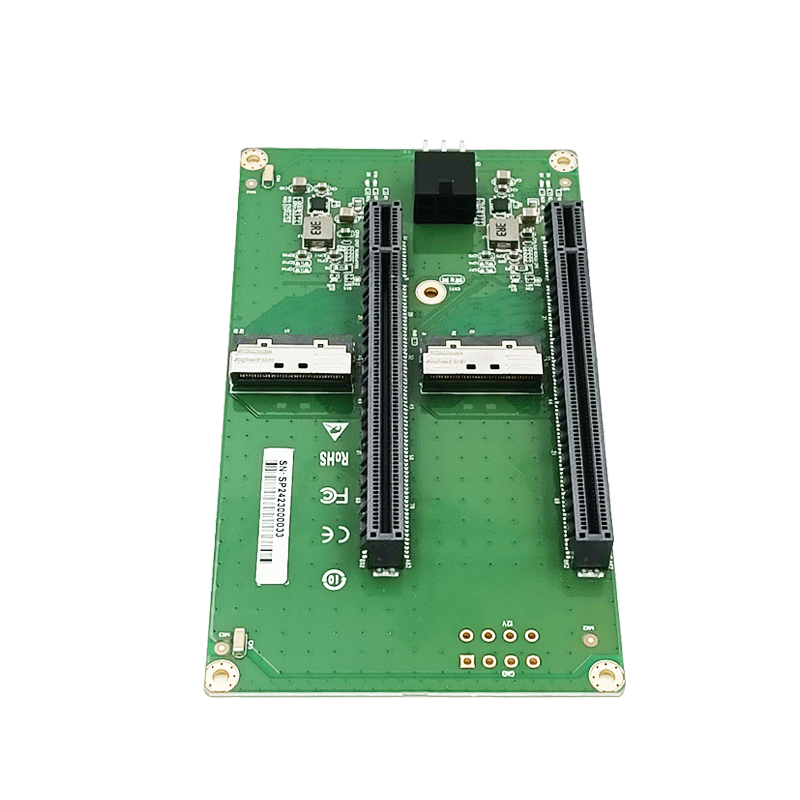

2 Port MCIO to 2 PCIe5.0 x16 Slot Adapter - XIC 0548PE2
2 Port MCIO to 2 PCIe5.0 x16 Slot Adapter - XIC 0548PE2
Verfügbarkeit für Abholungen konnte nicht geladen werden
XIC 058PE2

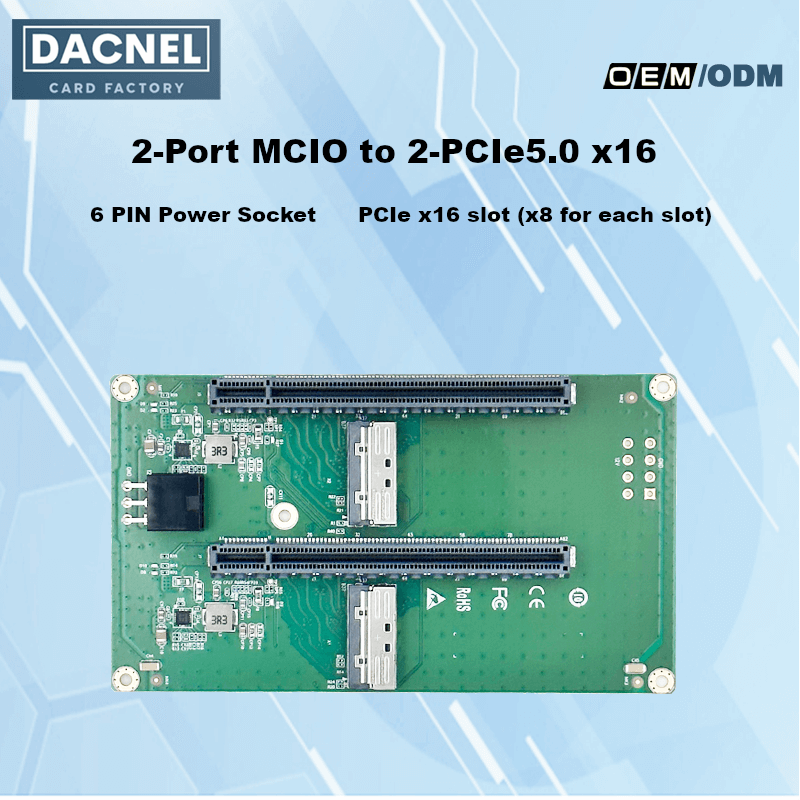

● Interface Type: 2× MCIO + 6PIN Power Socket + 2× PCIe x16 Slot
● Interface Bus Type: PCIe x16 slot (x8 electrical per slot)
● Host Bus Type: PCIe 5.0 / PCIe switching or bifurcation dependent
● Form Factor: Dual PCIe x16 slot expansion adapter card
Download:
Features
● Supports dual MCIO 8i high-speed input connections
● Provides two PCIe x16 mechanical slots
● Each PCIe slot operates at PCIe x8 electrical bandwidth
● Requires platform support for PCIe bifurcation or PCIe switch architecture
● Uses PCIe Gen5 high-quality SMT slot design
● Uses 85Ω ultra low-loss PCB for high-speed signal integrity
● Integrated 6PIN power input for auxiliary power delivery
● Designed for multi-device PCIe expansion systems
● Built for GPU / accelerator / high-bandwidth PCIe devices
● Direct PCIe pass-through architecture (no onboard RAID or processing)
Technical Parameters
| Item | Specification |
|---|---|
| Product Model | XIC 058PE2 |
| Product Type | Dual MCIO to Dual PCIe x16 Slot Adapter |
| Input Interface | 2× MCIO 8i |
| Power Interface | 6PIN auxiliary power socket |
| Output Interface | 2× PCIe x16 mechanical slots |
| Electrical Bandwidth | PCIe x8 per slot |
| PCIe Generation | PCIe 5.0 |
| Slot Architecture | Dual-slot PCIe expansion |
| Signal Architecture | PCIe pass-through / platform dependent |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 70°C |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
