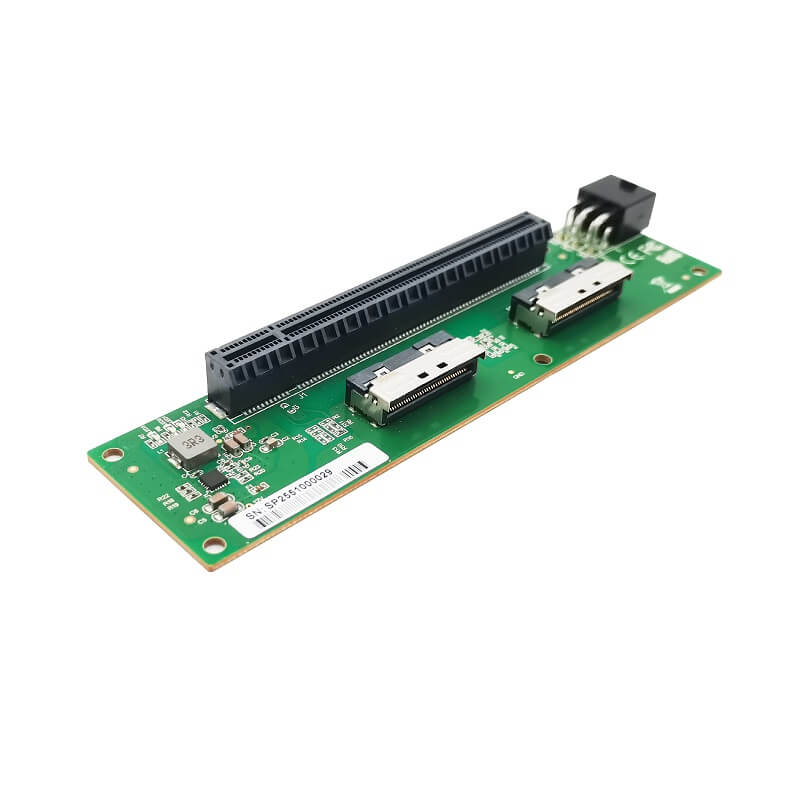

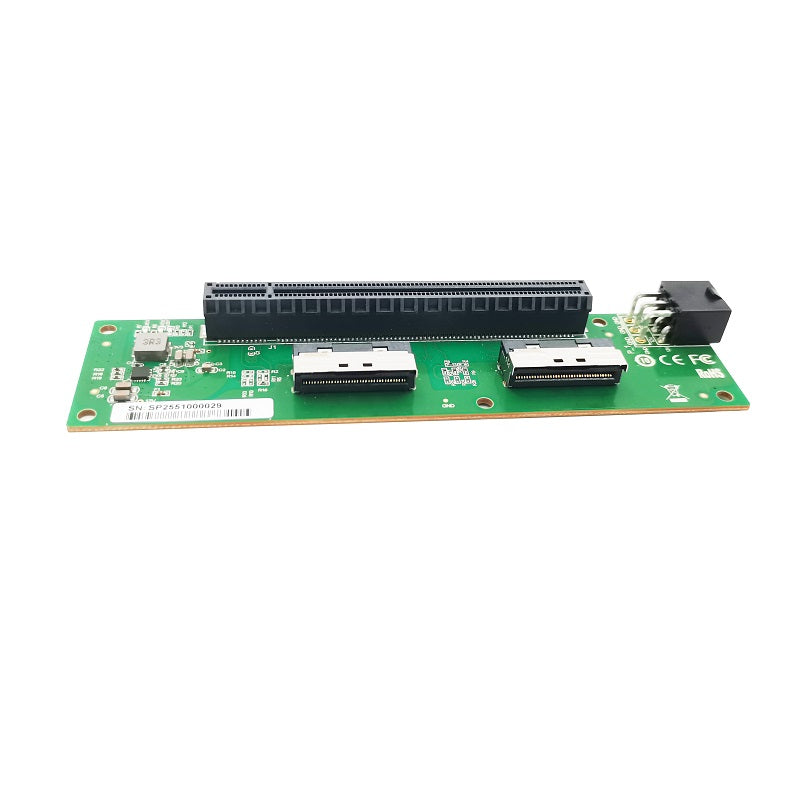

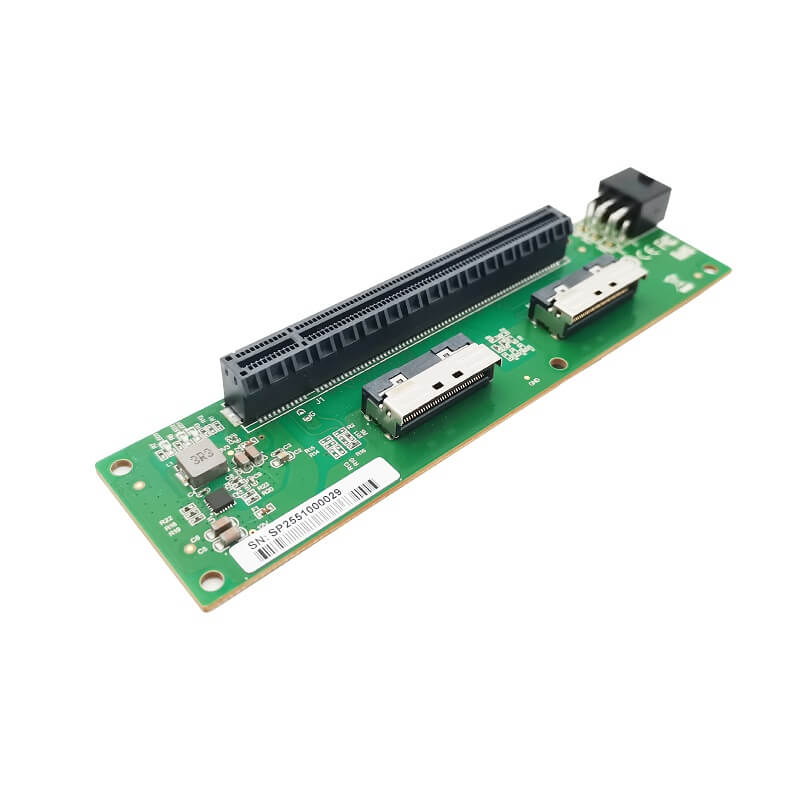

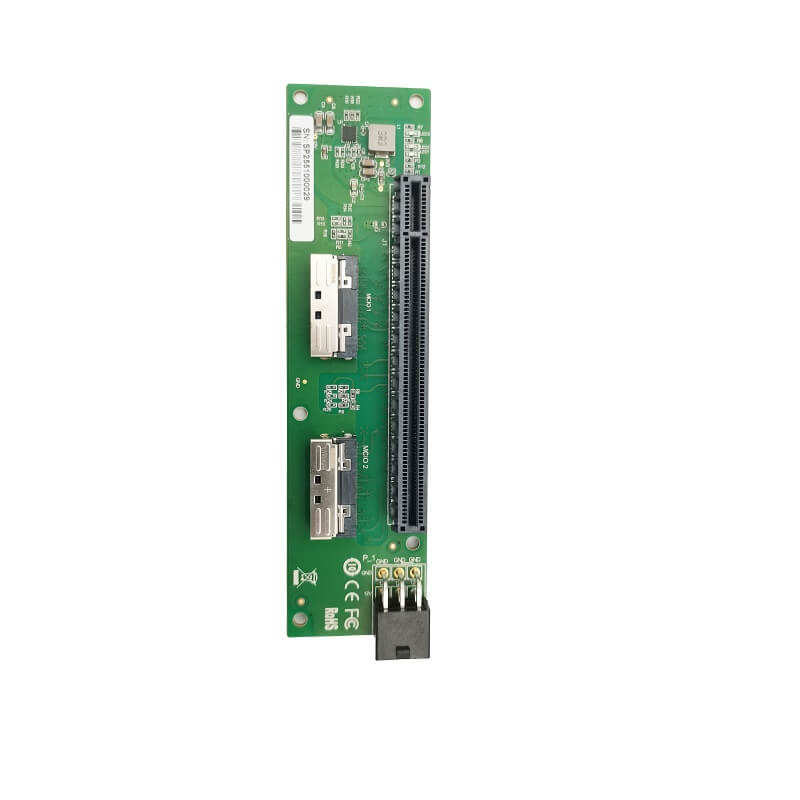

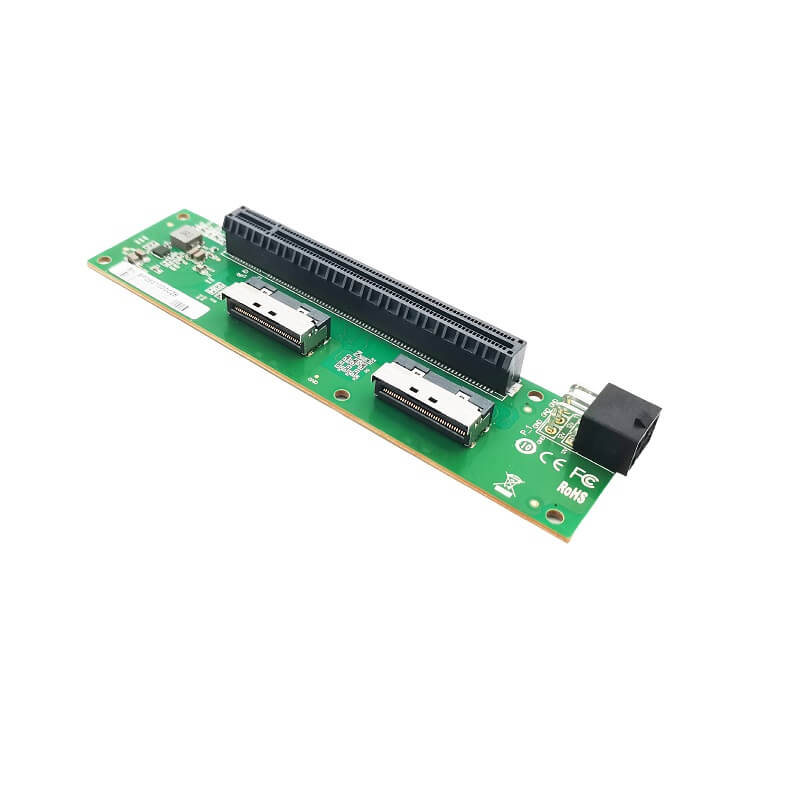

MCIO 8i to PCIe Gen5 x16 Riser Card for Server and Enterprise Systems-XIC 0516PEV4
MCIO 8i to PCIe Gen5 x16 Riser Card for Server and Enterprise Systems-XIC 0516PEV4
Verfügbarkeit für Abholungen konnte nicht geladen werden
XIC 0516PEV4
● Interface Type: 2× MCIO 8i (x8 wide port)
● Output Interface: 1× PCIe x16 Mechanical and Electrical Slot
● Support: PCIe Gen5 x16 electrical bandwidth
● Host Bus Type: PCIe 5.0
● Form Factor: PCIe Gen5 MCIO to PCIe slot adapter card
Download:
Features
● Supports dual PCIe 5.0 MCIO 8i input connections
● Provides one PCIe x16 mechanical and electrical slot output
● Supports PCIe Gen5 x8 mode using a single MCIO connection
● Supports PCIe Gen5 x16 mode using dual MCIO connections
● x16 mode requires both MCIO inputs from the same CPU root port
● Lane ordering must be 0–7 → 8–15
● Reversed lane mapping is not supported
● Built with high-quality PCIe Gen5 SMT slot
● Uses 85Ohm ultra low-loss PCB design for high-speed signal integrity
● Integrated GPU power connector for external 12V power delivery
● Built-in 12V → 3.3V buck voltage regulator
● Designed for PCIe Gen5 GPU and high-bandwidth expansion applications
Technical Parameters
| Item | Specification |
|---|---|
| Product Model | XIC 0516PEV4 |
| Product Type | PCIe Gen5 MCIO to PCIe Slot Adapter |
| Input Interface | 2× MCIO 8i (x8 wide port) |
| Output Interface | 1× PCIe x16 mechanical and electrical slot |
| PCIe Generation | PCIe 5.0 |
| Electrical Bandwidth | PCIe Gen5 x16 |
| Operating Modes | x8 mode / x16 mode |
| PCB Design | 85Ohm ultra low-loss PCB |
| Power Input | External GPU power connector |
| Voltage Regulation | Integrated 12V → 3.3V buck regulator |
| Lane Requirement | Same CPU root port required for x16 mode |
| Lane Mapping | 0–7 → 8–15 |
| Signal Architecture | Direct PCIe pass-through |
| Operating Temperature | 5°C to 50°C |
| Storage Temperature | -25°C to 70°C |
