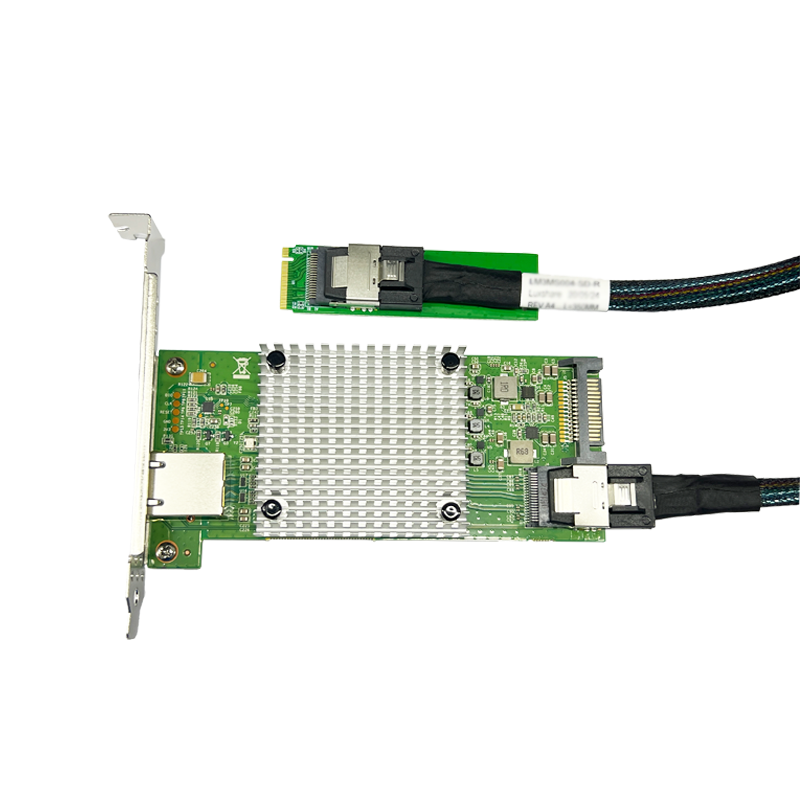

M.2 M key to 10G Copper Network Card Set Intel 82599
M.2 M key to 10G Copper Network Card Set Intel 82599
Verfügbarkeit für Abholungen konnte nicht geladen werden
XIC 82599 RJ45 M.2
● Main Chipset: Intel 82599
● Interface Type: 1× RJ45 Connector
● Support Equipment: 10Gb/s Ethernet
● Host Bus Type: M.2 PCIe x4
● Form Factor: M.2 to 10GbE network adapter
Features
● Built with Intel 82599 10GbE Ethernet controller
● Converts M.2 PCIe interface into 10Gb Ethernet connectivity
● Provides 1× RJ45 10GBASE-T network port
● Supports PCIe x4 host bandwidth architecture
● Designed for compact systems and embedded platforms
● Supports high-speed network communication up to 10Gb/s
● Optimized for virtualization, NAS, firewall, and server applications
● Supports low CPU utilization with Intel networking architecture
● Stable Intel driver ecosystem with broad OS compatibility
● Includes full-height and low-profile brackets
Technical Parameters
| Item | Specification |
|---|---|
| Product Model | XIC 82599 RJ45 M.2 |
| Product Type | M.2 to 10Gb Ethernet Adapter |
| Main Chipset | Intel 82599 |
| Host Interface | M.2 PCIe x4 |
| Network Interface | 1× RJ45 10GbE |
| Ethernet Standard | 10GBASE-T |
| Transfer Rate | Up to 10Gb/s |
| Controller Architecture | Intel 82599 Ethernet Controller |
| Bracket Height | Full height and low profile |
| UEFI Support | Yes |
| OS Compatibility | Windows Server, Linux, VMware ESXi, FreeBSD, pfSense, OPNsense |
| Operating Temperature | 5°C to 50°C |
| Storage Temperature | -25°C to 70°C |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
