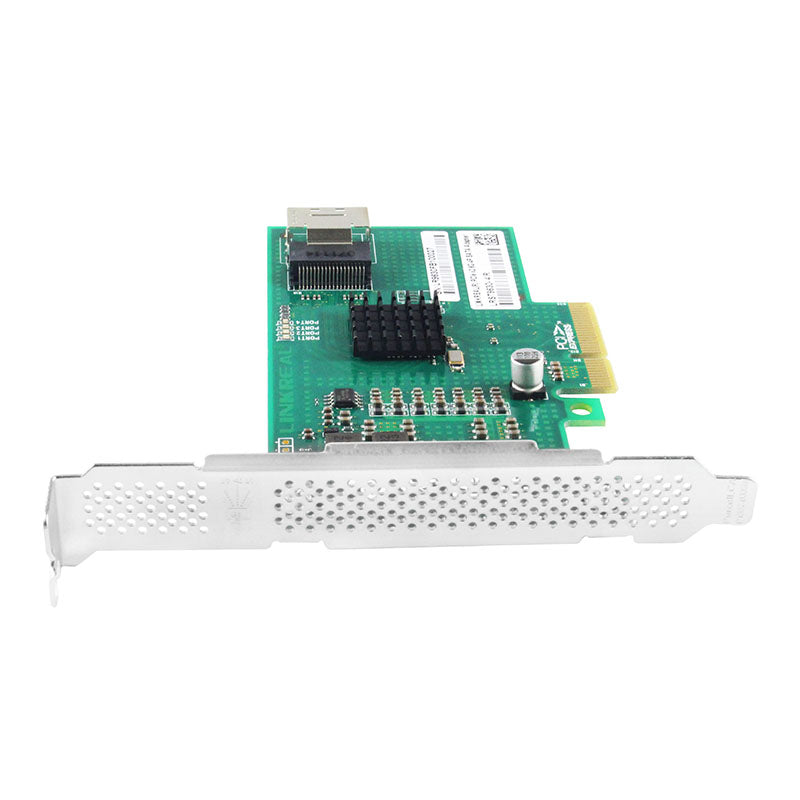

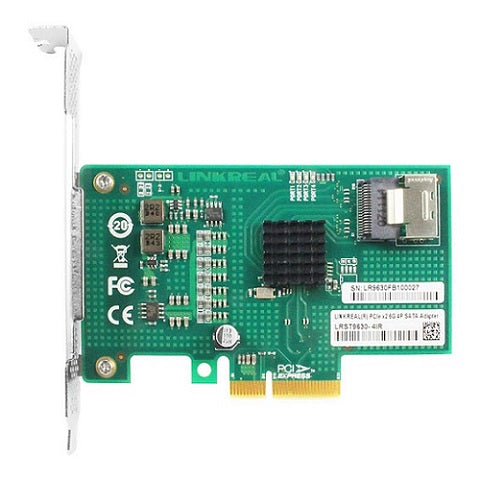

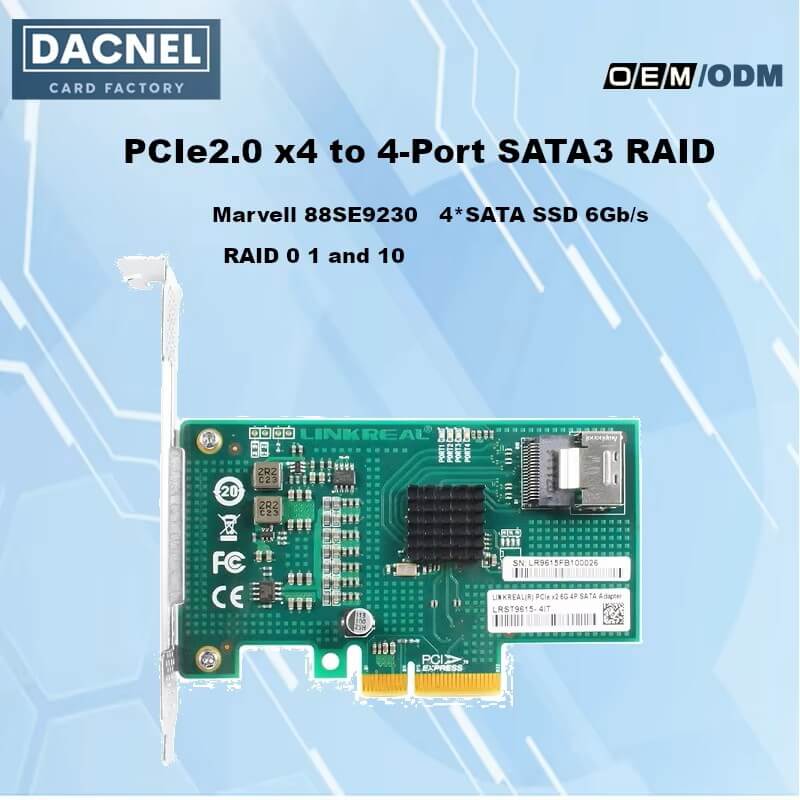

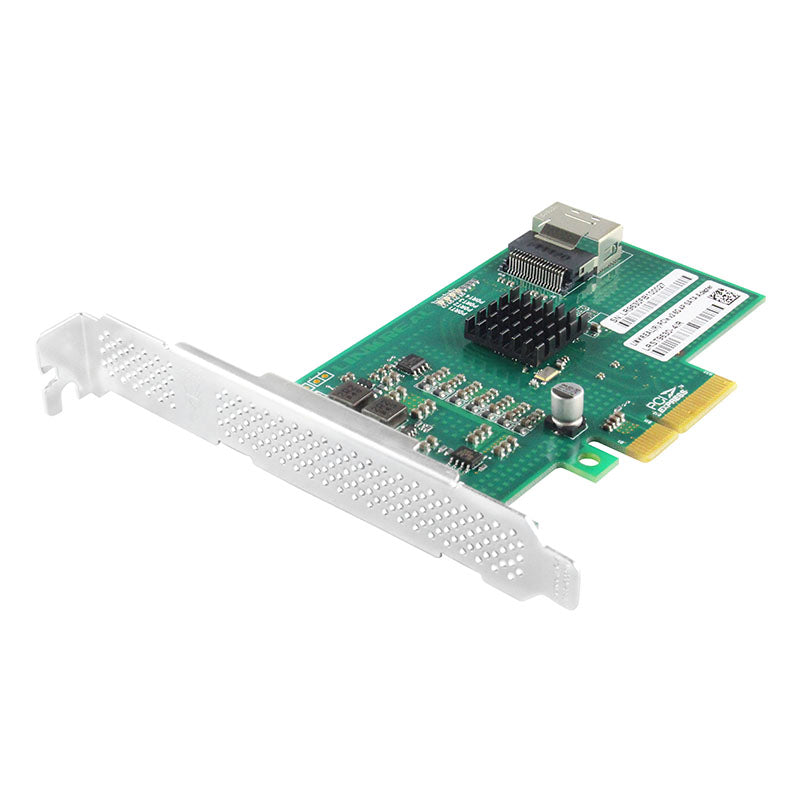

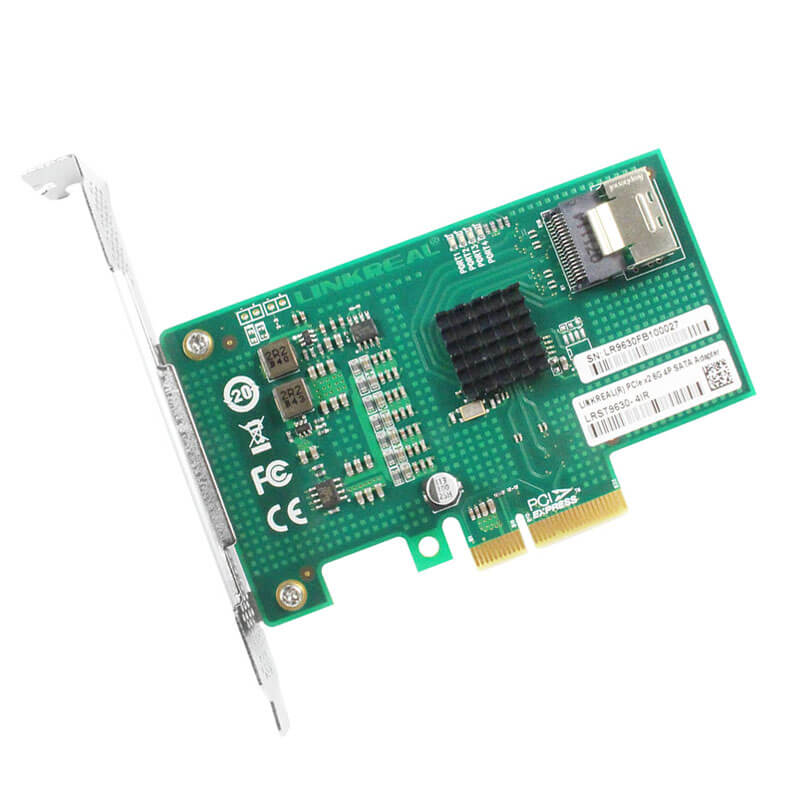

4 Port 6Gb/s PCIe x4 to SATA 3 RAID Card-HBA 9230-4I X4
4 Port 6Gb/s PCIe x4 to SATA 3 RAID Card-HBA 9230-4I X4
Couldn't load pickup availability
HBA 9230-4I X4
● Controller: Marvell 88SE9230 (SATA 6Gb/s RAID Controller)
● Ports: 1x Mini SAS SFF-8087 (4x SATA via breakout)
● Interface: PCIe 2.0 x4
● Bracket Height: Full height and low profile
● Cabling: Mini SAS SFF-8087 to 4× SATA breakout
Download
Features
- Supports up to 4 SATA HDDs or SSDs
- Based on Marvell 88SE9230 SATA RAID controller chipset
- PCIe 2.0 x4 interface for stable multi-drive bandwidth
- SATA III 6Gb/s per channel for standard storage devices
- Supports basic hardware RAID 0 / 1 (firmware-based RAID engine)
- Higher bandwidth PCIe x4 design compared to x1 version for improved performance stability
- Suitable for desktop, NAS and entry-level server storage expansion
- Includes full-height and low-profile brackets
Technical Parameters
| Item | Specifications |
|---|---|
| Product Model | HBA 9230-4I X4 |
| Product Type | SATA RAID / Storage Expansion Card |
| Vertical Segment | Desktop / Entry NAS / Storage |
| Controller | Marvell 88SE9230 |
| Host Interface | PCI Express 2.0 x4 |
| SATA Interface Speed | 6Gb/s SATA |
| Ports | 1x SFF-8087 (4× SATA via breakout) |
| Supported Devices | Up to 4 SATA HDDs or SSDs |
| SAS Support | Not supported |
| Card Mode | RAID / AHCI (firmware-based) |
| RAID Support | RAID 0 / 1 |
| Cable Type | SFF-8087 to 4× SATA breakout cable |
| Bracket Height | Full height and low profile |
| Cooling | Passive heatsink |
| UEFI Support | Yes |
| Supported Operating Systems | Windows / Linux / VMware / FreeBSD / NAS systems |
| Driver Support | Marvell 88SE9230 native driver support |
OEM/ODM
OEM/ODM
Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.
ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.
Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com
Shipping & Returns
Shipping & Returns
Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.
Quality Management
Quality Management
Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.
Handling & Care Instructions
Handling & Care Instructions
To maintain optimal performance and prevent damage, please follow these guidelines:
- Wear Gloves When Handling:
Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance. - Avoid Direct Contact:
Do not touch the gold fingers or electronic components directly. - Keep Dry and Clean:
Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination. - ESD Protection:
Use proper anti-static measures when installing or removing the card.
