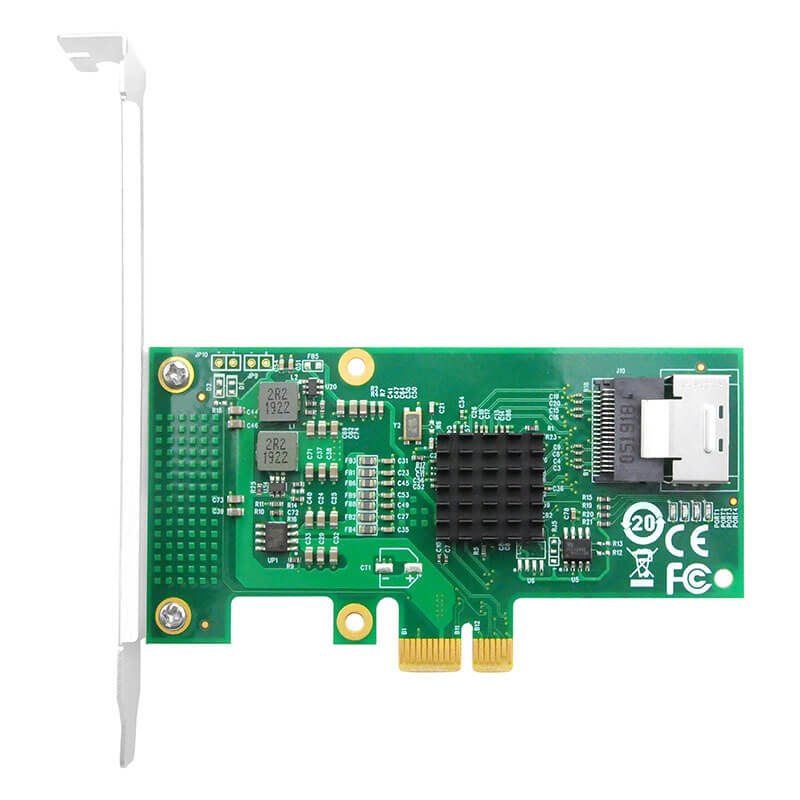

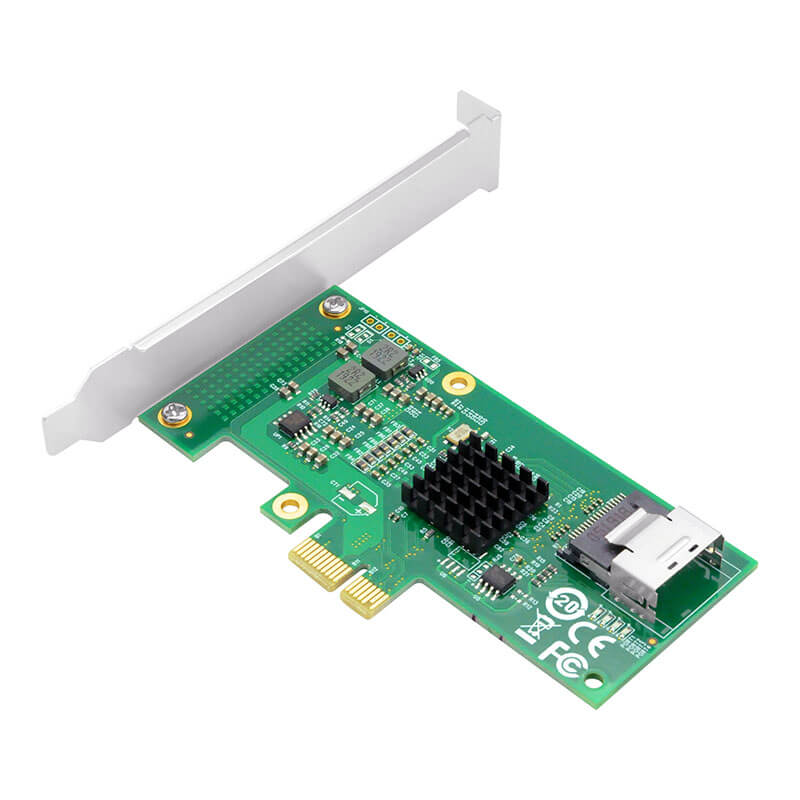

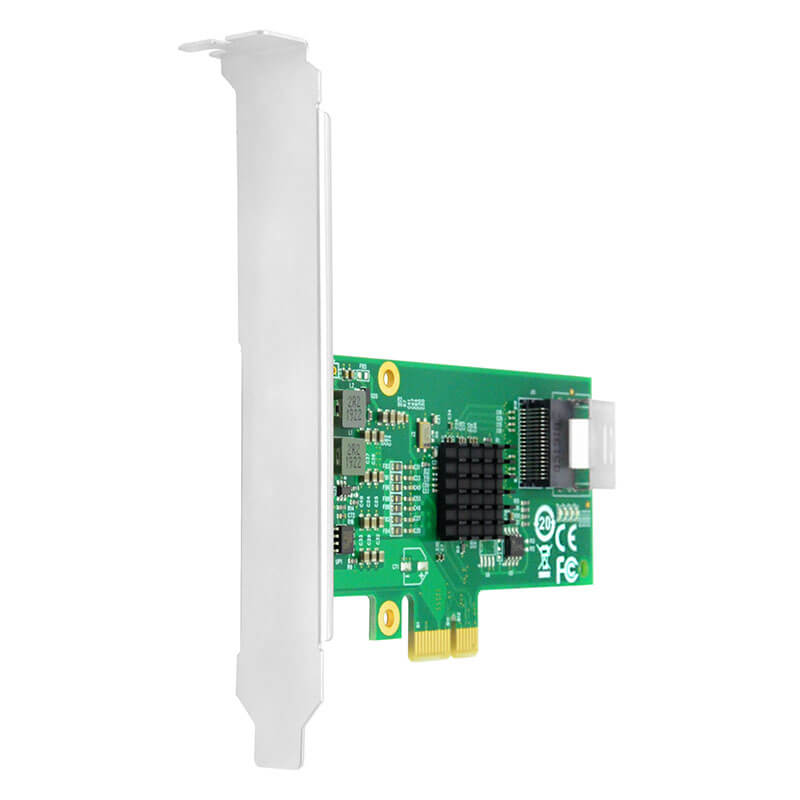

4 Port 6Gb/s PCIe x1 to SATA 3 RAID Card HBA 9230-4I X1
4 Port 6Gb/s PCIe x1 to SATA 3 RAID Card HBA 9230-4I X1
Couldn't load pickup availability
HBA 9230-4I X1
● Controller: Marvell 88SE9230 (SATA 6Gb/s RAID Controller)
● Ports: 4x SATA 6Gb/s Ports (SFF-8087 internal breakout)
● Interface: PCIe 2.0 x1
● Bracket Height: Low profile
● Cabling: Mini SAS SFF-8087 to SATA breakout
Download
Features
- Supports up to 4 SATA HDDs or SSDs
- Based on Marvell 88SE9230 SATA RAID controller chipset
- PCIe 2.0 x1 low-bandwidth storage expansion design
- SATA III 6Gb/s per channel for standard storage devices
- Supports basic hardware RAID 0 / 1 (firmware-based RAID engine)
- Compact entry-level storage expansion for desktop and small NAS systems

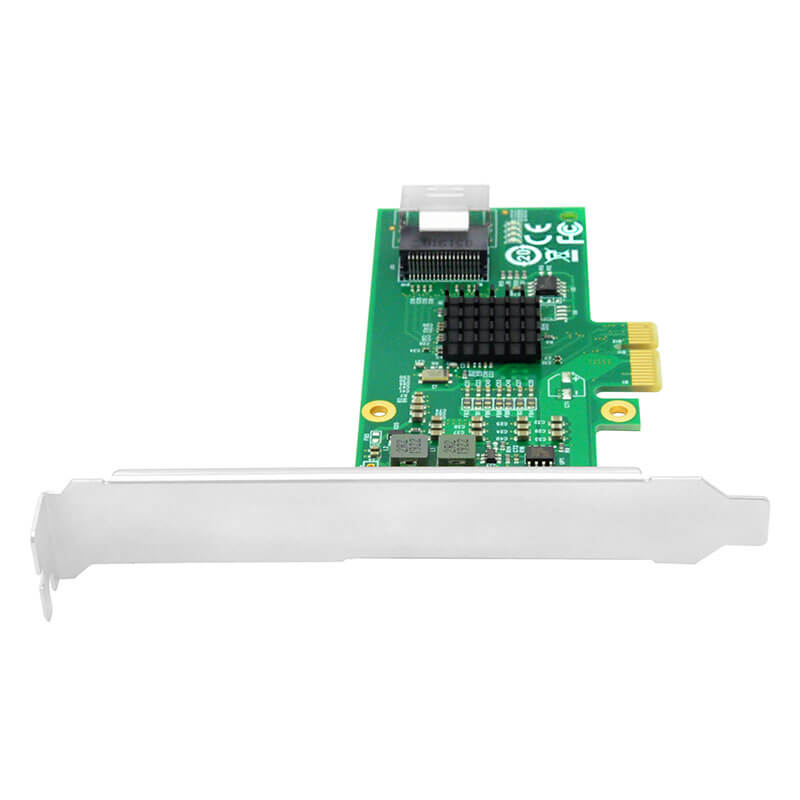

- Low-profile bracket design for small form factor chassis
Technical Parameters
| Item | Specifications |
|---|---|
| Product Model | HBA 9230-4I X1 |
| Product Type | SATA RAID / Storage Expansion Card |
| Vertical Segment | Entry-level Desktop / NAS / Storage |
| Controller | Marvell 88SE9230 |
| Host Interface | PCI Express 2.0 x1 |
| SATA Interface Speed | 6Gb/s SATA |
| Ports | 4x SATA (via SFF-8087 breakout) |
| Supported Devices | Up to 4 SATA HDDs or SSDs |
| SAS Support | Not supported |
| Card Mode | RAID / AHCI (firmware-based) |
| RAID Support | RAID 0 / 1 |
| Cable Type | SFF-8087 to 4× SATA breakout cable |
| Bracket Height | Low profile |
| Cooling | Passive heatsink |
| UEFI Support | Yes |
| Supported Operating Systems | Windows / Linux / VMware / FreeBSD / NAS systems |
| Driver Support | Marvell 88SE9230 native driver support |
