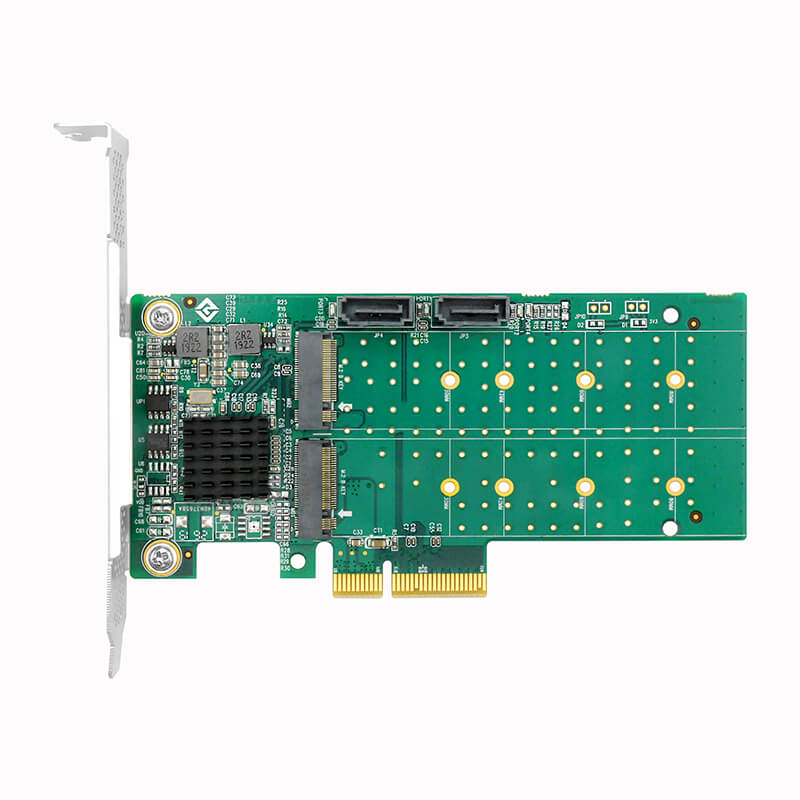

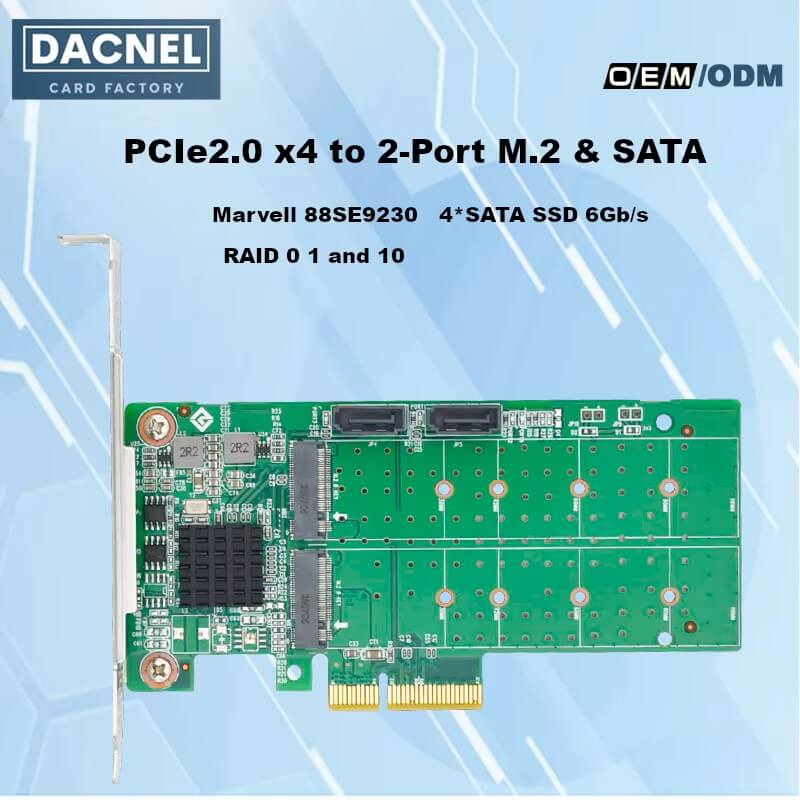

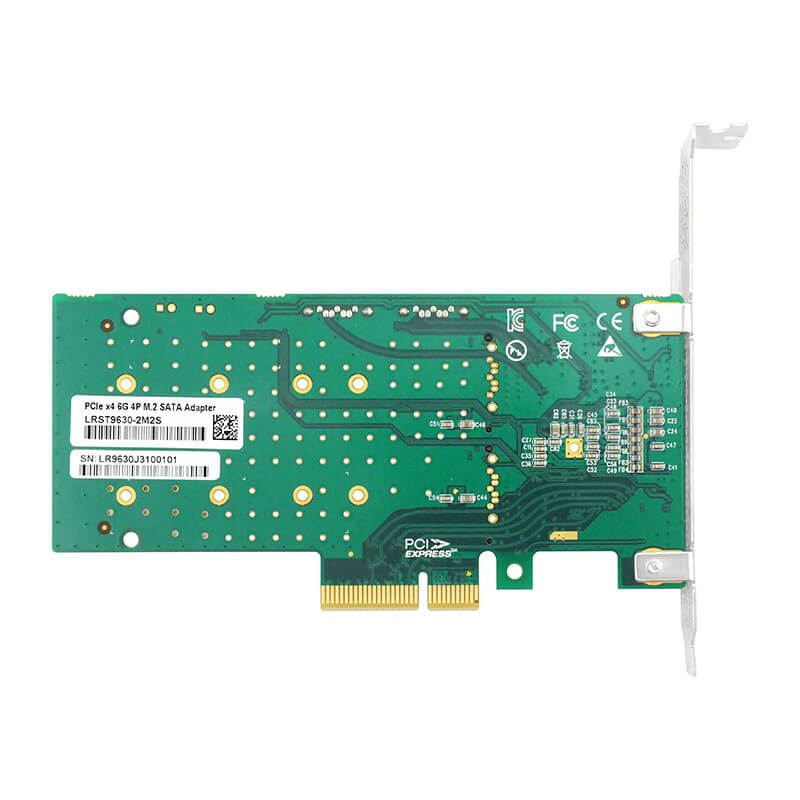

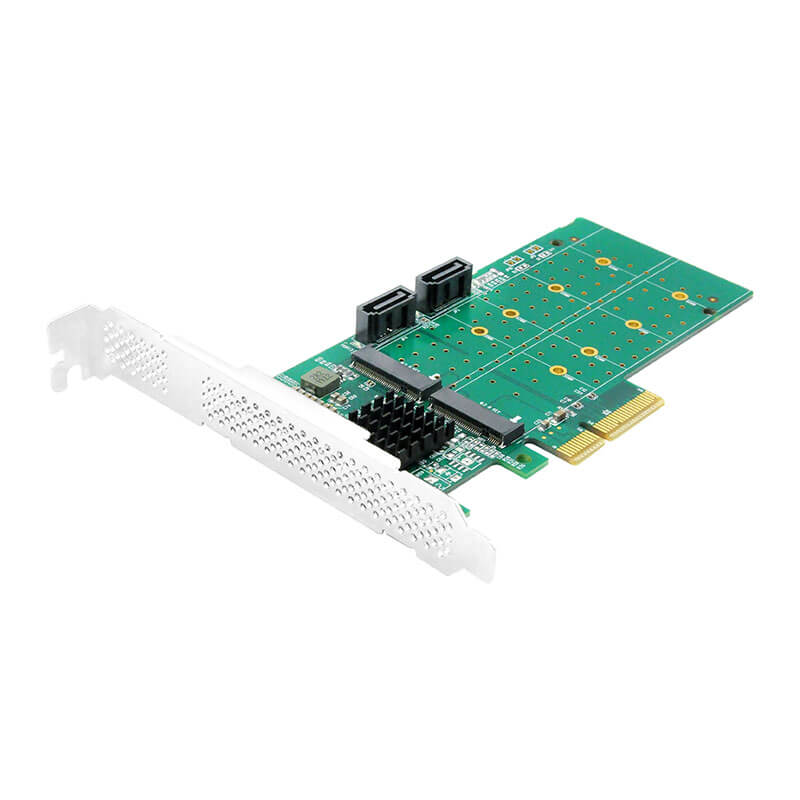

Dual 6Gb/s PCIe x4 to M.2 SATA3 RAID Controller Card-HBA 9230-2M2S

Dual 6Gb/s PCIe x4 to M.2 SATA3 RAID Controller Card-HBA 9230-2M2S

$68.00 USD
$68.00 USD $68.00 USD
Sale
Shipping calculated at checkout.

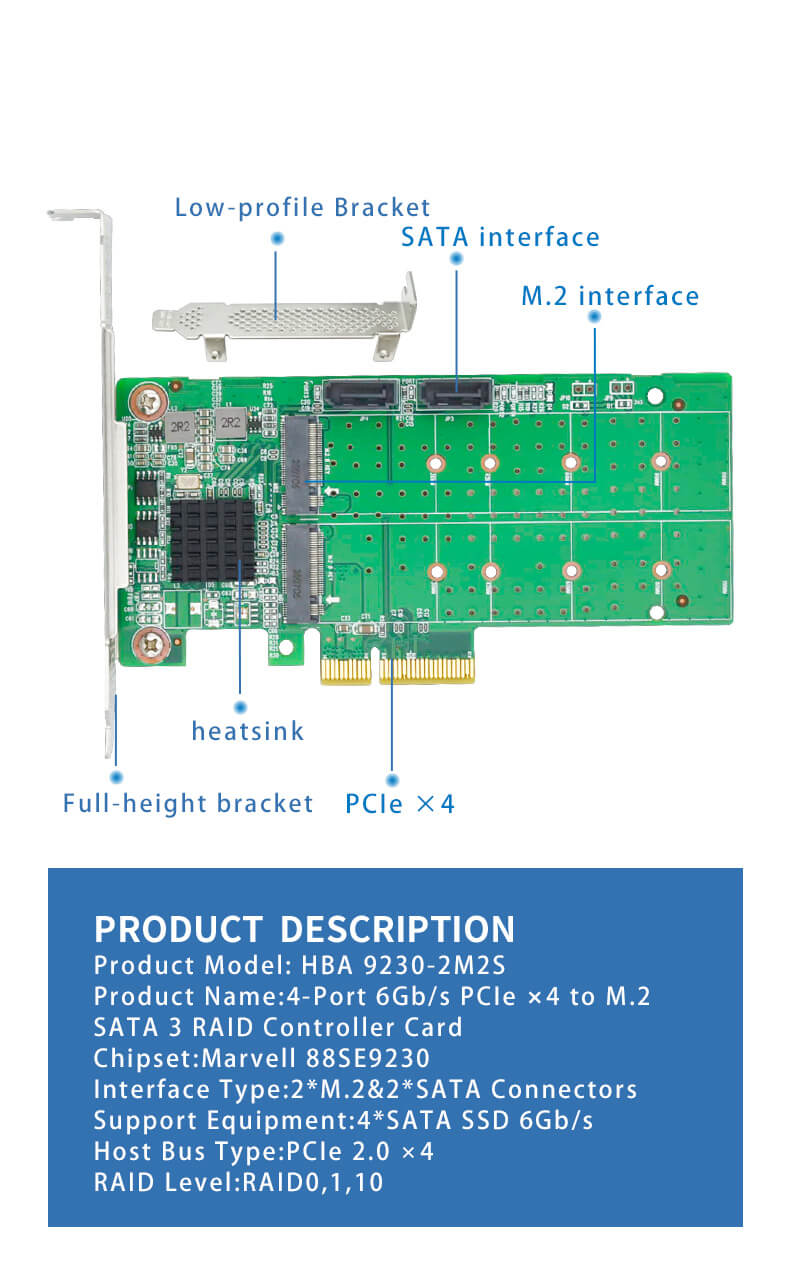

HBA 9230-2M2S

● Controller: Marvell 88SE9230 (SATA 6Gb/s RAID Controller)
● Ports: 2x M.2 SATA Slots + 2x SATA Ports
● Interface: PCIe 2.0 x4
● Bracket Height: Full height and low profile
● Cabling: Direct M.2 + SATA connectors

Download

Marvell 9230 RAID Document

Marvell 88SE9230 RAID Rebuild

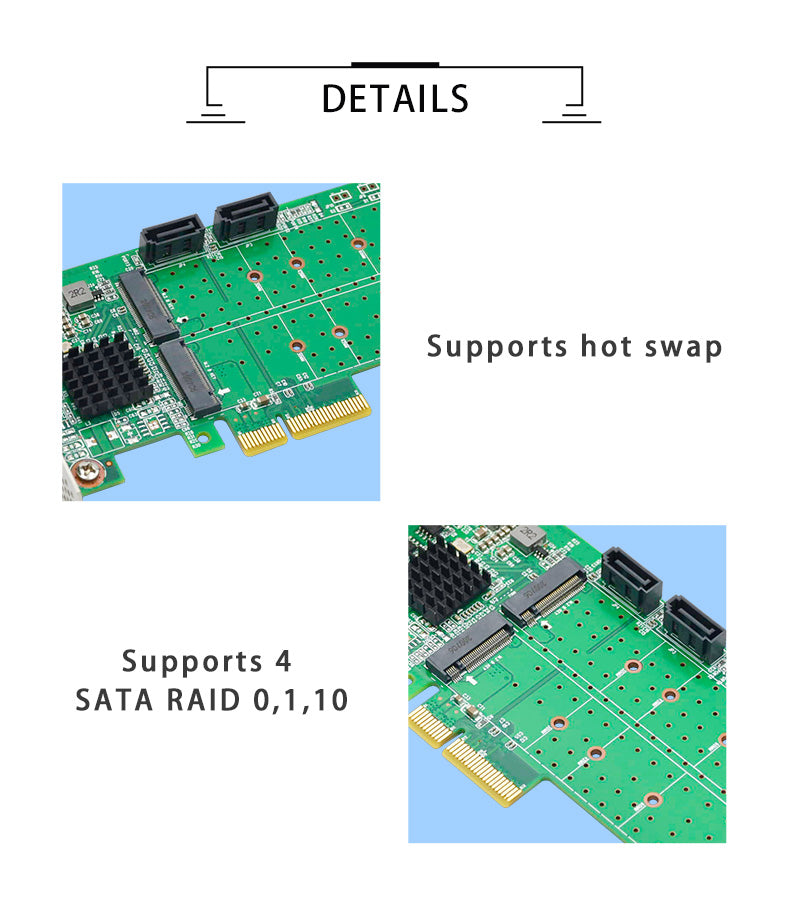

Features

  • Supports 2× M.2 SATA SSD + 2× SATA HDD/SSD devices
  • PCIe 2.0 x4 host interface for multi-device SATA expansion
  • Based on Marvell 88SE9230 SATA RAID controller chipset
  • SATA III 6Gb/s per channel for standard storage performance
  • Supports hardware RAID 0 / 1 (firmware-based RAID engine)
  • Hot-swap and AHCI-compatible SATA architecture
  • Suitable for desktop, entry NAS and light server storage expansion

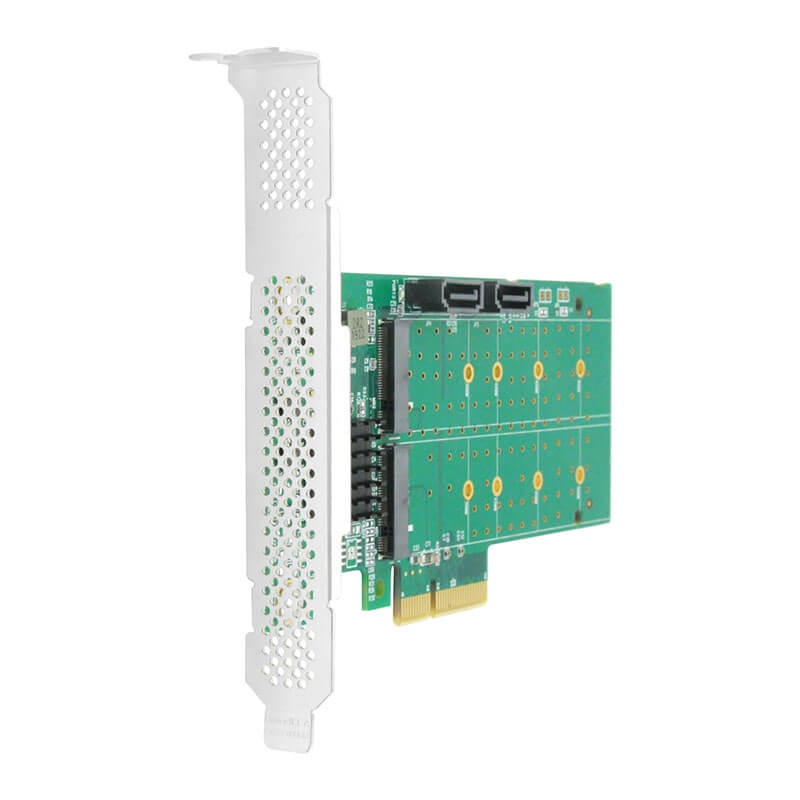

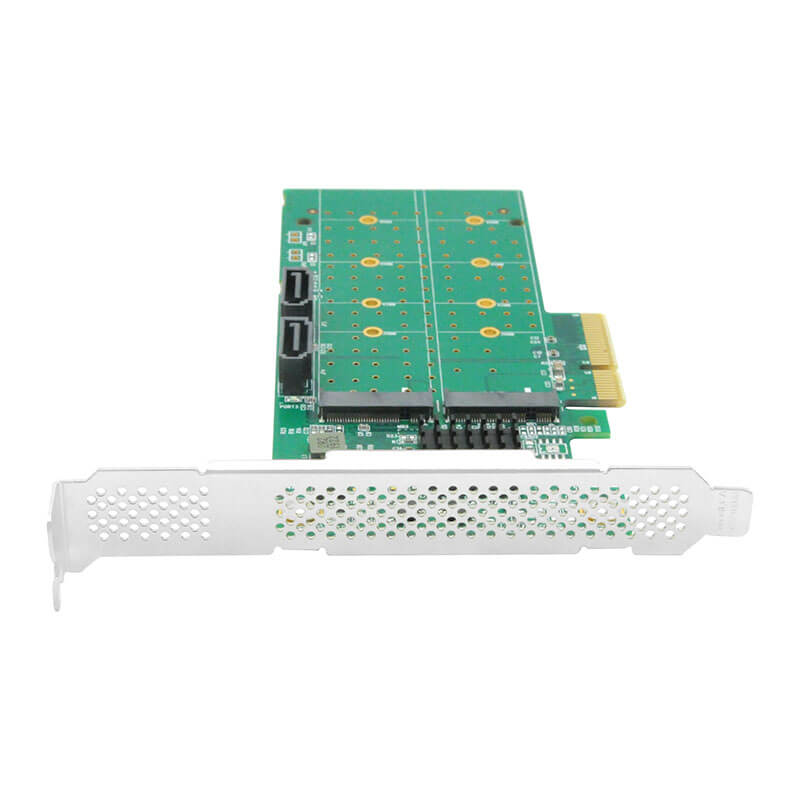

  • Includes full-height and low-profile brackets for flexible installation

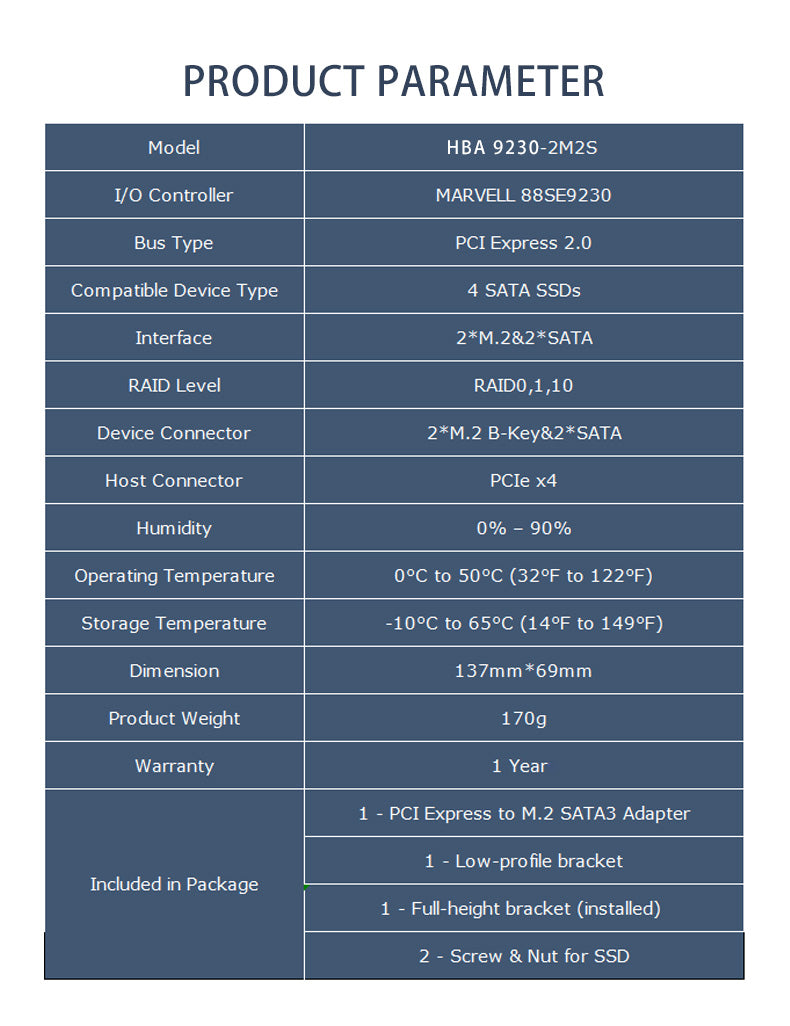

Technical Parameters

Item Specifications
Product Model HBA 9230-2M2S
Product Type SATA RAID / Storage Expansion Card
Vertical Segment Desktop / Entry NAS / Storage
Controller Marvell 88SE9230
Host Interface PCI Express 2.0 x4
SATA Interface Speed 6Gb/s SATA
Ports 2x M.2 SATA + 2x SATA
Supported Devices Up to 4 SATA/M.2 SATA SSDs or HDDs
SAS Support Not supported
Card Mode RAID / AHCI (firmware-based)
RAID Support RAID 0 / 1
Cable Type Direct SATA + onboard M.2 slots
Bracket Height Full height and low profile
Cooling Passive heatsink
UEFI Support Yes
Supported Operating Systems Windows / Linux / VMware / FreeBSD / NAS systems
Driver Support Marvell 88SE9230 native driver support

OEM/ODM


Streamlined OEM/ODM process from requirement discussion to mass production, with engineering evaluation, prototyping, and full testing to ensure performance and reliability.

ISO-certified manufacturing with strict quality control, 100% testing, and stable global delivery.

Contact us for customization: +86 151 7319 6157 | dacnelcard@gmail.com

Shipping & Returns

Free worldwide shipping with fast processing and full tracking. Secure payments are supported, and a 30-day return policy ensures a worry-free purchase.

Quality Management

Each card is produced using advanced manufacturing processes and a rigorous quality control system. With responsive after-sales support, we ensure reliable performance and complete peace of mind for our customers.

Handling & Care Instructions

To maintain optimal performance and prevent damage, please follow these guidelines:

  • Wear Gloves When Handling:
    Always wear clean gloves when handling the card to prevent sweat and oils from corroding the connectors and affecting performance.
  • Avoid Direct Contact:
    Do not touch the gold fingers or electronic components directly.
  • Keep Dry and Clean:
    Store and operate the card in a dry, dust-free environment to prevent oxidation and contamination.
  • ESD Protection:
    Use proper anti-static measures when installing or removing the card.
