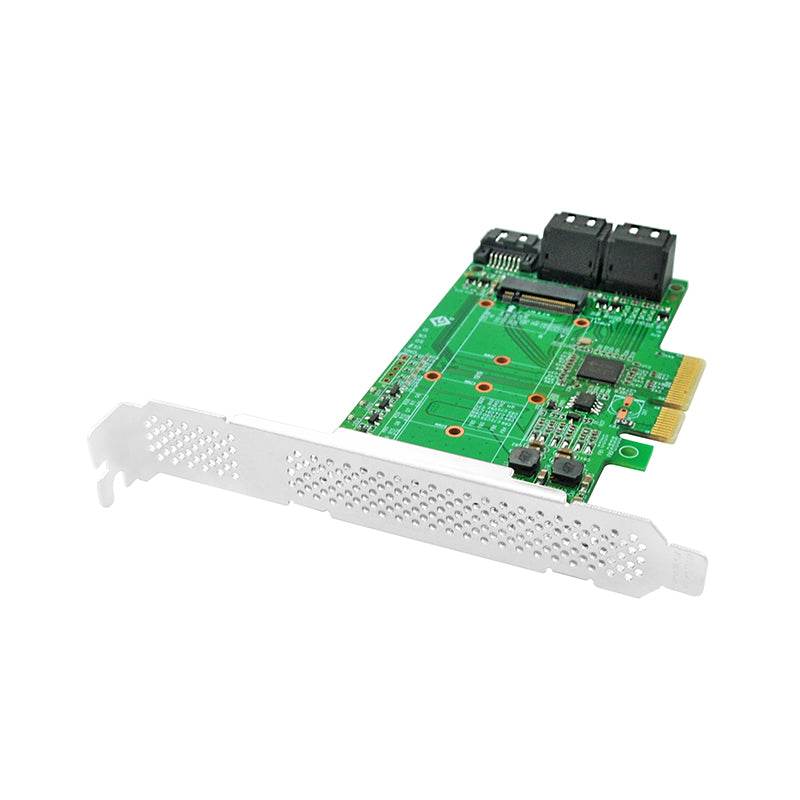

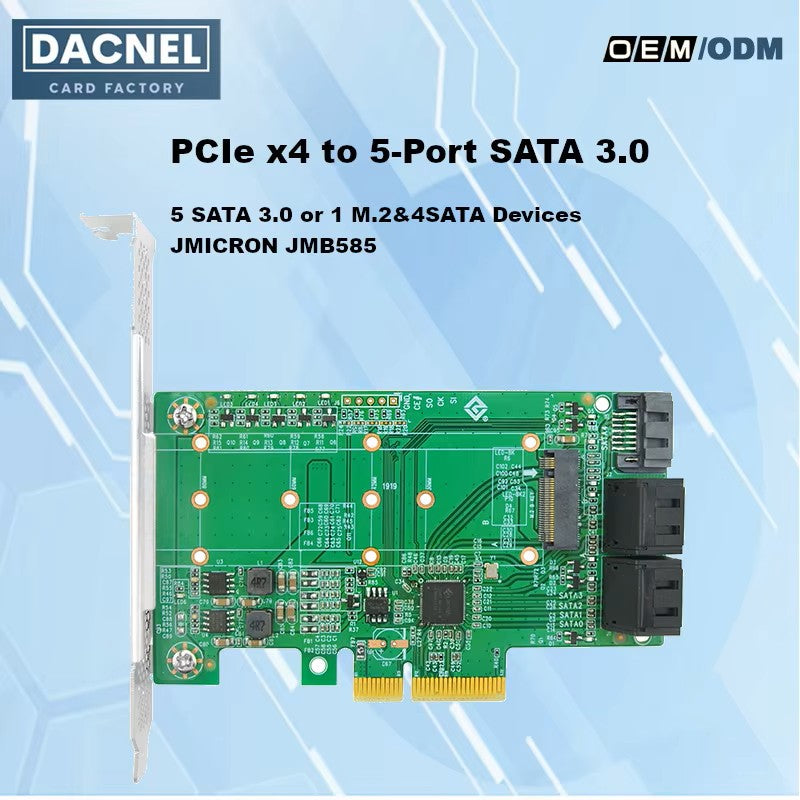

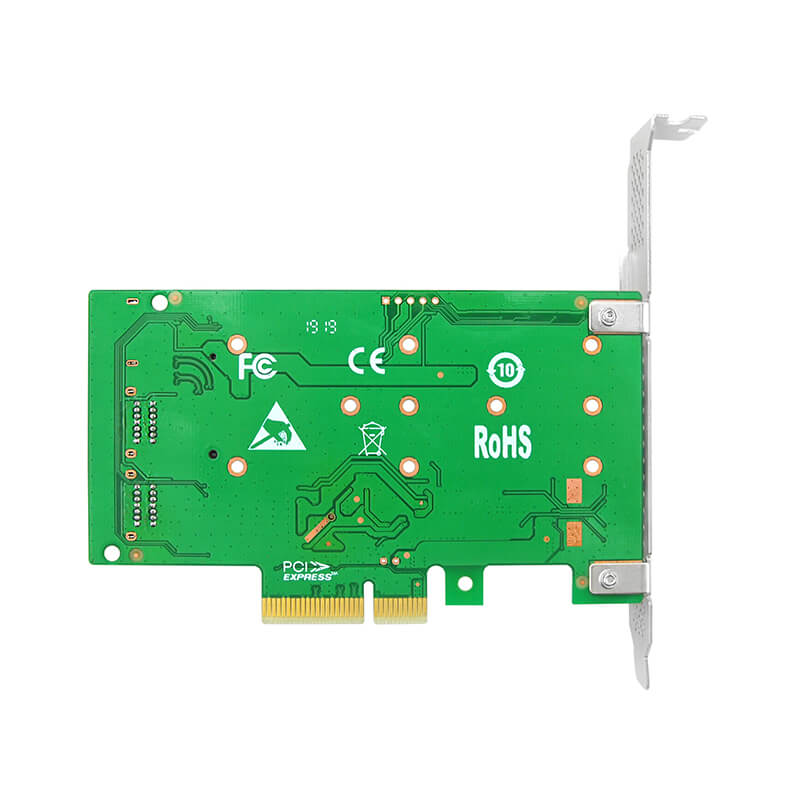

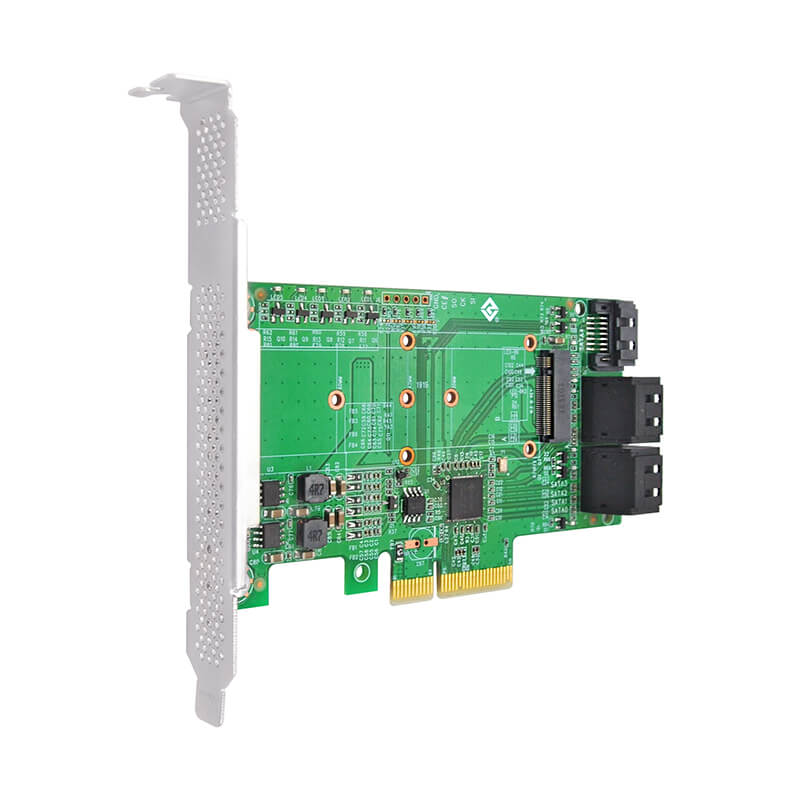

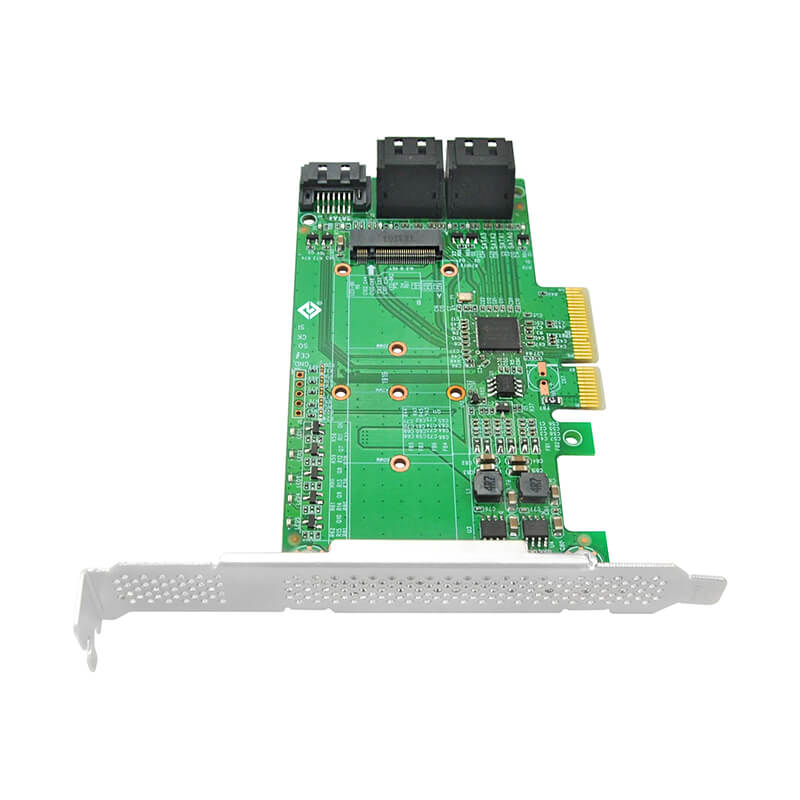

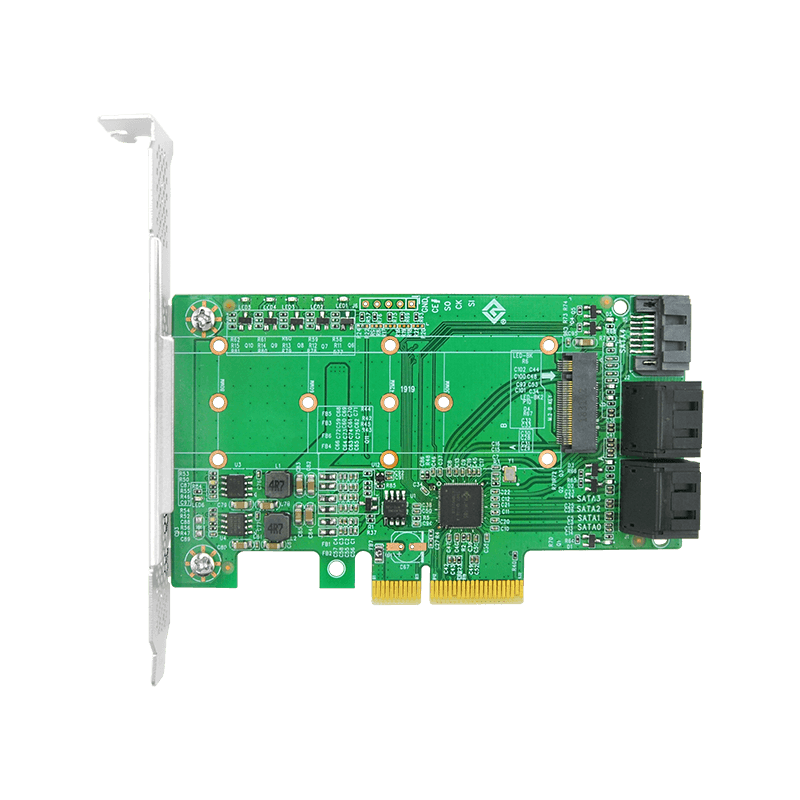

PCIe3.0 x4 to 5 ports SATA 6Gb/s Expansion Card-HBA 585-1M4S
PCIe3.0 x4 to 5 ports SATA 6Gb/s Expansion Card-HBA 585-1M4S
Couldn't load pickup availability
HBA 585-1M4S
● Controller: SATA / NVMe Hybrid Storage Controller
● Ports: 1x M.2 NVMe Slot + 4x SATA Ports
● Interface: PCIe 2.0 x1
● Bracket Height: Low profile
● Cabling: Direct M.2 + SATA connectors
Features
- Supports 1x M.2 NVMe SSD + 4x SATA HDD/SSD
- PCIe 2.0 x1 host interface for basic storage expansion
- Mixed NVMe + SATA hybrid storage design
- SATA III 6Gb/s per port for HDD/SSD compatibility
- Compact entry-level storage expansion solution
- Suitable for small NAS, desktop and lightweight storage systems
- Low-profile bracket design for small form factor systems
Technical Parameters
| Item | Specifications |
|---|---|
| Product Model | HBA 585-1M4S |
| Product Type | Hybrid Storage Expansion Card |
| Vertical Segment | Entry-level Storage / Desktop / NAS |
| Controller | SATA + NVMe Hybrid Controller |
| Host Interface | PCI Express 2.0 x1 |
| NVMe Support | 1x M.2 NVMe SSD |
| SATA Interface Speed | 6Gb/s SATA |
| SATA Ports | 4x SATA III |
| Total Devices Supported | 1x NVMe + 4x SATA |
| SAS Support | Not supported |
| RAID Support | None (software RAID only) |
| Bracket Height | Low profile |
| Cooling | Passive heatsink |
| UEFI Support | Yes |
| Supported Operating Systems | Windows / Linux / VMware / FreeBSD / TrueNAS / UnRAID |
| Driver Support | Native OS storage drivers |
