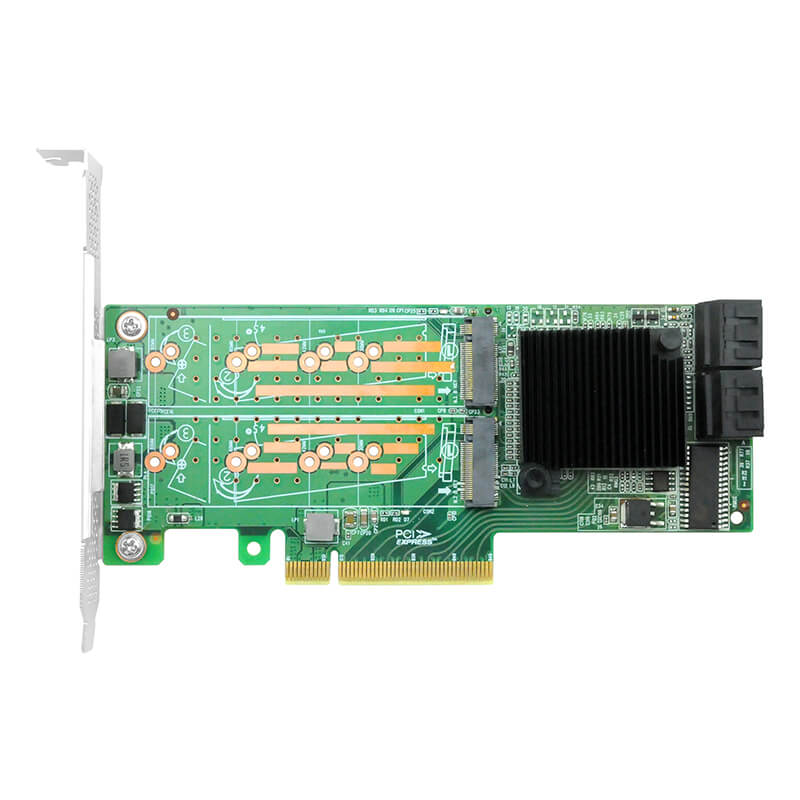

PCIe 2.0 x8 to 8-Port M.2 SATA 3.0 RAID Controller Card-HBA 2008-4M4S
PCIe 2.0 x8 to 8-Port M.2 SATA 3.0 RAID Controller Card-HBA 2008-4M4S
Couldn't load pickup availability
HBA 2008-4M4S

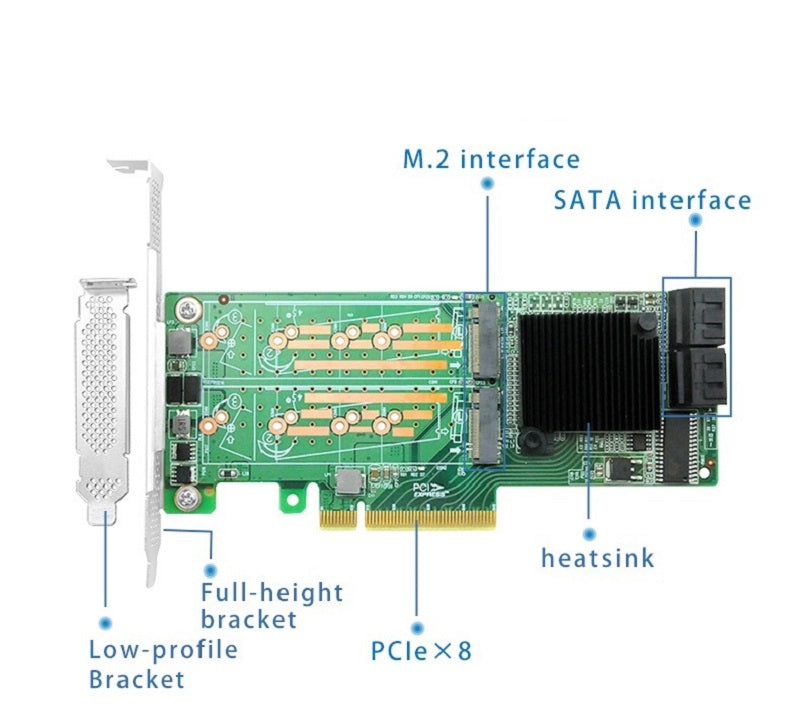

● Controller: LSI SAS 2008 (SAS 2.0 HBA / IR capable)
● Ports: 4x SATA 6Gb/s Ports + 4x M.2 SATA Slots
● Interface: PCIe 2.0 x8

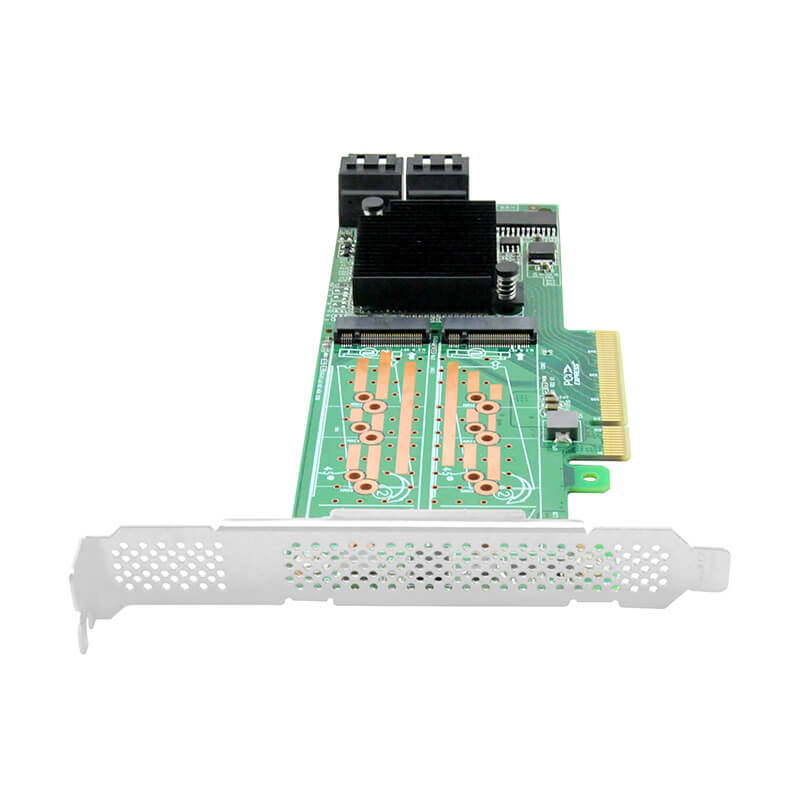

● Bracket: Half-height (Low profile) + Full-height bracket included
● Cabling: Direct SATA + onboard M.2 connectors
Features
- Hybrid storage design supporting 4× SATA + 4× M.2 SATA devices
- Supports up to 8 SATA 6Gb/s storage devices in total
- PCIe 2.0 x8 host interface for stable multi-device bandwidth
- SATA III 6Gb/s per port for HDD and SATA SSD compatibility
- Flexible mixed-form-factor design for compact system integration
- Suitable for NAS, desktop, and entry-level storage expansion systems
- Includes both full-height and low-profile brackets for wide chassis compatibility
- Supports IR firmware mode with basic RAID functionality (optional)
Technical Parameters
| Item | Specifications |
|---|---|
| Product Model | HBA 2008-4M4S |
| Product Type | Hybrid SATA Storage Expansion Card |
| Vertical Segment | Entry-level NAS / Desktop / Storage |
| Controller | LSI SAS 2008 |
| Host Interface | PCI Express 2.0 x8 |
| SATA Interface Speed | 6Gb/s SATA |
| Ports | 4x SATA + 4x M.2 SATA |
| Supported Devices | Up to 8 SATA SSDs or HDDs |
| SAS Support | Not supported |
| Card Mode | HBA / IT Mode (default), IR Mode optional |
| RAID Support | RAID 0 / 1 / 10 (IR firmware mode only) |
| Cable Type | Direct SATA + onboard M.2 slots |
| Bracket Height | Half-height (low profile) + full-height bracket included |
| Cooling | Passive heatsink |
| UEFI Support | Yes |
| Supported Operating Systems | Windows / Linux / VMware / FreeBSD / TrueNAS / UnRAID |
| Driver Support | LSI / Broadcom native driver support |
